描述

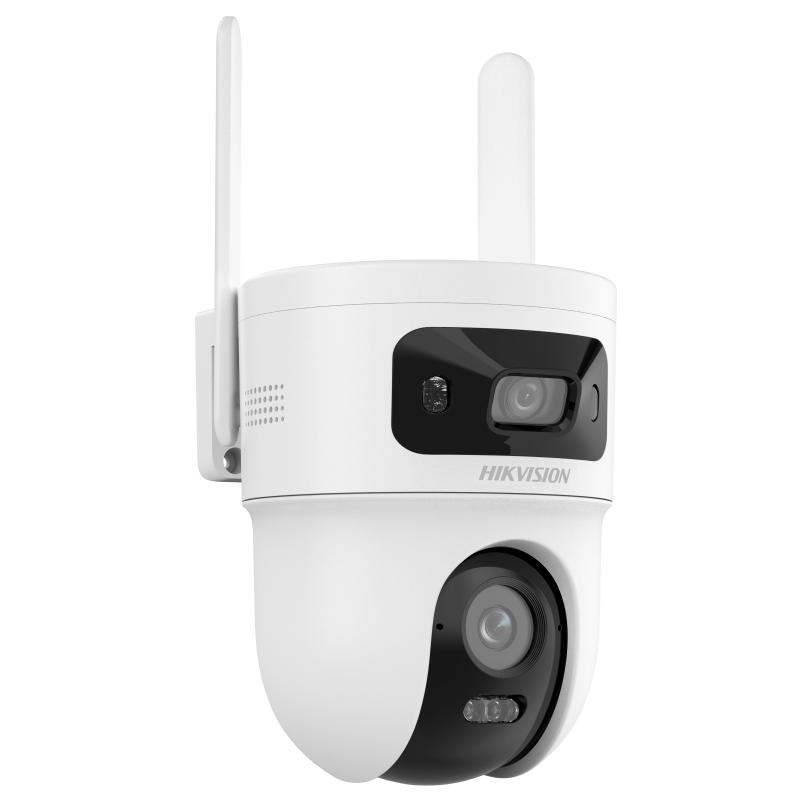

DS-2CFMP8-D/4G
8MP 4G Dual-lens Outdoor PT Camera
DS-2CFMP8-D/4G 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -170° to 170°,tilt: 0° to 80° |
Lens
| Focal Length & FOV | 2.8 mm, horizontal FOV 95.5°, vertical FOV 53.4°, diagonal FOV 110.8° 4 mm, horizontal FOV 73.5°, vertical FOV 39.7°, diagonal FOV 88° |
|---|---|
| Lens Type | Fixed focal lens Bullet channel: 2.8 mm PT channel: 4 mm |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Iris Type | Fixed |
Pixel Density
| O2DCPVS | 2.8 mm, O: 77.6 m, O: 38.8 m, D: 19.4 m, P: 12.4 m , C: 6.2 m, V: 3.1 m, S: 1 m 4 mm, O: 102.6 m, O: 51.3 m, D: 25.7 m, P: 16.4 m , C: 8.2 m, V: 4.1 m, S: 1.4 m |
|---|
Illuminator
| Supplement Light Type | IR,White Light |
|---|---|
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
Video
| Main Stream | Channel 1: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | Channel 1: 50 Hz: 12.5 fps (768 x 432) 60 Hz: 15 fps (768 x 432) Channel 2: 50 Hz: 12.5 fps (768 x 432) 60 Hz: 15 fps (768 x 432) |
| Video Compression | Main stream: H.265, Sub-stream: H.265 |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.265 encoding |
Audio
| Audio Type | Mono sound |
|---|---|
| Audio Compression | G.711/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 16 KHz |
| Environment Noise Filtering | Yes |
Network
| Protocols | HTTP, ICMP, DNS, HTTPS, NTP, TCP/IP, IPv4, DHCP, SSL/TLS, RTP, RTSP, UDP, IGMP, QoS |
|---|---|
| API | EZVIZ |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Client | Hik-Connect |
Mobile Communication
| Standard | LTE-FDD |
|---|---|
| Frequency | EU: LTE-FDD: B1/3/5/7/8/20/28 |
| Uplink and Downlink Data Rate | Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps |
| SIM Card Type | Nano SIM |
| Image Settings | brightness,contrast,sharpness,gain,white balance,saturation |
|---|---|
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 rectangular privacy masks |
| SNR | ≥ 52 dB |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes,1 built-in microphone |
| Reset Key | Yes |
| Built-in Speaker | Yes, 1 built-in speaker |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),exception |
|---|---|
| Linkage | notify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card |
General
| Power | 12 V, 1.5 A, max. 18 W |
|---|---|
| Material | Plastic |
| Dimension | 110.8 mm × 145.4 mm × 152.2 mm (4.36" × 5.73" × 5.99") |
| Package Dimension | 185 mm × 145 mm × 198 mm (7.28" × 5.71" × 7.80") |
| With Package Weight | Approx. 1040 g (2.29 lb.) |
| Startup and Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 70% or less (non-condensing) |
| Language | English |
| Flashing Light | NA |
Approval
| RF | CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G) |
|---|---|
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
