描述

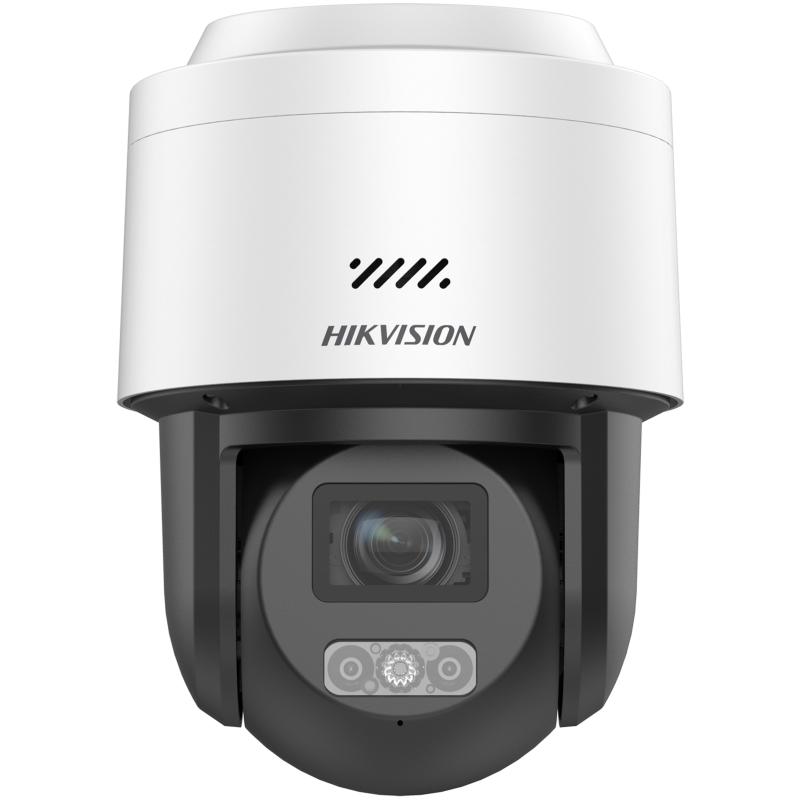

DS-2DE3C204MWG1H-E
2 MP 4X Smart Hybrid Light AI-ISP Mini PTZ Network Camera
DS-2DE3C204MWG1H-E 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.01 Lux @ (F1.5, AGC ON),B/W: 0.005 Lux @ (F1.5, AGC ON),0 Lux with IR |
| Shutter Speed |
1 s to 1/30,000 s |
| Slow Shutter |
Yes |
| Day & Night |
ICR |
| Zoom |
4 × optical,16 × digital |
| Max. Resolution |
1920 × 1080 |
Lens
| Focus |
auto,manual,semi-auto |
| Focal Length |
2.8 to 12 mm |
| Zoom Speed |
Approx. 3.3 s |
| FOV |
Horizontal field of view: 93.5° to 29.1°, vertical field of view: 49.2° to 16.4°, diagonal field of view: 111.9° to 33.4° |
| Aperture |
Max. F1.5 |
Illuminator
| Supplement Light Type |
IR,White Light |
| Smart Supplement Light |
Yes |
| Supplement Light Range |
White light distance: up to 30 m,IR distance: up to 40 m |
PTZ
| Movement Range (Pan) |
0° to 350° |
| Movement Range (Tilt) |
0° to 90° |
| Pan Speed |
Pan speed: configurable from 1° to 35°/s, preset speed: 35°/s |
| Tilt Speed |
Tilt speed: configurable from 1° to 30°/s, preset speed 30°/s |
| Proportional Pan |
Yes |
| Presets |
300 |
| Patrol Scan |
8 patrols, up to 32 presets for each patrol |
| Power-off Memory |
Yes |
| Park Action |
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
| 3D Positioning |
Yes |
| PTZ Status Display |
Yes |
| Scheduled Task |
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust |
Video
| Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Region of Interest (ROI) |
1 fixed regions for each stream |
| Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Video Compression |
H.265,H.264,MJPEG |
| Video Bit Rate |
32 kbps to 16384 kbps |
| H.264 Type |
main profile,baseline profile,high profile |
| H.265 Type |
main profile |
| Scalable Video Coding (SVC) |
Yes |
Audio
| Audio Compression |
G.711,G.722.1,G.726,MP2L2,PCM,AAC,MP3 |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw),8 to 160 Kbps (MP3),32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),16 Kbps (G.726) |
| Audio Sampling Rate |
8 kHz,16 kHz |
| Environment Noise Filtering |
Yes |
Network
| API |
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Network Storage |
NAS (NFS, SMB/ CIFS), ANR |
| Protocols |
TCP/IP,ICMP,HTTP,FTP,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,QoS,IPv6,WebSockets,SSL/TLS,WebSocket,UDP |
| Simultaneous Live View |
Up to 6 channels |
| User/Host |
32 |
| Security |
complicated password,Password protection,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,basic and digest authentication for HTTP/HTTPS,control timeout settings,security audit log |
| Client |
iVMS-4200,Hik-Connect |
| Web Browser |
Chrome80+，Firefox80+，Safari13+，Edge89 |
| Image Settings |
contrast,gain,saturation,sharpness,brightness,white balance,adjustable by client software or web browser |
| SNR |
≥ 52 dB |
| Defog |
Digital defog |
| Day/Night Switch |
day, night, auto, scheduled-switch |
| Image Enhancement |
BLC,HLC,3D DNR |
| Privacy Mask |
24 programmable polygon privacy masks |
| Regional Focus |
Yes |
| Regional Exposure |
Yes |
| Image Parameters Switch |
Yes |
Interface
| Built-in Microphone |
1 built-in microphone |
| Built-in Speaker |
1 built-in speaker |
| Ethernet Interface |
RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB |
| Reset |
Yes |
Event
| Basic Event |
exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),Motion detection,video tampering alarm,audio exception detection |
| Smart Event |
Line crossing detection,intrusion detection,region entrance detection,region exiting detection,loitering detection,people gathering detection,fast moving detection,parking detection,unattended baggage detection,object removal detection |
| Linkage |
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,white light flashing,audible warning,smart tracking |
Deep Learning Function
| Face Capture |
Detects up to 5 faces simultaneously, Uploads face with background and closed-up face pictures |
Linkage and Tracking
General
| General Function |
mirror,password protection,watermark,IP address filter |
| Power |
12 VDC, max.14W, PoE+ |
| Operating Condition |
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Material |
PC+10%GF,ADC12 |
| Dimension |
227.8 mm × 218.4 mm × 154.9 mm (8.97" × 8.60" × 6.10") |
Approval
| Protection |
IP66 (IEC 60529-2013) |
