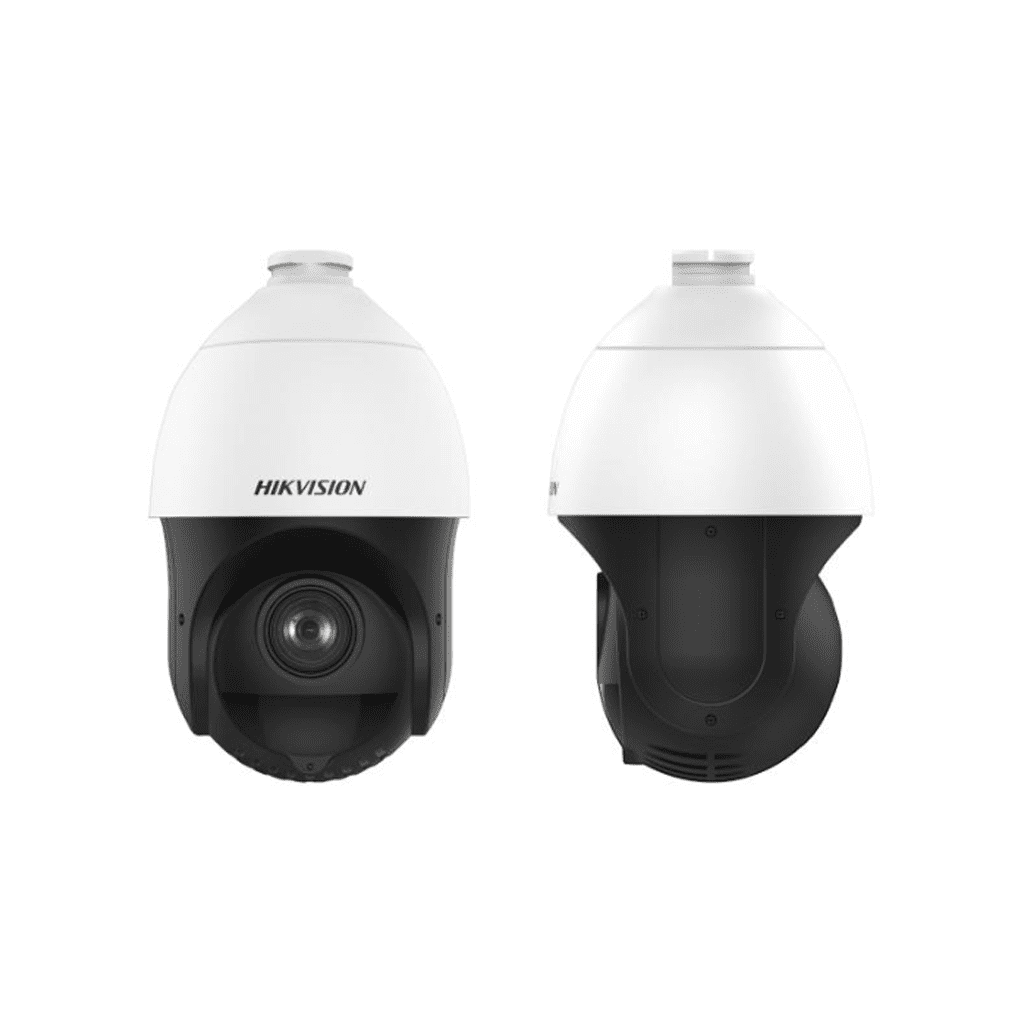

HIKVISION DS-2DE4225IW-DE(S5)
4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome
Features
- Accurate human and vehicle target classification and alarm based on deep learning algorithm
- Support face capture. Up to 5 faces captured at the same time
- 1/2.8″ Progressive Scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination: Color: 0.005Lux @ (F1.6，AGC ON),B/W: 0.001Lux @(F1.6，AGC ON),0 Lux with IR
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus
- Up to 100m IR distance
- 12VDC & POE(802.3at)
- Support H.265+/H.265 video compression
Specifications
| Camera | |
| Image Sensor | 1/2.8＂ progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0 Lux with IR,color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON) |
| Shutter Speed | 1/1s-1/30000s |
| Day & Night | ICR |
| Zoom | 16x |
| Slow Shutter | yes |
| Optical Zoom | 25x |
| Image | |
| Image Settings | saturation||brightness||contrast||sharpness |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ＞52dB |
| Defog | yes |
| Image Stabilization | EIS |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | up to 24 masks||polygon region ||mosaic mask ||mask color configurable |
| Regional Focus | yes |
| Regional Exposure | yes |
| General | |
| Power | 12 VDC,PoE(802.3at) |
| Dimension | Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″) |
| Weight | Approx. 2 kg (4.41 lb) |
| Material | ADC 12, PC, PC+10% GF |
| Operating Condition | humidity lower than 90%RH ||temperature: -30℃ to 65℃ (-22°F to 149°F) |
| Power Consumption and Current | Max. 24 W, including max. 9 W for supplement light |
