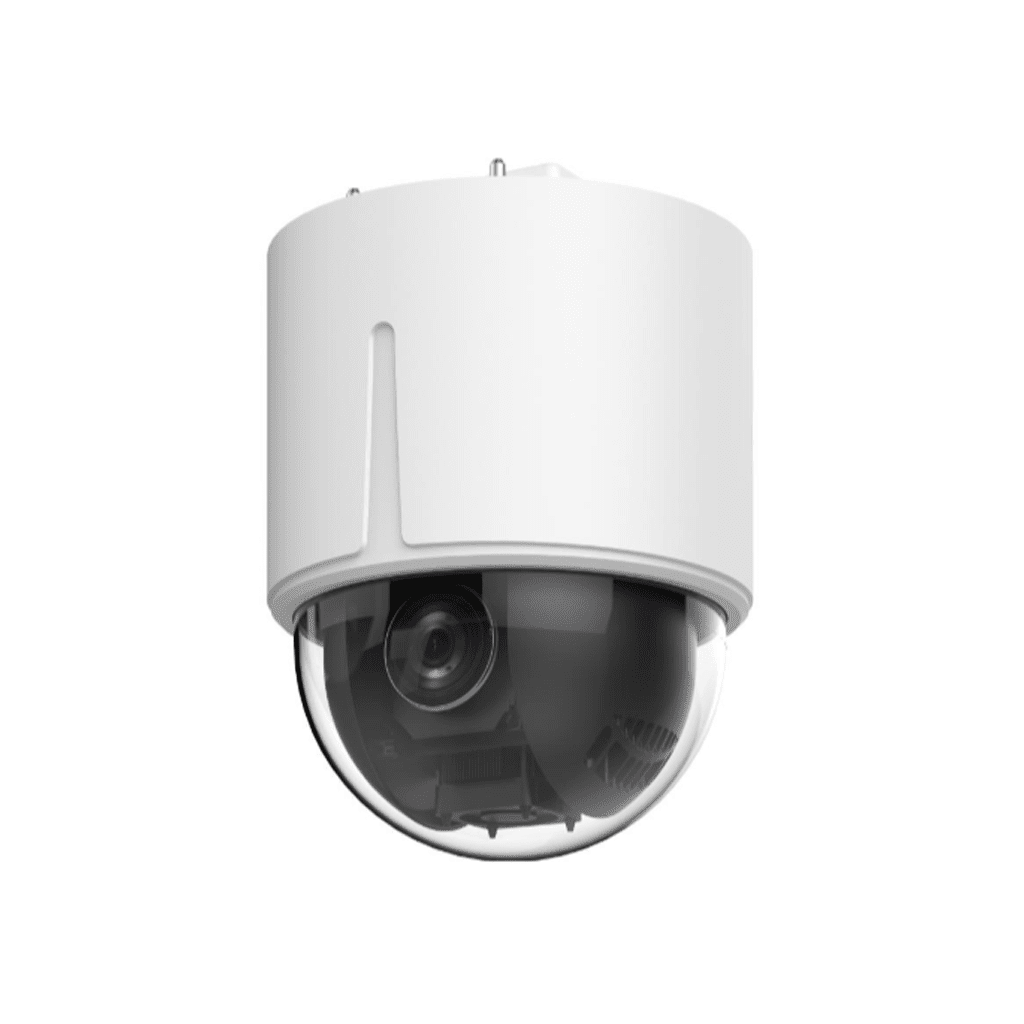

HIKVISION DS-2DE5225W-AE3(T5)
2 MP 25X Powered by DarkFighter Network Speed Dome
Features
- 1/2.8″ Progressive Scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- 24 VAC & PoE (802.3at)
- Efficient H.265+/H.265 compression technology
Specifications
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 25x optional, 16x digital |
| Slow Shutter | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ＞52 dB |
| Defog | Digital Defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| General | |
| Power | 24 VAC, Max. 20 W; PoE (802.3at) |
| Dimension | Embedded：Ø 245mm×239mm（Ø 9.6″ × 9.4\”） Indoor：Ø 183mm×246mm（Ø 7.2 × 9.7\”）” |
| Weight | Approx. 3.0 kg (6.61 lb.) |
| Material | Metal |
| Operating Condition | -10°C to 50°C (14°F to 122°F)，Humidity 90% or less (non-condensing) |
