描述

海康威視 DS-2DE7A232IW-AEB(T5) 是 7 吋 2MP 32 倍 DarkFighter 紅外網絡快球，1/2.8 吋 CMOS，設聲光警報，可由指定事件觸發白光閃燈及警報聲。香港防盜為安裝商及經銷商，規格以原廠為準。

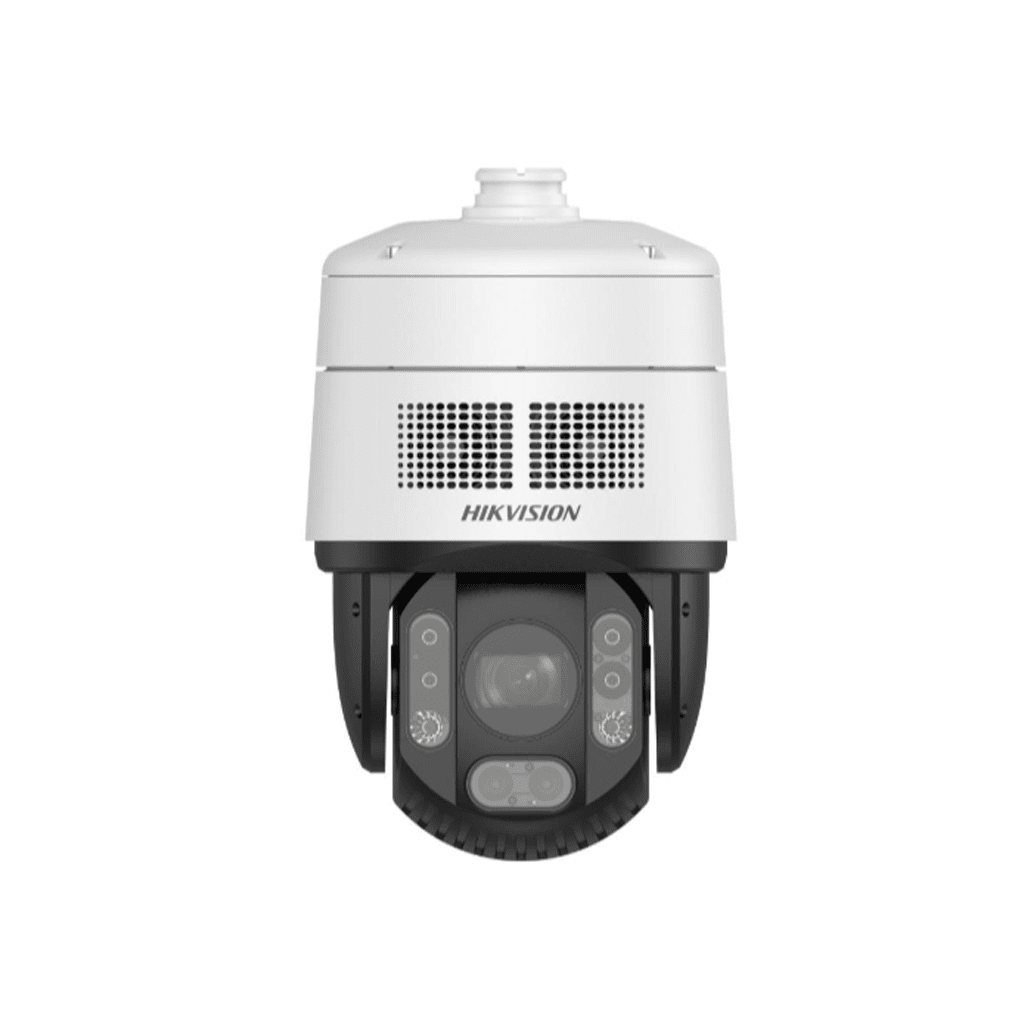

HIKVISION DS-2DE7A232IW-AEB(T5)

7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

1/2.8″ progressive scan CMOS
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
32× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

Camera
Image Sensor	1/2.8″ progressive scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/1 s to 1/30000 s
Day & Night	IR cut filter
Zoom	32x optical, 16x digital
Slow Shutter	Yes
DORI	Detect (25px/m): 2046.9 m Observe (63px/m): 812.3 m Recognize (125px/m): 409.4 m Identify (250px/m): 204.7 m
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	> 52 dB
Defog	Digital defog
Image Stabilization	EIS
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus	Yes
Regional Exposure	Yes
General
Power	24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoE
Dimension	Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″) Approx. 5 kg (11.03 lb.)
Material	ADC12
Operating Condition	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist	Yes
