描述
海康威視 DS-2DF3C400SCG-D 是 3C 系列 4MP 水位偵測網絡快球，24 小時彩色影像，以毫米波雷達量度水位（距離 0.15 至 15／40 米，精度 ±1 mm），可選 4G 及低功耗設計，IP67。香港防盜為安裝商及經銷商，規格以原廠為準。

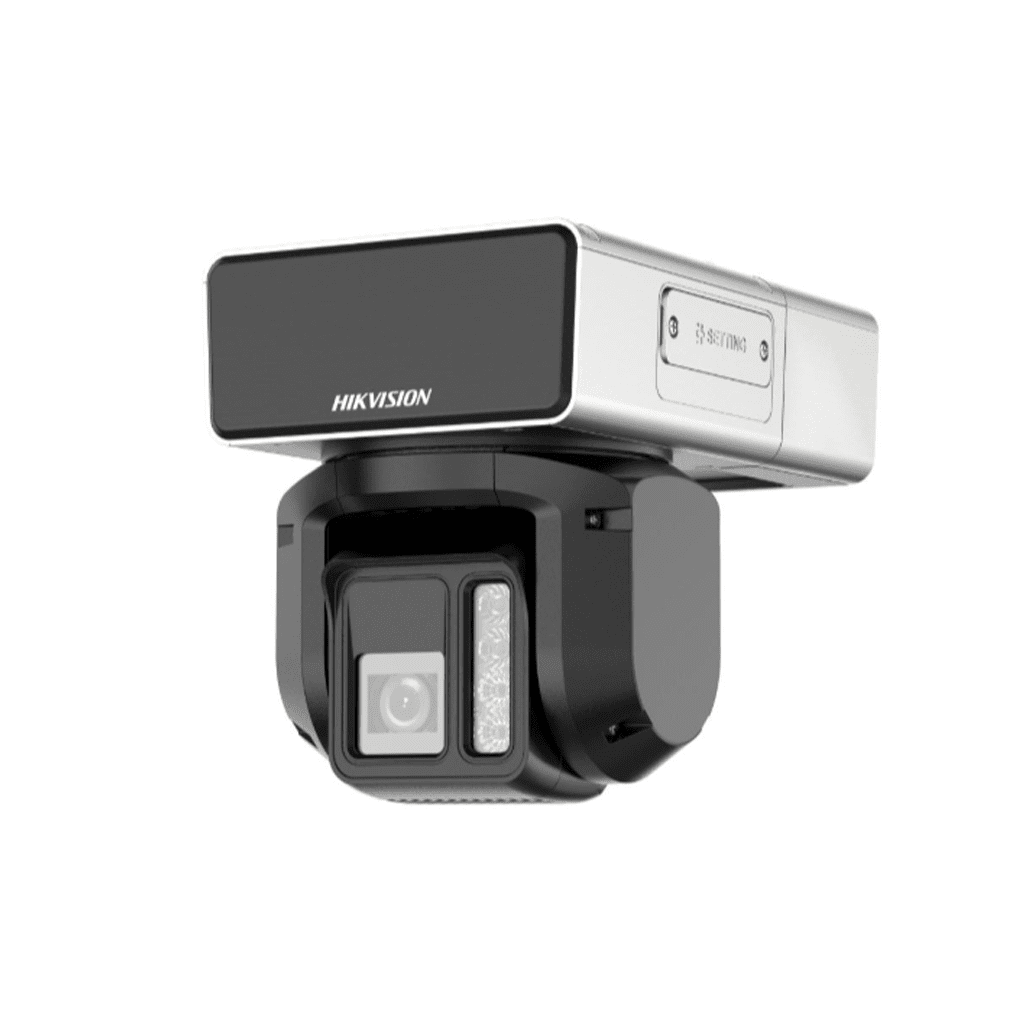

HIKVISION DS-2DF3C400SCG-D(/4G)(/WL15 WL40)(F1)
3C Series 4MP Water-Level Detection Network Speed Dome
Features
- 24/7 colorful imaging
- High quality imaging with 4 MP resolution
- Clear imaging against strong back lighting thanks to 120 dB WDR technology
- 30m white light distance
- Water and dust resistant (IP67)
- Supports 4G and low power consumption design. The lowest power consumption is less than 1 W.
- Supports water level detection with millimeter wave radar. The detection distance ranges from 0.15 m to 15 m/40 m, and the precision reaches to ±1 mm
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Speed | 1/1 s to 1/30000 s |
| Slow Shutter | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain |
| Day/Night Switch | Day,night,auto,schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Exposure | Yes |
| General | |
| Power | 12 VDC ± 25%, max. 21 W |
| Dimension | 145 mm × 182 mm × 232 mm (5.7″ × 7.16″ × 9.13″) |
| Weight | Approx. 1.8 kg (3.97 lb.) |
| Material | ADC12 |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Heater | Yes |
| Wiper | No |
| Demist | Yes |
