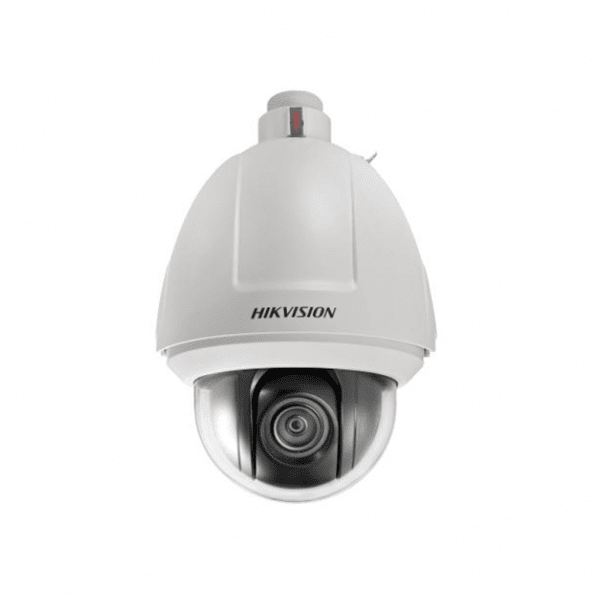

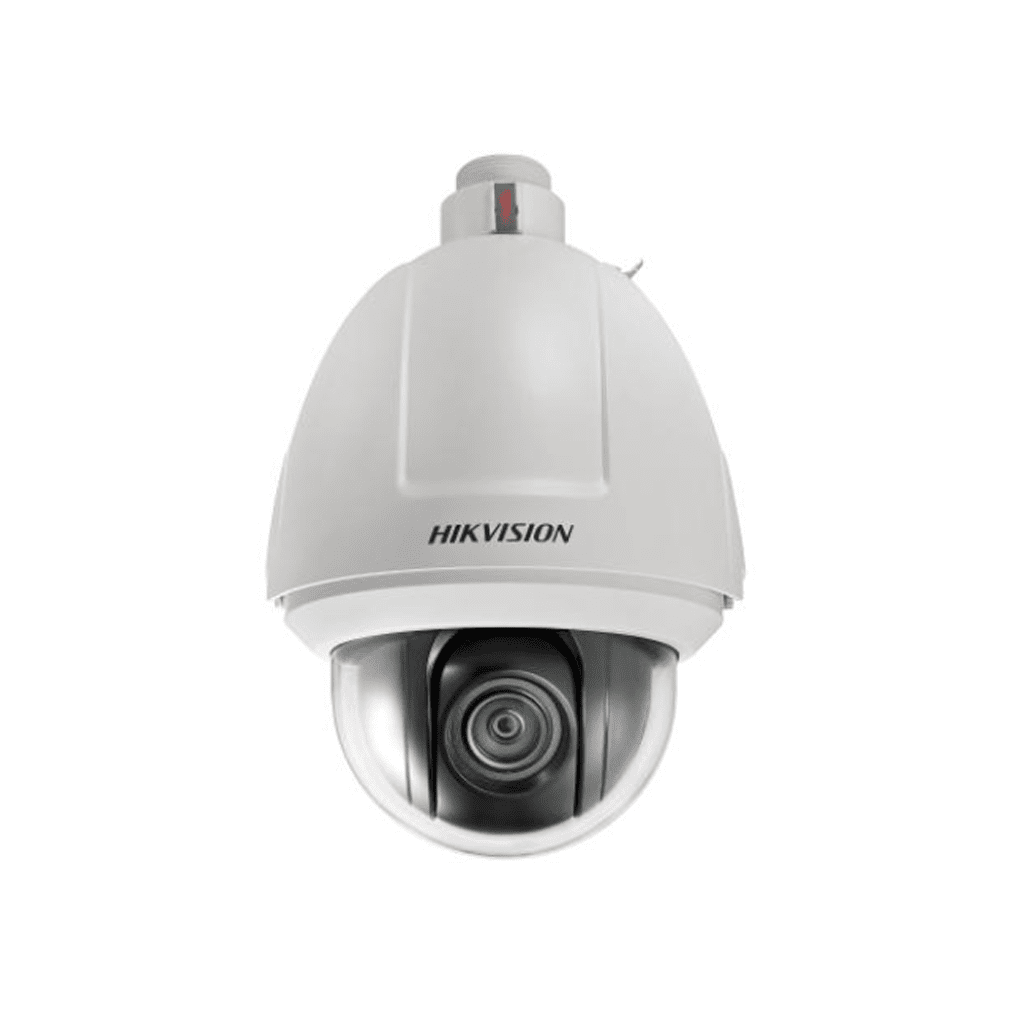

HIKVISION DS-2DF5232X-AEL(T5)
5 Series 2 MP 32X DarkFighter Network Speed Dome
Features
- 1/2.8″ progressive scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with DarkFighter technology
- 32× optical zoom and 16× digital zoom provide close up views over expansive areas
- 120 dB WDR, 3D DNR, HLC
- Water and dust resistant (IP66) and vandal resistant (IK10)
Specifications
| Camera | |
| Image Sensor | 1/2.8″ progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON) |
| Shutter Speed | 1 to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 32 × optical, 16 × digital |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| Defog | Optical defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| General | |
| Power | 24 VAC, 3.0 A, 50/60Hz (Max. 60 W, including max. 40 W for heater), Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 40 W, including max. 20 W for heater) |
| Dimension | Ø 220 mm × 302 mm (Ø 8.66″ × 11.89″) |
| Weight | Approx. 4 kg (8.82 lb.) |
| Operating Condition | -40°C to 70°C (-40°F to 158°F). Humidity 95% or less (non-condensing) |
