描述

海康威視 DS-2DF6A836XG1-EL 是 DF6A 系列 8MP 36 倍光學變焦 DarkFighter 網絡快球，1/1.8 吋 CMOS，具 140 dB 寬動態及人臉抓拍，IP67 及 IK10（玻璃窗除外）。香港防盜為安裝商及經銷商，規格以原廠為準。

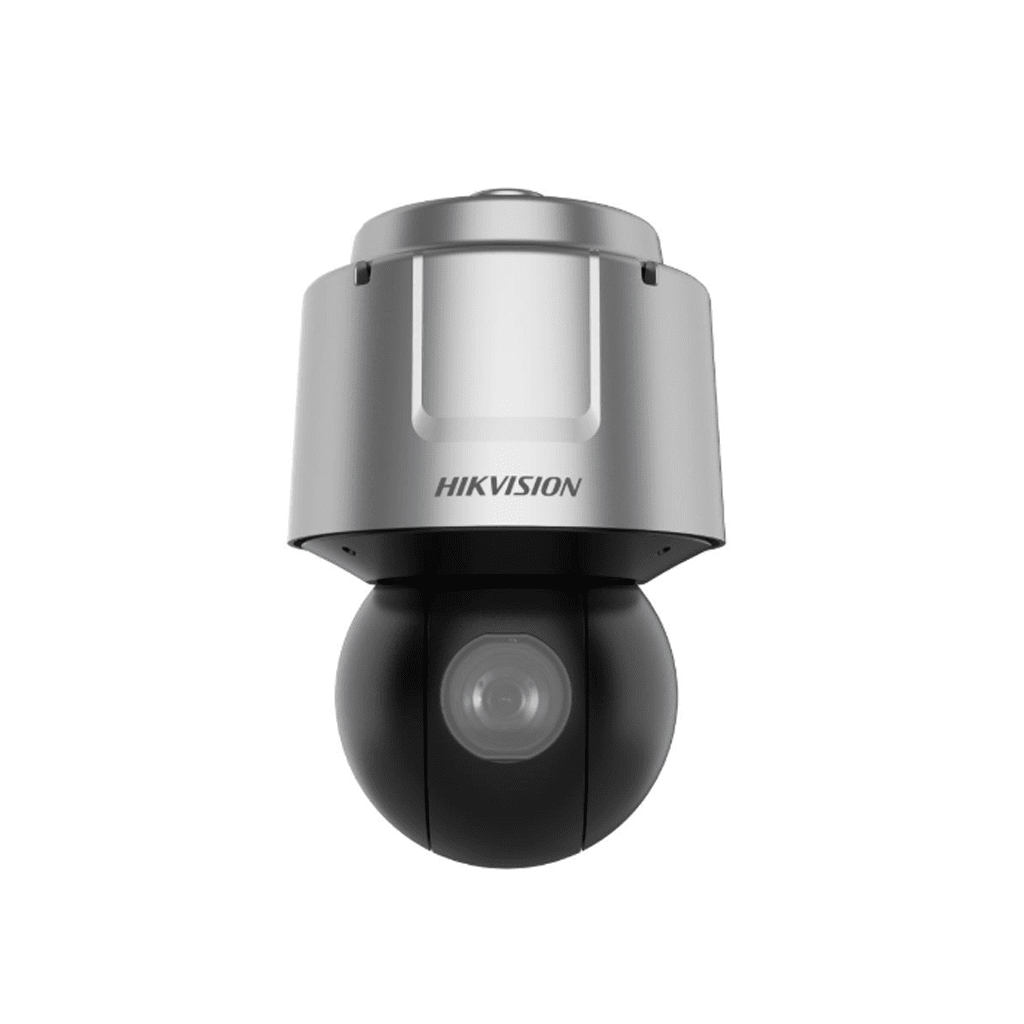

HIKVISION DS-2DF6A836XG1-EL

DF6A Series 8MP 36X DarkFighter Network Speed Dome

1/1.8＂ progressive scan CMOS
High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology
36× optical zoom and 16× digital zoom provide close up views over expansive areas
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Supports face capture to detect, capture, grade, and select faces in motion
Supports road traffic to detect vehicles

Camera
Image Sensor	1/1.8＂ progressive scan CMOS
Min. Illumination	color: 0.0005Lux @ (F1.2，AGC ON),B/W: 0.0001Lux @ (F1.2，AGC ON)
Shutter Speed	1/1 s to 1/30,000 s
Slow Shutter	Yes
Day & Night	IR cut filter
Zoom	36x optical, 16x digital
Max. Resolution	3840 × 2160
Day/Night Switch	Day, night, auto, scheduled-switch
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)	140 dB
Defog	Optical defog
Image Stabilization	Yes. Built-in gyroscope to improve EIS performance
Regional Exposure	Yes
Regional Focus	Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch	Yes
Privacy Mask	Up to 24 masks, mosaic mask, mask color configurable, rectangle region
SNR	≥ 52 dB
General
Power	36 VDC (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Operating Condition	Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
General Function	No
Heater	Yes
De-icing	No
Demist	Yes
Wiper	No
Dimension	⌀ 231.1 mm × 355.6 mm (⌀ 9.10″ × 14″)
Weight	Approx. 6 kg (13.23 lb.)
