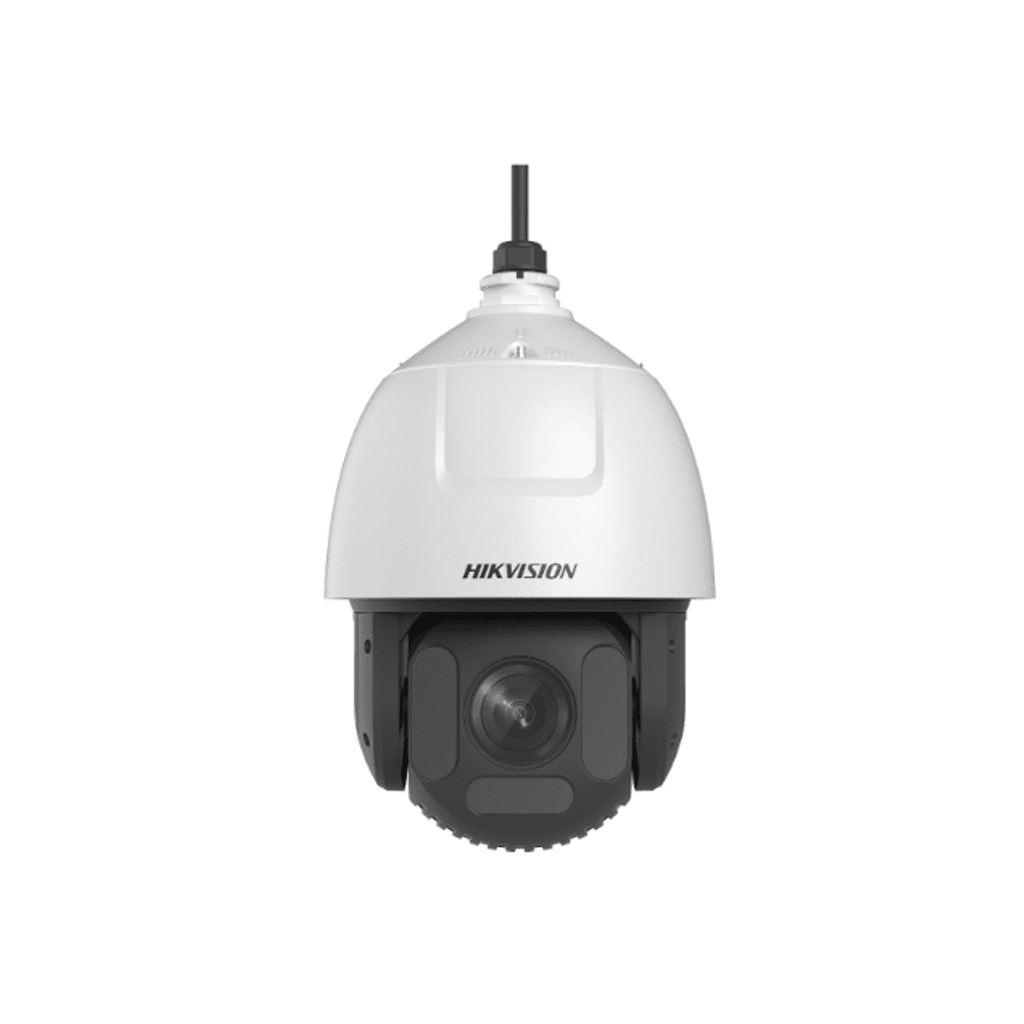

HIKVISION DS-2DF7C432IXR-AEL(T5)
7C Series 4 MP 32X DarkFighter IR Network Speed Dome
Features
- 1/1.8″ Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with DarkFighter technology
- 32 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- 120 dB WDR, 3D DNR, HLC, Smart IR
- Expansive night view with up to 300 m IR distance
- Supports rapid focus
- Water and dust resistant (IP66)
Specifications
| Camera | |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1s to 1/30,000s |
| Day & Night | IR cut filter |
| Zoom | 32 × optical, 16 × digital |
| Slow Shutter | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| General | |
| Power | 24 VAC, 3.0 A, 50/60 Hz & Hi-PoE, 42.5 to 57 VDC, 1.41 A, Max. 40 W, including max. 16 W for IR and max. 10 W for heater |
| Dimension | Ø 226 mm × 354 mm (Ø 8.90″ × 13.94″) |
| Weight | Approx. 5.0 kg (11.02 lb.) |
| Operating Condition | -40°C to 70°C (-40°F to 158°F), Humidity 95% or less (non-condensing) |
| General Function | Mirror, password protection |
