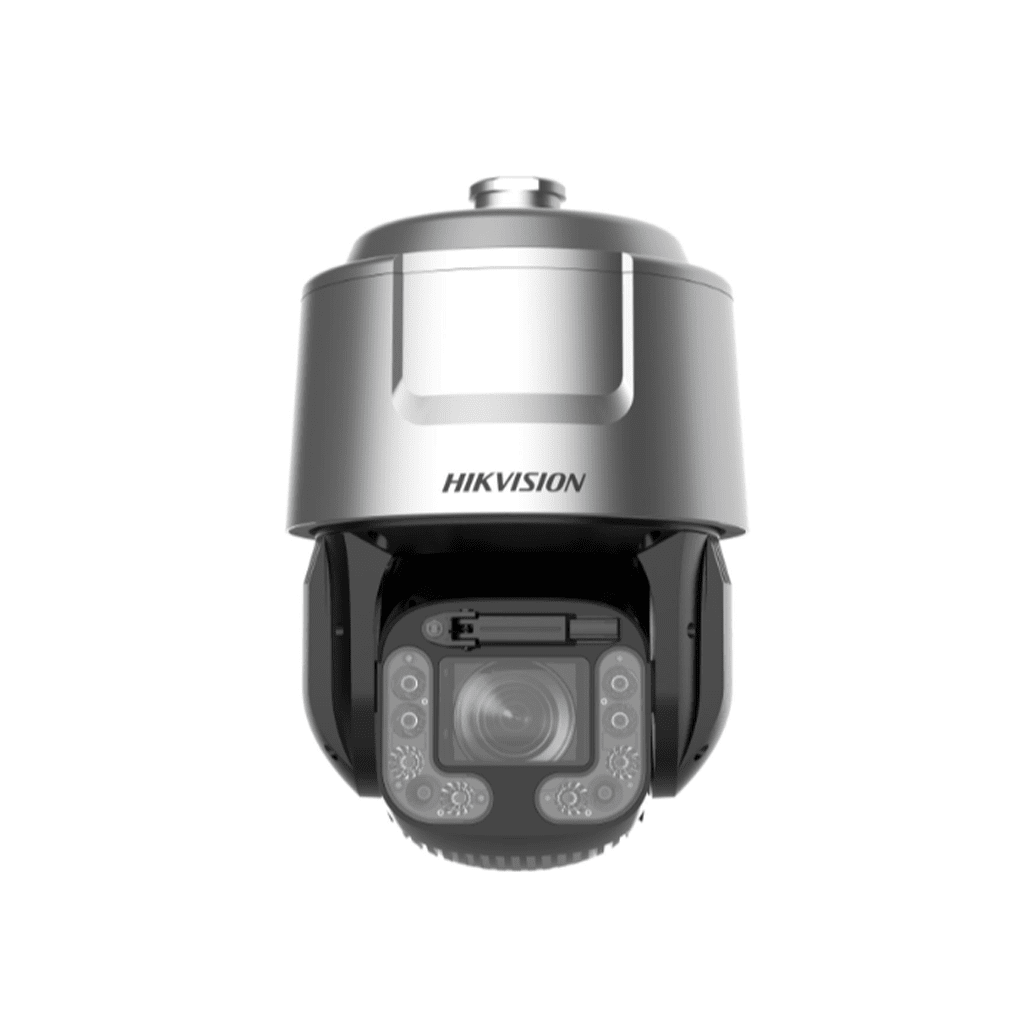

HIKVISION DS-2DF7C432MXG1-(W)R/4G
7C Series 4MP 32X Realtime Low Consumption 4G Darkfighter Network Speed Dome
Features
- 1/1.8″ progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- 32 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 200 m IR distance
- Water and dust resistant (IP66)
- Supports face capture to detect, capture, grade, and select faces in motion
- Support 4G network transmission
Specifications
| Camera | |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5，AGC ON), 0 Lux with light |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 32x optical, 16x digital |
| Max. Resolution | 2688 × 1520 |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 150 dB |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Defog | Optical defog |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 52 dB |
| General | |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Model with -W: Yes, Model without -W: No |
| De-icing | No |
| Demist | Yes |
| General Function | Mirror, password protection, watermark, IP address filter |
| Operating Condition | Temperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95% |
| Dimension | Ø 218.4 mm × 324.2 mm (Ø 8.6″ × 12.76″) |
| Weight | Approx. 4.2 kg (9.26 lb.) |
