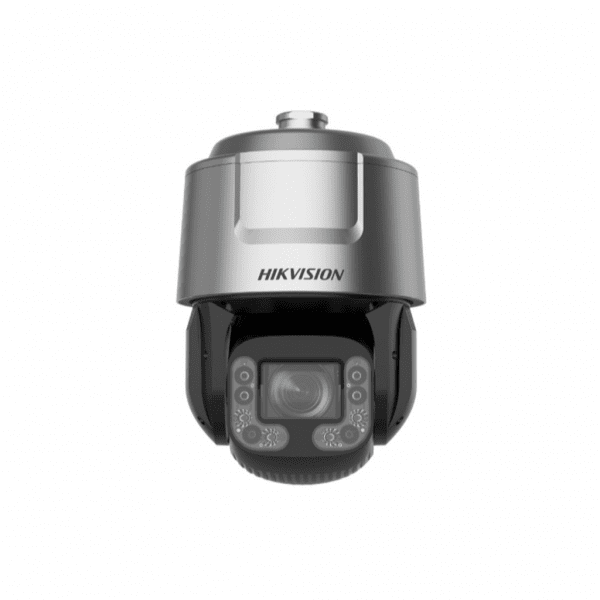

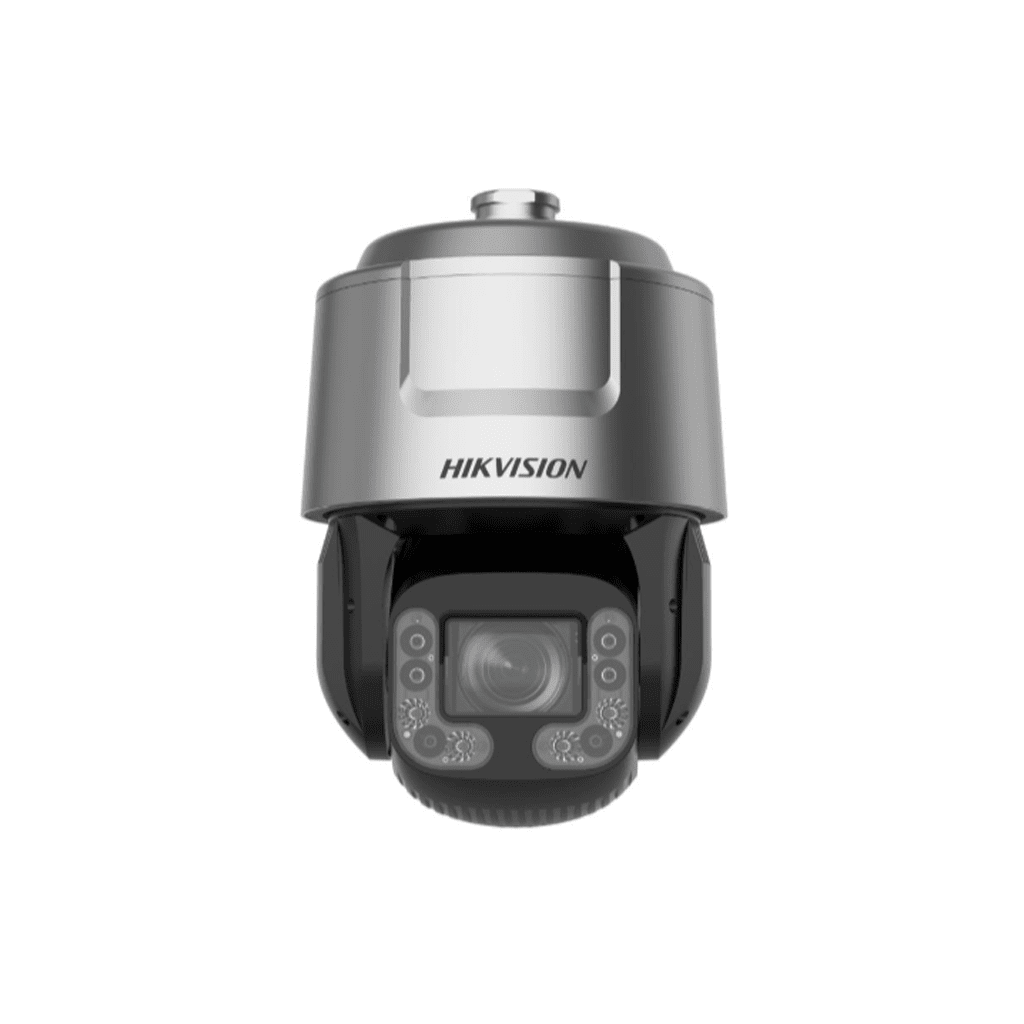

HIKVISION DS-2DF7C432MXG1-(W)R

7C Series 4MP 32X Realtime Low Consumption Darkfighter Network Speed Dome

1/1.8″ progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 150 dB AWDR technology
32 × optical zoom and 16 × digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Water and dust resistant (IP66)
Supports face capture to detect, capture, grade, and select faces in motion

Camera
Image Sensor	1/1.8″ progressive scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5，AGC ON), 0 Lux with light
Shutter Speed	1/1 s to 1/30,000 s
Slow Shutter	Yes
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)	150 dB
Day/Night Switch	Day, night, auto, scheduled-switch
Image Enhancement	BLC, HLC, 3D DNR
Defog	Optical defog
Image Stabilization	Yes. Built-in gyroscope to improve EIS performance
Regional Exposure	Yes
Regional Focus	Yes
Privacy Mask	Up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR	≥ 52 dB
General
Vandal-proof Alarm	No
Heater	Yes
Wiper	No
De-icing	No
Demist	Yes
General Function	Mirror, password protection, watermark, IP address filter
Power	12 VDC, 3.33 A. Max. 20 W (including max. 3.5 W for heater and max. 4.2 W for supplement light). Average power consumption for real-time live view in daylight: 5 W. Average power consumption for real-time live view at night: 7 W
Operating Condition	Temperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95%
Dimension	Ø 218.4 mm × 324.2 mm (Ø 8.6″ × 12.76″)
Weight	Approx. 4.2 kg (9.26 lb.)
