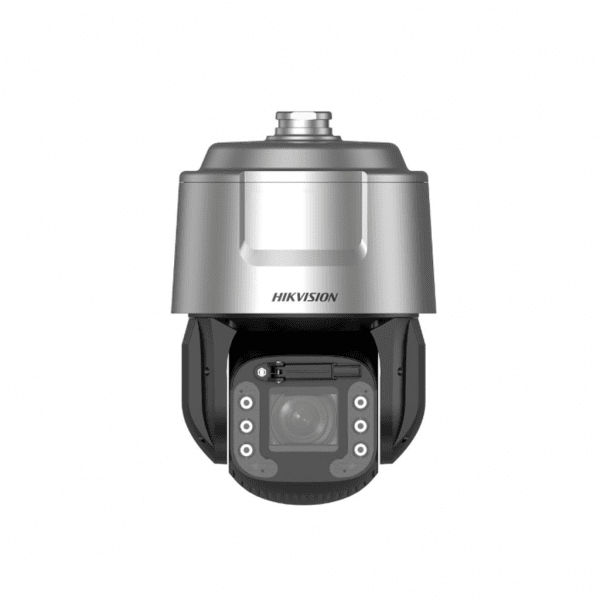

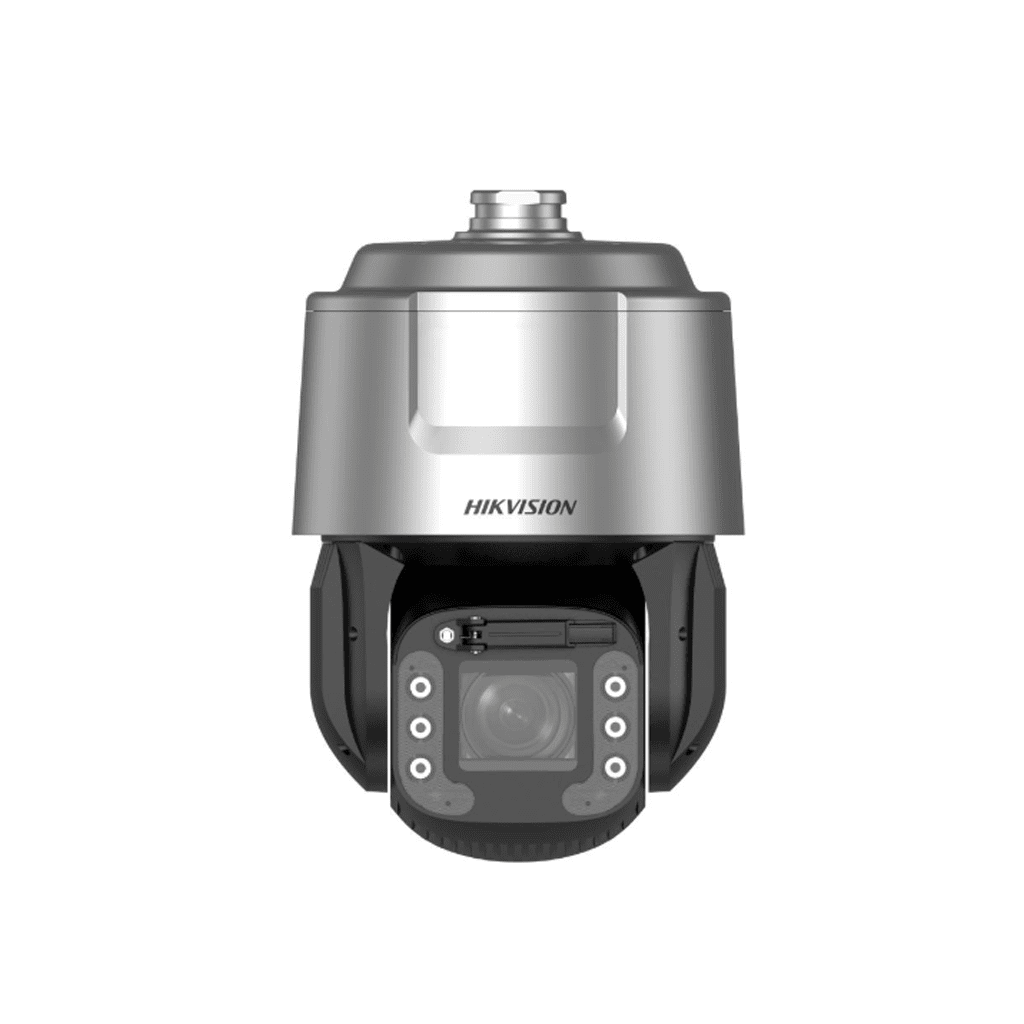

HIKVISION DS-2DF7C432MXG1-WRP/4G
7C Series 4MP 32X Realtime Low Consumption 4G Darkfighter Traffic Network Speed Dome
Features
- 1/1.8″ progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- 32 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 200 m IR distance
- Water and dust resistant (IP66)
- Support 4G network transmission
- Multiple violations supported: illegal parking detection, reverse driving detection, over lane line detection, illegal lane change detection, vehicle on non-motor vehicle lane, U-turning detection
Specifications
| Camera | |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.5, AGC ON),B/W: 0.0001 Lux @ (F1.5, AGC ON),0 Lux with light |
| Shutter Speed | 1/30 s to 1/30000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 32x optical, 16x digital |
| Max. Resolution | 2688 × 1520 |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 150 dB |
| Day/Night Switch | schedule,auto,night,Day |
| Image Enhancement | BLC, HLC, 3D DNR |
| Defog | Digital defog |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 52 dB |
| General | |
| General Function | IP address filter,mirror,password reset via email,third stream |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Model with -W: Yes, Model without -W: No |
| De-icing | No |
| Demist | Yes |
| Power | 12 VDC, 3.33 A, Max. 20 W Low power local recording scenario in daylight: 3.75 W (4G proactive mode, no preview, supplement light off) Average power consumption for the device with 4G preview and real-time transmission round-the-clock: 5.1 W (4G preview, no supplement light during the day, supplement light on at night, 5.05 W for 14 hours during the day, 5.95W for 10 hours at night) |
| Operating Condition | Temperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95% |
| Dimension | Ø 218.4 mm × 324.2 mm (Ø 8.6″ × 12.76″) |
| Weight | Approx. 4.2 kg (9.26 lb.) |
