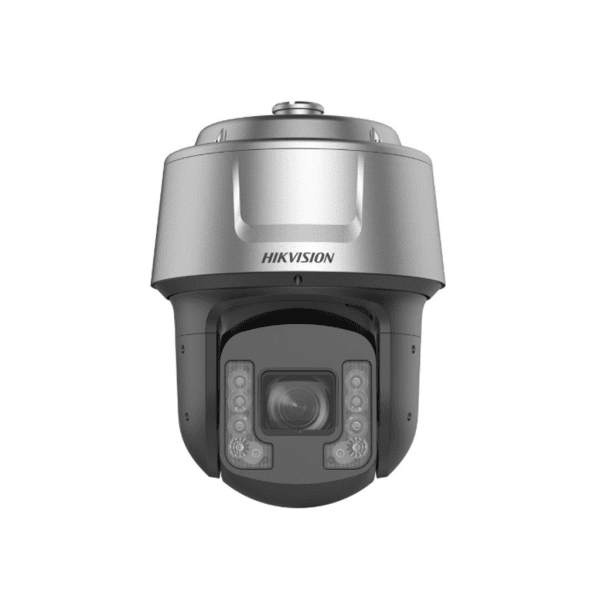

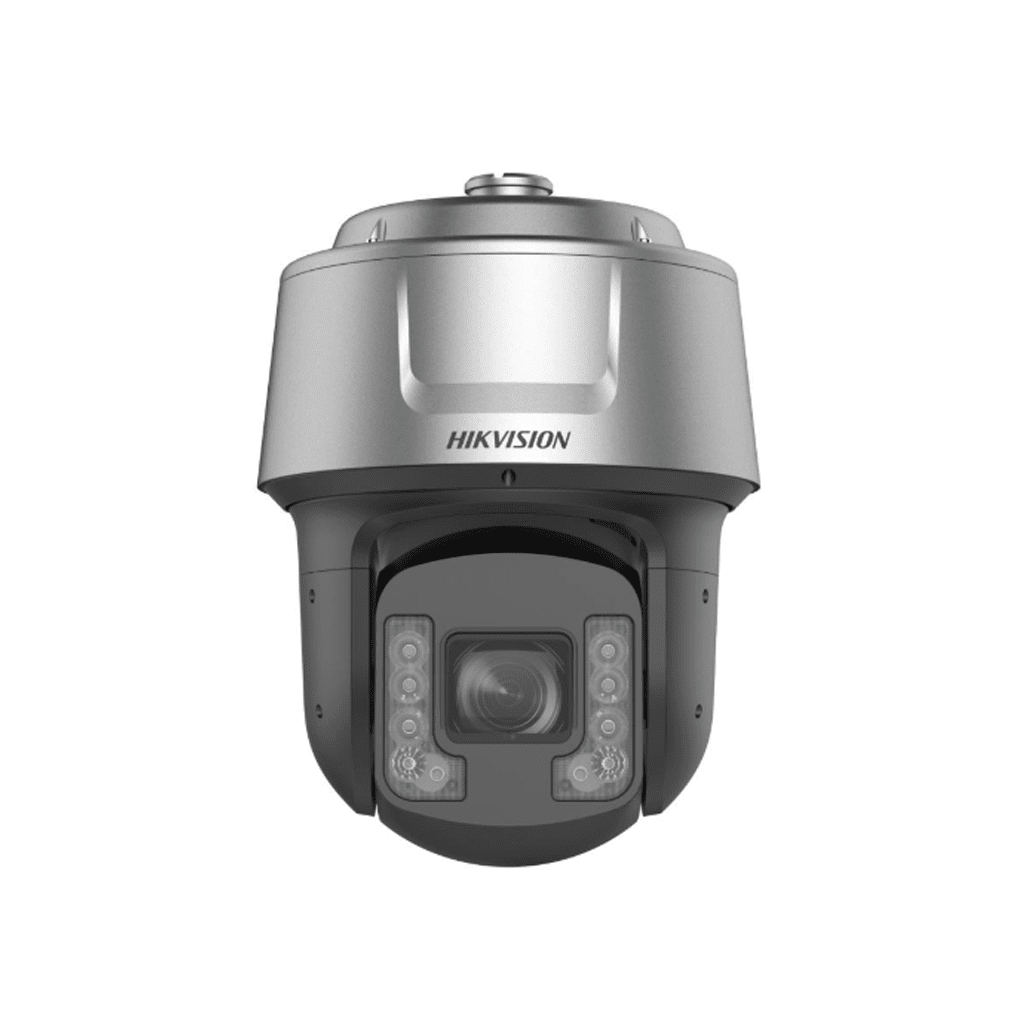

HIKVISION DS-2DF7C825IXG2/LM-EL(W)(Y)

DeepinViewX DF7C Series 8MP 25X DarkFighter IR Network Speed Dome

1/1.8″ Progressive Scan CMOS
High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology
25 × optical zoom and 16 × digital zoom provide close up views over expansive areas
Expansive night view with up to 400 m IR distance
Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window
Smart Pan-Tilt Correction
Dedicated large scale AI model for perimeter protection

Camera
Image Sensor	1/1.8″ progressive scan CMOS
Min. Illumination	Color: 0.0007 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Slow Shutter	Yes
Day & Night	IR cut filter
Zoom	25x optical, 16x digital
Max. Resolution	3840 × 2160
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch	Day, night, auto, scheduled-switch
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)	140 dB
Defog	Digital defog
Image Stabilization	Yes. Built-in gyroscope to improve EIS performance
Regional Exposure	Yes
Regional Focus	Yes
Privacy Mask	Up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR	≥ 52 dB
General
Vandal-proof Alarm	No
Heater	Yes
Wiper	No
De-icing	No
Demist	Yes
General Function	Mirror, password protection, watermark, IP address filter
Power	36 VDC± 25%, max. 60 W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) PoE 802.3bt, type3, class6, max. 60W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater)
Operating Condition	Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Dimension	Ø 260 mm × 336.4 mm (Ø 10.24″ × 13.24″)
Weight	Approx. 6.7 kg (14.77 lb.)
