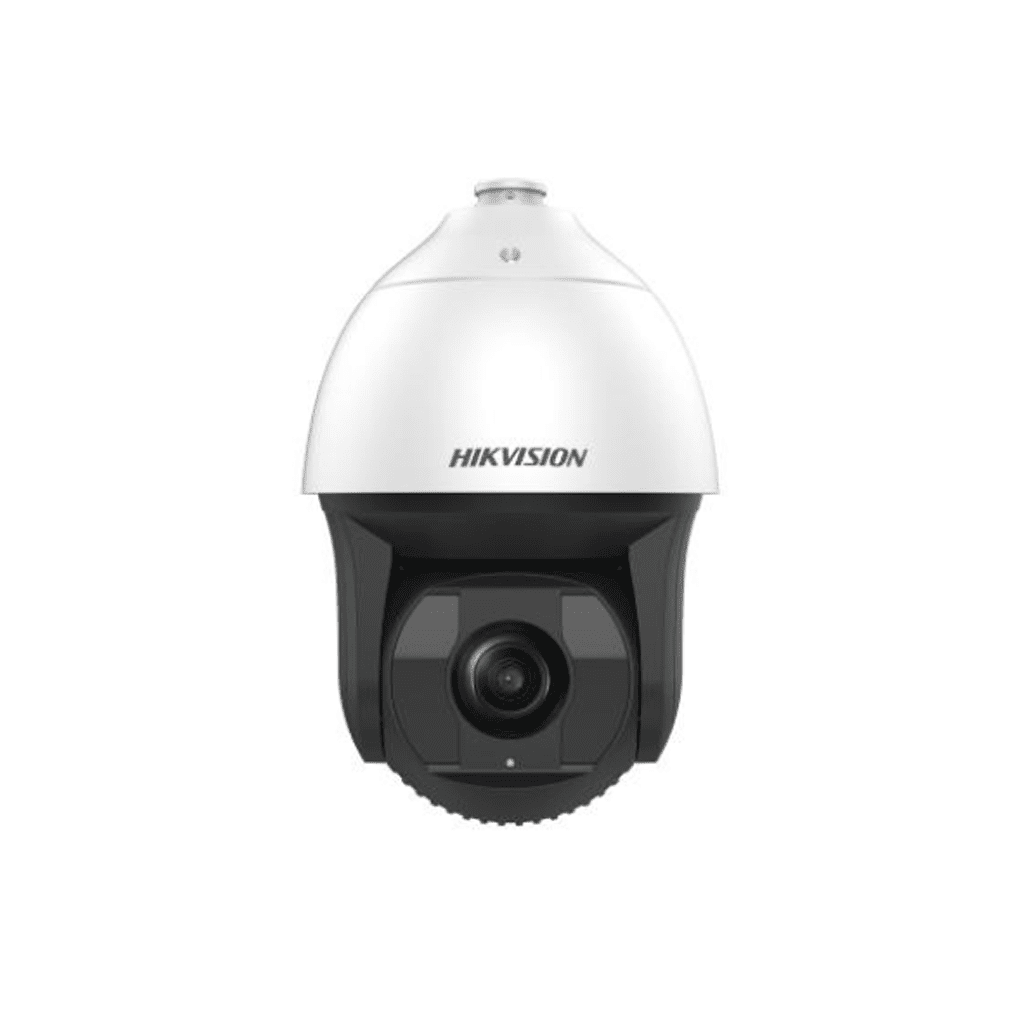

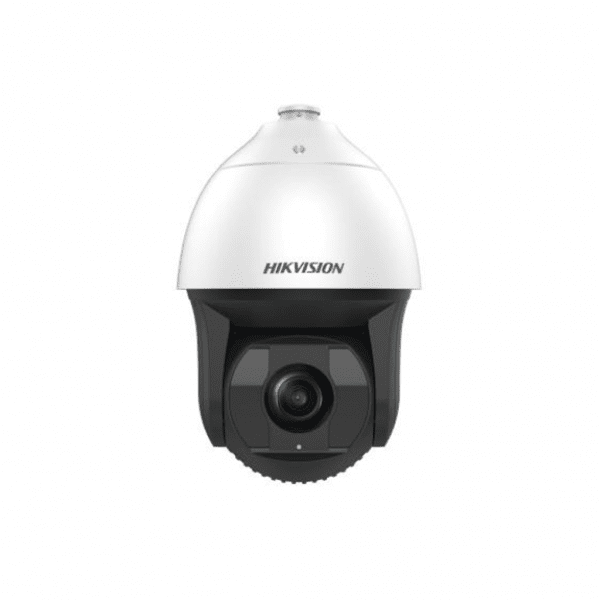

HIKVISION DS-2DF8425IX-AEL(T5)

8-inch 4 MP 25X DarkFighter IR Network Speed Dome

1/1.8″ Progressive Scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 400 m IR distance
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Supports face capture to detect, capture, grade, and select faces in motion
Supports road traffic to detect vehicles

Camera
Image Sensor	1/1.8″ progressive scan CMOS
Min. Illumination	Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ ((F1.5, AGC ON), 0 Lux with IR
Shutter Speed	1/1 s to 1/30,000 s
Day & Night	IR cut filter
Zoom	25x optical, 16x digital
Max. Resolution	2560 × 1440
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)	140 dB WDR
Image Stabilization	Yes. Built-in gyroscope to improve EIS performance
Regional Exposure	Yes
Regional Focus	Yes
Privacy Mask	Up to 24 masks, polygon region, mosaic mask, mask color configurable
General
General Function	Mirror, password protection, watermark, IP address filter
Power	24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
Operating Condition	Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Dimension	⌀ 266.6 mm × 410 mm (⌀ 10.50″ × 16.14″)
Weight	Approx. 8 kg (17.64 lb.)
