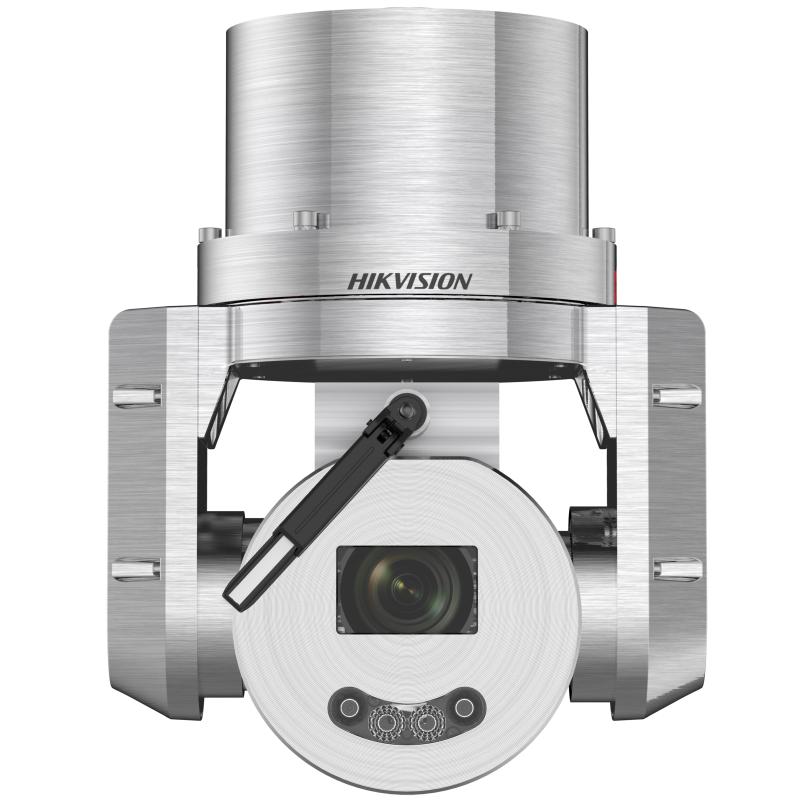

HIKVISION DS-2DF8A425MXG0-CWX(316L) 316L 4MP 25x Explosion-proof Network Speed Dome

描述

DS-2DF8A425MXG0-CWX(316L)

316L 4MP 25x Explosion-proof Network Speed Dome

DS-2DF8A425MXG0-CWX(316L) 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

規格

Camera

Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.005 Lux @ (F1.66, AGC ON),B/W: 0.001 Lux @ (F1.66, AGC ON),0 Lux with IR
Shutter Speed	1/1 s to 1/30000 s
Day & Night	Schedule,Night,Day,Auto
Zoom	25 × optical,16 × digital
Slow Shutter	No

Lens

Focal Length	5.57 to 139.25 mm
FOV	Horizontal field of view: 60.72° to 2.2°, vertical field of view: 35.92° to 1.3°, diagonal field of view: 68.14° to 2.6°
Focus	Auto,semi-auto,manual
Aperture	F1.66
Zoom Speed	Approx. 3.6 s

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	IR distance: up to 100 m,White light distance: up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm

PTZ

Movement Range (Pan)	360° endless
Movement Range (Tilt)	-5° to 90°
Pan Speed	Pan speed: configurable from 0.1° to 30°/s, preset speed: 30°/s
Tilt Speed	Tilt speed: configurable from 0.1° to 20°/s, preset speed 20°/s
Proportional Pan	Yes
Presets	300
Preset Freezing	Yes
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Park Action	Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning	Yes
PTZ Status Display	Yes
Scheduled Task	Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Power-off Memory	Yes

Video

Main Stream	50Hz：25fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60Hz：30fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-Stream	50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline profile,Main profile,High profile
H.265 Type	Main profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	8 fixed regions for each stream

Audio

Audio Compression	G.711,G.722.1,G.726,MP2L2,PCM,MP3
Audio Bit Rate	16~64 Kbps(AAC-LC)/8~160 Kbps(MP3)/64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~160 Kbps(MP2L2)
Audio Sampling Rate	8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering	Yes

Network

Protocols	IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour
Simultaneous Live View	Up to 20 channels
API	ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
Smooth Streaming	Yes
User/Host	Up to 32 users. 3 user levels: administrator, operator, and user
Security	Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.2/1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
Network Storage	NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Client	iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser	IE11, Chrome 57+, Firefox 52+, Safari 11+

AI Open Platform

Model Specification	Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type	Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type	Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule
Rule Setting	Up to 16 rules.


Image Parameters Switch	Yes
Image Settings	brightness,contrast,sharpness,white balance,saturation,gain,adjustable by client software or web browser
Day/Night Switch	auto
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Defog	Digital defog
Image Enhancement	HLC,BLC,3D DNR
Privacy Mask	24 programmable polygon privacy masks, mask color or mosaic configurable
Image Stabilization	EIS (Built-in gyroscope to improve EIS performance)

Interface

Ethernet Interface	1 RJ45 10/100M self-adaptive Ethernet port
On-board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio	1 input, input impedance 4.7 kΩ, input amplitude range: 0 to 1 Vrms 1 output, output impedance 100 Ω, output amplitude range: 0 to 0.5 Vrms
Alarm	2 input(s), 2 output(s)
Fiber Optical	FC interface, built-in fiber module (100 M, TX1310/RX1550nm wavelength, single module fiber, up to 20 km transmission distance

Event

Basic Event	Motion detection,video tampering alarm,exception,alarm input and output
Smart Event	Line crossing detection,parking detection,region entrance detection,intrusion detection,object removal detection,people gathering detection,fast moving detection,region exiting detection,loitering detection,unattended baggage detection
Linkage	send email,Upload to FTP/NAS/memory card,white light flashing,audible warning,PTZ actions,trigger alarm output,notify surveillance center,trigger recording
Smart Tracking	auto-tracking

Deep Learning Function

Perimeter Protection	Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection	Supports simultaneous detection and capture of human body, face and vehicle
Face Capture	Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Road Traffic and Vehicle Detection	Blocklist and allowlist: up to 10,000 records Captures vehicle that has no license plate Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
Regional People Counting	Support

General

Power	100 VAC to 240 VAC,Max.35W
Dimension	253.2 mm × 216.7 mm × 342.8 mm (11.41" × 8.53" × 13.49")
Material	Electro-polished 316L Stainless Steel
Operating Condition	-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Cable Length	1.25 m (4.10 ft.)
General Function	Anti-flicker,heartbeat,mirror,flash log,password reset via e-mail,pixel counter,password protection,one-key reset,three streams
Wiper	Yes

Approval

EMC	CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),RCM (AS/NZS CISPR 32: 2015)
Safety	CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection	IP68 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 4000 V lightning protection, surge protection and voltage transient protection
Explosion-Proof Protection	ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68, IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
