描述
海康威視 DS-2DF8C260I5XG2/LM-EL(W)(Y) 是 DeepinViewX DF8C 系列 60 倍光學變焦 DarkFighter 激光網絡快球，1/1.2 吋 CMOS，激光照明最遠 500 米，具 150 dB 寬動態，IP67 及 IK10（玻璃窗除外）。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

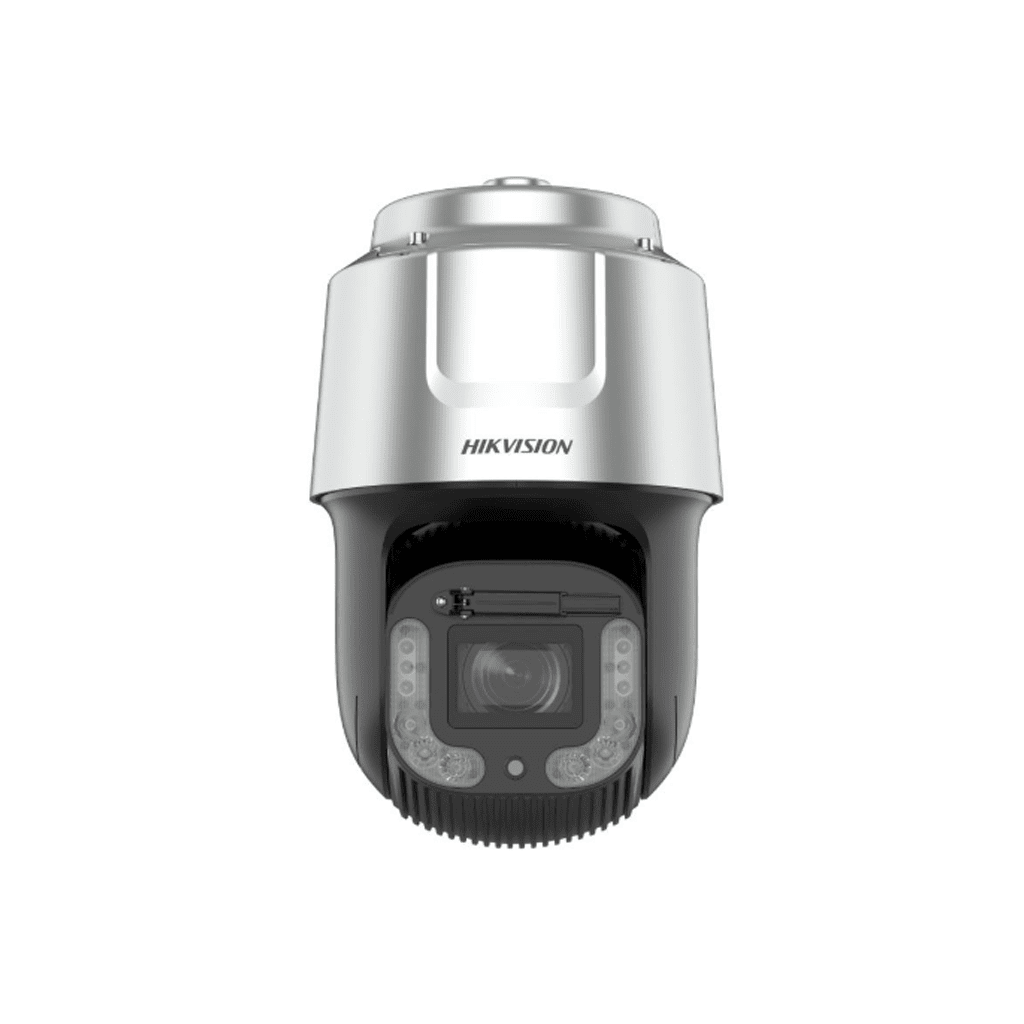

HIKVISION DS-2DF8C260I5XG2/LM-EL(W)(Y)
DeepinViewX DF8C Series 2MP 60X DarkFighter Laser Network Speed Dome
Features
- 1/1.2″ Progressive Scan CMOS
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- 60 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 500 m Laser distance
- Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window
- Smart Pan-Tilt Correction
- Dedicated large scale AI model for perimeter protection
Specifications
| Camera | |
| Image Sensor | 1/1.2″ progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 60x optical, 16x digital |
| Max. Resolution | 1920 × 1080 |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Defog | Optical defog |
| Image Stabilization | Yes. OIS. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 52 dB |
| General | |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Yes. Rain-sensing auto control |
| De-icing | No |
| Demist | Yes |
| General Function | Mirror, password protection, watermark, IP address filter |
| Power | 36 VDC± 25%, max. 60 W (Max. 50 W, including max. 12 W for light and max. 8 W for heater) PoE 802.3bt, type3, class6, max. 60W (Max. 50 W, including max. 12 W for light and max. 8 W for heater) |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Dimension | Ø 267.4 mm × 431.1 mm (Ø 10.53″ × 16.97″) |
| Weight | Approx. 9.6 kg (21.16 lb.) |
