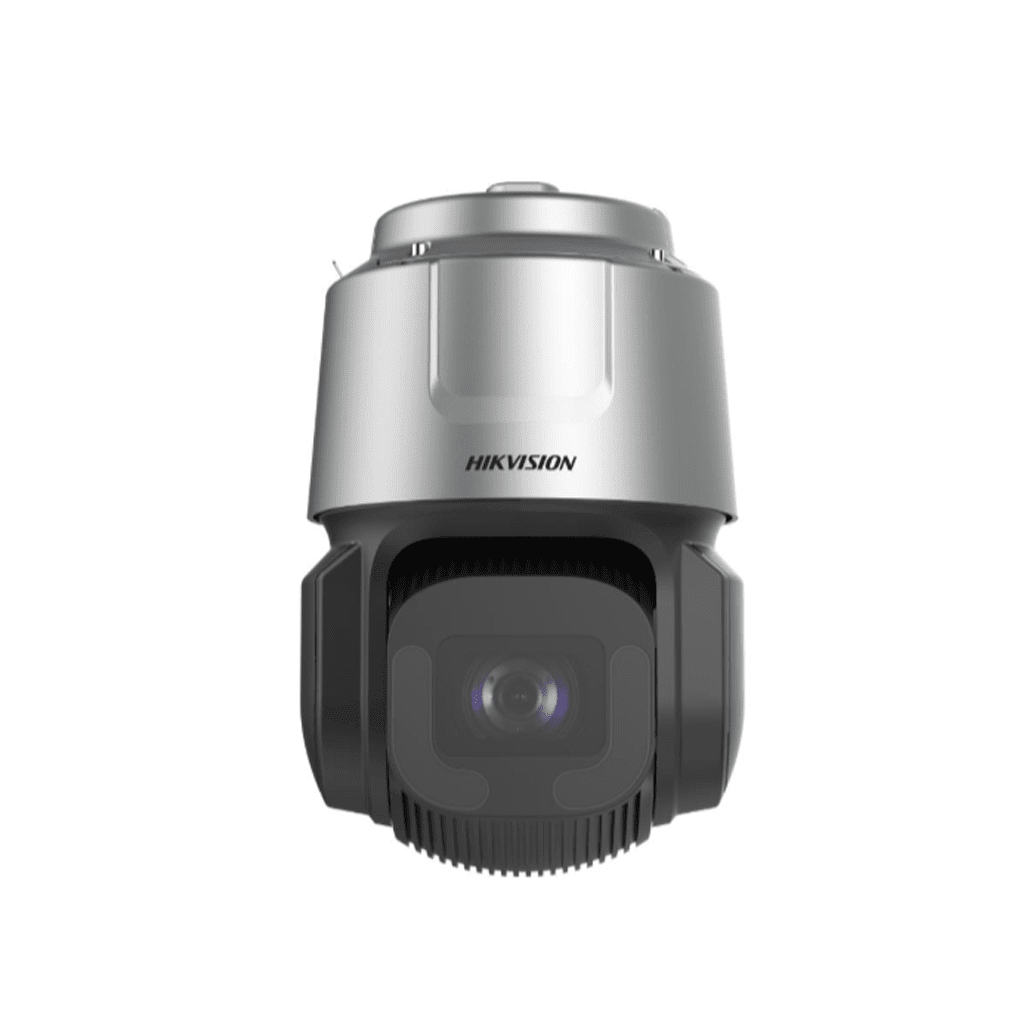

HIKVISION DS-2DF8C442IXS-AL/5G(T5)
8C Series 4 MP 42X DarkFighter IR 5G Network Speed Dome
Features
- 1/1.8″ progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with DarkFighter technology
- 42× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 250 m IR distance
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports 5G/4G/3G network connection
Specifications
| Camera | |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 42x optical, 16x digital |
| Slow Shutter | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 140 dB |
| SNR | ≥ 52 dB |
| Defog | Optical defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Up to 24 masks, mosaic mask, mask color configurable, rectangle region |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| General | |
| Dimension | Ø 274 mm × 430 mm (Ø 10.8″ × 16.9″) |
| Weight | Approx. 9.6 kg (21.16 lb.) |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Power Consumption and Current | 36 VDC (Max. 62 W, including max. 15 W for IR and max. 6 W for heater) |
