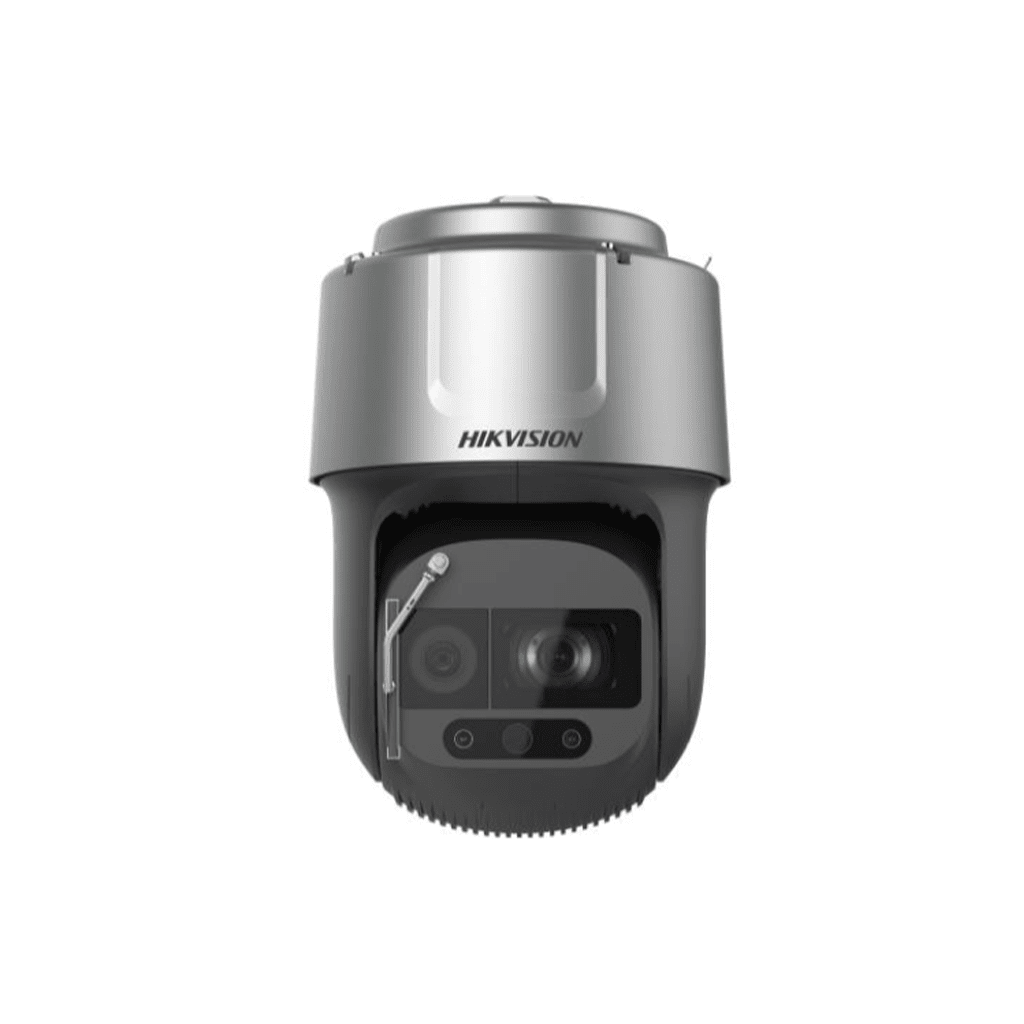

HIKVISION DS-2DF9C848LXG-LW
9C Series 8 MP 48X DarkFighter Laser Network Speed Dome
Features
- 1/1.2″ progressive scan CMOS, up to 3840 × 2160 resolution
- Full-color image output
- Min. illumination: Color: 0.0005 Lux @(F1.6, AGC ON) B/W: 0.0001 Lux @(F1.6, AGC ON);0 Lux with light
- 48× optical zoom, 16× digital zoom
- 140 dB WDR, 3D DNR, HLC, BLC, EIS, Optical Defog
- Support H.265+/H.265 video compression
- Support rapid focus
- Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
- Up to 800 m laser distance. Smart supplement light
- Rain-sensing auto wiper
- Smart pan-tilt correction
Specifications
| Camera | |
| Image Sensor | 1/1.2″ progressive scan CMOS |
| Min. Illumination | 3840×2160 |
| Slow Shutter | Color: 0.0005 Lux @ (F1.6, AGC ON),B/W: 0.0001 Lux @ (F1.6, AGC ON),0 Lux with light |
| Day & Night | 1/1 to 1/30,000s |
| Zoom | 48x optical, 16x digital |
| Max. Resolution | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 140 dB WDR |
| SNR | ≥ 55 dB |
| Defog | Optical defog |
| Image Stabilization | OIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| General | |
| Power | 36 VDC, max. 90 W, including max. 18 W for IR |
| Dimension | Φ 293 mm × 422 mm (Φ 11.5″ × 16.6″) |
| Weight | Approx. 13 kg (28.7 lb) |
| Material | ADC12 |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| General Function | Mirror, password protection, watermark, IP address filter |
| Vandal-proof Alarm | Yes |
| Wiper | Yes. Rain-sensing auto control |
