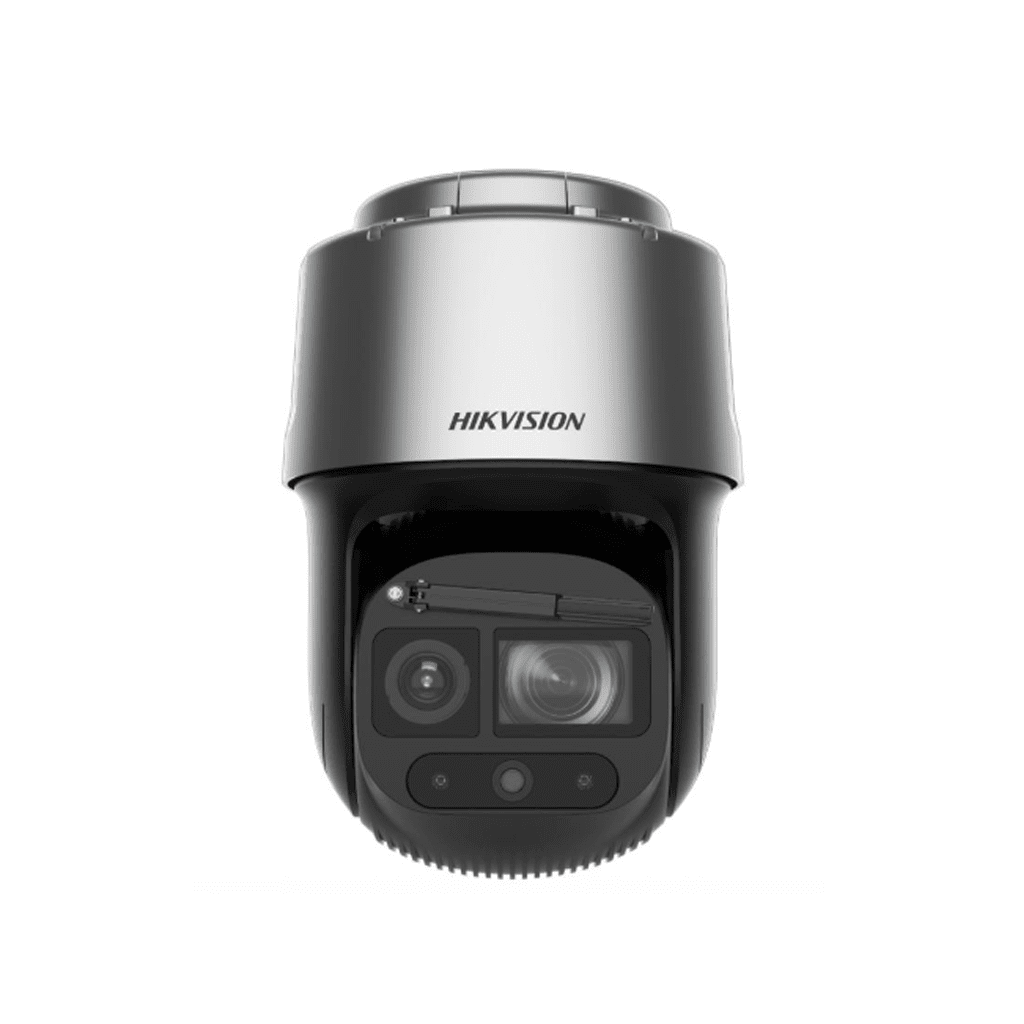

HIKVISION DS-2DF9C848LXG1-LW

9C Series 8MP 48X DarkFighter Laser Network Speed Dome

1/1.2″ Progressive Scan CMOS
High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology
48x optical zoom and 16x digital zoom provide close up views over expansive areas
Up to 800 m laser distance. Smart supplement light
Rain-sensing auto wiper
Supports face capture to detect, capture, grade, and select faces in motion
Supports road traffic to detect vehicles
Smart Pan-Tilt Correction
Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window

Camera
Image Sensor	1/1.2″ progressive scan CMOS
Min. Illumination	Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6，AGC ON), 0 Lux with light
Shutter Speed	1/1 s to 1/30,000 s
Slow Shutter	Yes
Day & Night	IR cut filter
Zoom	48x optical, 16x digital
Max. Resolution	3840 × 2160
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch	Day, night, auto, scheduled-switch
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)	140 dB WDR
Defog	Optical defog
Image Stabilization	OIS
Regional Exposure	Yes
Regional Focus	Yes
Privacy Mask	Up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR	≥ 55 dB
General
Vandal-proof Alarm	No
Heater	Yes
Wiper	Yes. Rain-sensing auto control
De-icing	No
Demist	Yes
General Function	Mirror, password protection, watermark, IP address filter
Power	36 VDC (Max. 90 W, including max. 15 W for IR and max. 8 W for heater)
Operating Condition	Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Dimension	Φ 292.9 mm × 445.7 mm (Φ 11.5″ × 17.6″)
Weight	Approx. 13 kg (28.7 lb)
