描述
海康威視 DS-2DF9C848LXG2/LM-LW 是 DeepinViewX DF9C 系列 8MP 48 倍光學變焦 DarkFighter 激光網絡快球，1/1.2 吋 CMOS，激光照明最遠 800 米，IP67 及 IK10（玻璃窗除外）。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

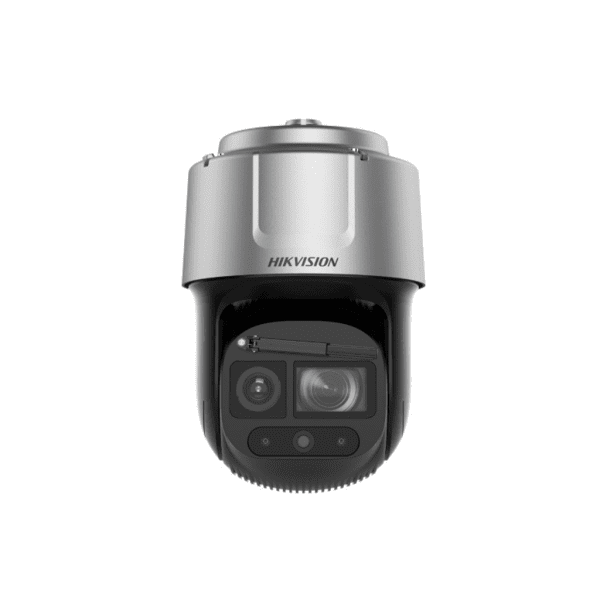

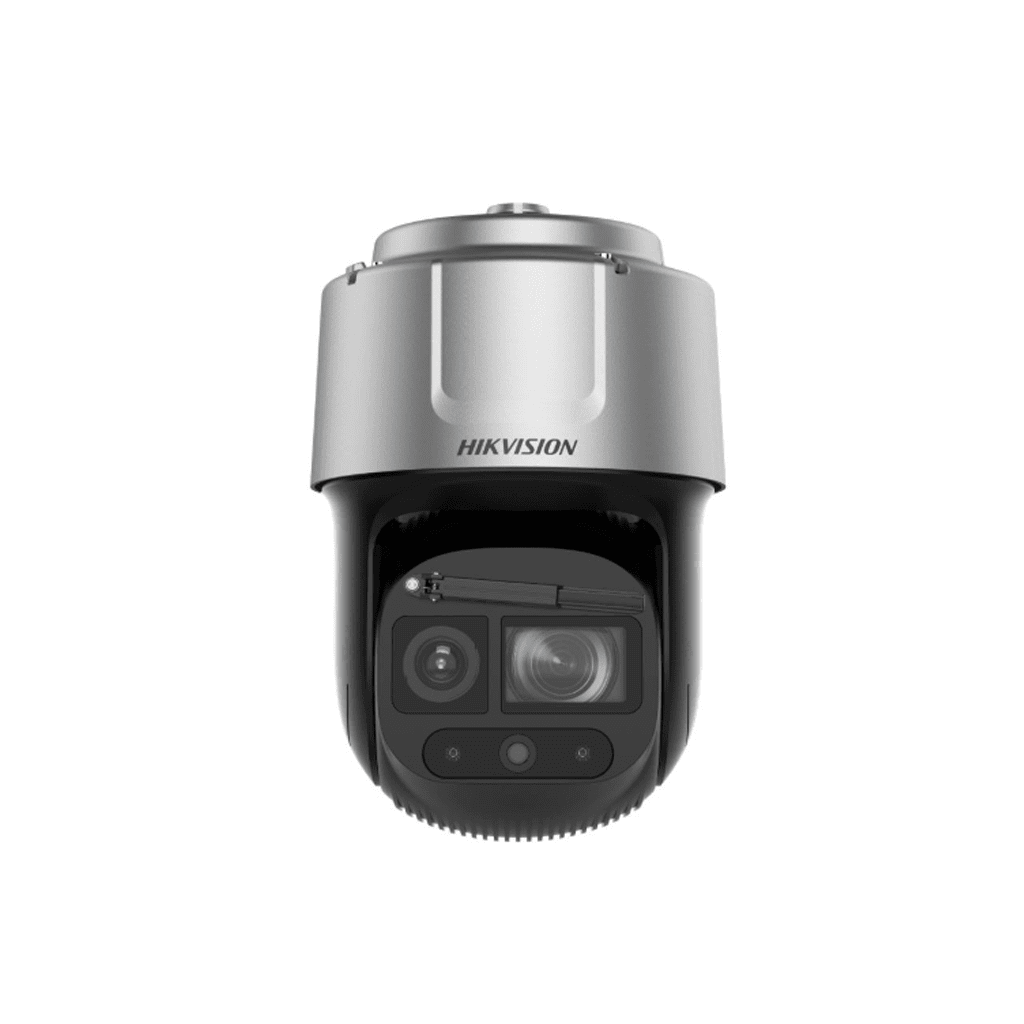

HIKVISION DS-2DF9C848LXG2/LM-LW
DeepinViewX DF9C Series 8 MP 48X DarkFighter Laser Network Speed Dome
Features
- 1/1.2″ Progressive Scan CMOS
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB AWDR technology
- 48 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 800 m Laser distance
- Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window
- Smart Pan-Tilt Correction
- Dedicated large scale AI model for perimeter protection
Specifications
| Camera | |
| Image Sensor | 1/1.2″ progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 48x optical, 16x digital |
| Max. Resolution | 3840 × 2160 |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Defog | Optical defog |
| Image Stabilization | Yes. OIS. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 55 dB |
| General | |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Yes. Rain-sensing auto control |
| De-icing | No |
| Demist | Yes |
| General Function | Mirror, password protection, watermark, IP address filter |
| Power | 36 VDC± 25%, max. 90 W (Max. 60 W, including max. 18 W for light and max. 11 W for heater) |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Dimension | Φ 292.9 mm × 445.7 mm (Φ 11.5″ × 17.6″) |
| Weight | Approx. 13 kg (28.7 lb) |
