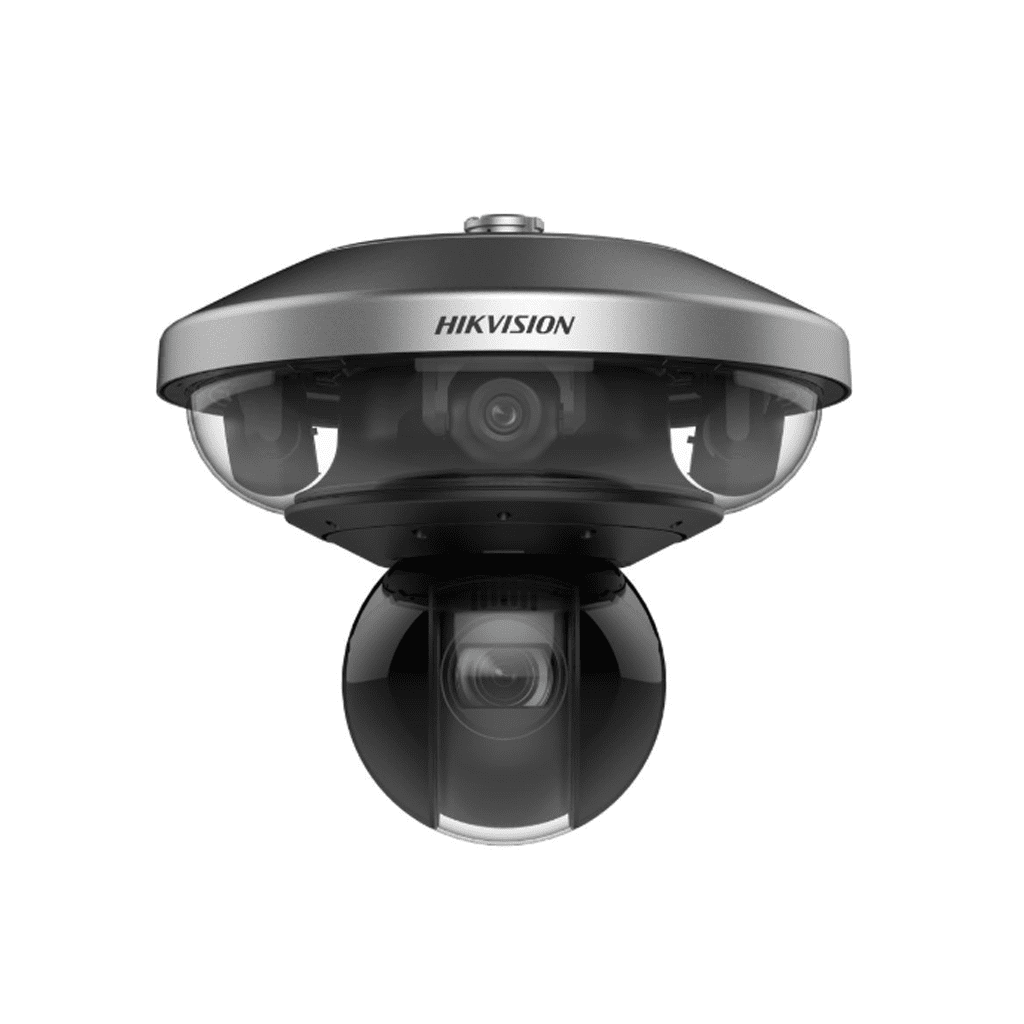

HIKVISION DS-2DP7D825IXG1-LEF(Y)/432
8MPx4 360° Panoramic & 8MP 25x PTZ Camera
Features
- Captures a large area and great details at the same time
- 24/7 colorful imaging and excellent low-light performance
- Motorized pan, tilt and rotation in 4 panoramic lenses for flexible adjustment
- 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Clear imaging against strong back light due to 120 dB(panorama) and 140 dB(PTZ) WDR technology
- High quality imaging with 4 MP resolution for both panoramic channel and PTZ channel
- Secures an expansive area with 36 × optical zoom and 16 × digital zoom
- Supports deep learning functions
- Water and dust resistant (IP67) and vandal resistant (IK10)
Specifications
| Camera | |
| Image Sensor | [Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | [Panoramic channel] 3840 × 2160, [PTZ channel] 3840 × 2160 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), [PTZ channel] Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1/30 s to 1/30000 s |
| Day & Night | IR cut filter |
| Zoom | 25 × optical,16 × digital |
| Slow Shutter | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day,night,auto,schedule |
| Wide Dynamic Range (WDR) | [Panoramic channel] 120 dB, [PTZ channel] 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | HLC,3D DNR |
| Privacy Mask | [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| General | |
| Power | 36 VDC ± 20%%, max. 105 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A |
| Dimension | Ø402.37 mm × 363.22 mm (Ø15.84″ × 14.3″) |
| Weight | ADC12 |
| Material | Weight Approx. 9.67 kg (21.32 lb.) With Package Weight Approx. 12.69 kg (27.98 lb.) |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 122°F) |
| Wiper | No |
| Demist | Yes |
