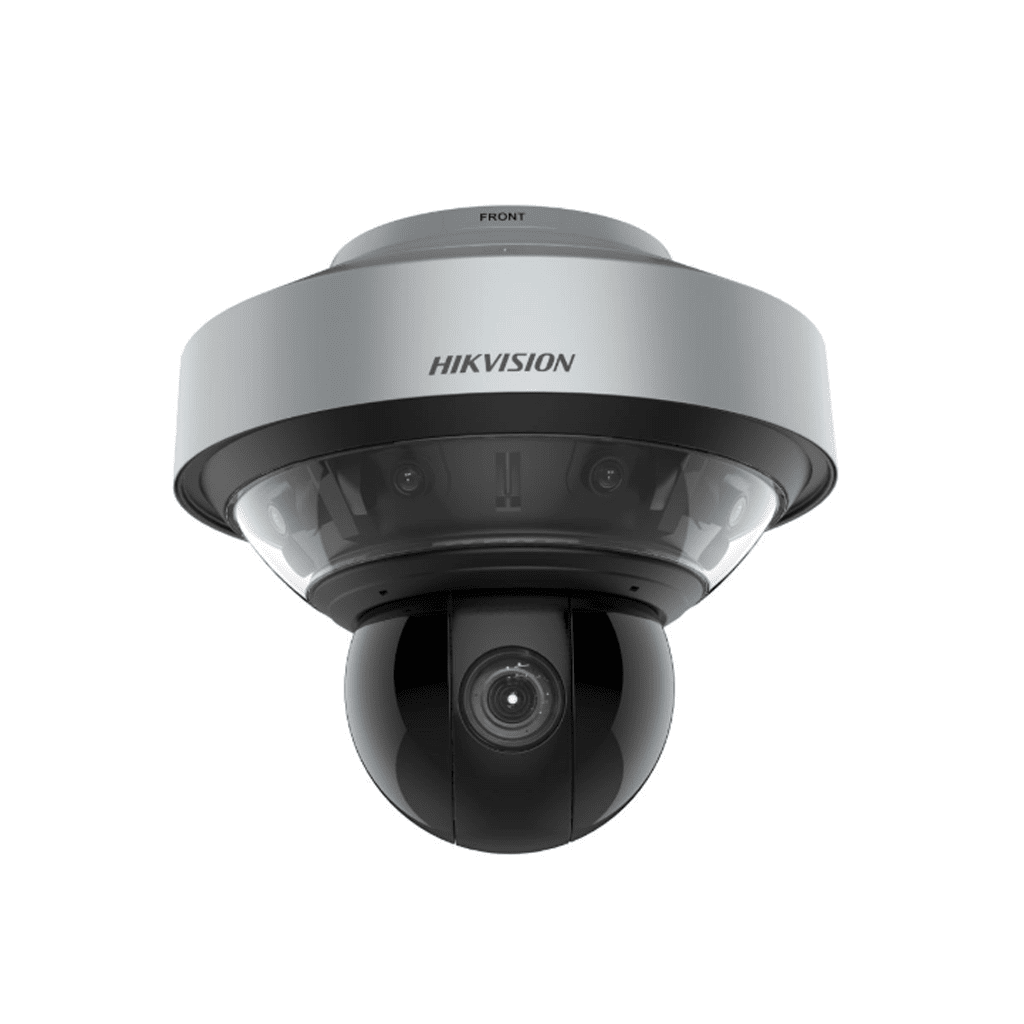

HIKVISION DS-2DP8A440IXG-LF/832(F0)(B)

32MP 360° Panoramic & PTZ Camera

High quality imaging with 32 MP resolution, up to 2 × 5520 × 2400 @25 fps for panoramic channels
Excellent low-light performance with DarkFighter technology
40x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 250 m IR distance
With one click on the panoramic channel, the PTZ channel shows the details automatically
Continous and stable manual tracking, auto-tracking, and panorama tracking
Automatic switch between multiple targets
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output

Camera
Image Sensor	[Panoramic channel]: 1/1.8″ progressive scan CMOS, [PTZ channel]: 1/1.8″ progressive scan CMOS
Max. Resolution	5520 × 2400
Min. Illumination	[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1 s to 1/30000 s
Day & Night	IR cut filter
Zoom	[PTZ channel] 40x optical, 16x digital
Slow Shutter	Yes
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch	Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR)	[Panoramic channel] no, [PTZ channel] 120 dB
SNR	≥ 55 dB
Defog	[Panoramic channel]: no; [PTZ channel]: optical defog
Image Stabilization	EIS (Built-in gyroscope to improve EIS performance)
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
Regional Focus	Yes
Regional Exposure	Yes
General
Power	36 VDC, max. 135 W (including max. 12 W for IR)
Dimension	Ø 433.5 mm x 430.4 mm (Ø 17.07″ x 16.94″)
Weight	Approx. 18 kg (39.68 lb.)
Material	ADC12
Operating Condition	-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper	No
Demist	Yes
