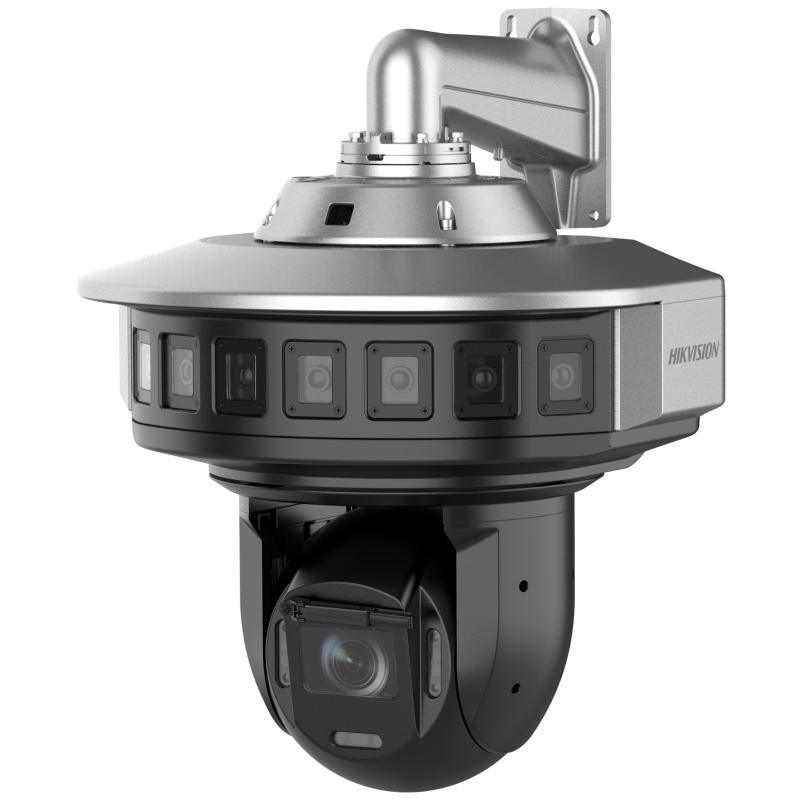

DS-2DP8S845IXG1/LM-LWF/832(F3)
32MP 140° Distortion-free Panoramic & PTZ Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor[Panoramic channel]: 1/1.8″ progressive scan CMOS, [PTZ channel]: 1/1.2″ progressive scan CMOS
- Min. Illumination[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.6, AGC ON), B/W: 0.0001 Lux (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/25 s to 1/30000 s
- Slow ShutterYes
- Day & NightDay,Auto,Schedule,Night
- Zoom[PTZ channel] 45 × optical, 16 × digital
- Max. Resolution11040× 3616
- Lens
- FocusAuto, semi-auto, manual, rapid focus
- Focal Length[Panoramic channel] 8mm; [PTZ channel] 7.2-320mm
- Zoom Speed[PTZ channel] Approx. 8.7 s
- FOV[Panoramic channel] Horizontal FOV 140°, vertical FOV 40°；[PTZ channel]Horizontal FOV 61.1° to 2°, vertical FOV 35.9° to 1.2°, diagonal FOV 68.4° to 2.3°
- Aperture[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.6
- Illuminator
- Supplement Light TypeLaser
- Supplement Light Rangeup to 500 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 500°/s; preset speed: 500°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s
- Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream[Panoramic channel]：50Hz:12.5fps(11040×3616) [Panoramic channel]：50Hz: 25fps (11040×2400,8160×1800,6096×1320) 60Hz: 24fps (11040×2400,8160×1800,6096×1320） [PTZ channel]:50Hz:25fps (3840×2160,2688 × 1520,1920×1080,1280×960,1280×720) 60Hz:30fps (3840×2160，2688 × 1520,1920×1080,1280×960,1280×720)
- Sub-Stream[Panoramic channel]：50Hz: 25fps (3056×656,2160×464) 60Hz: 30fps (3056×656,2160×464) [PTZ channel]:50Hz: 25fps(704×576,640×480,352×288) 60Hz:30fps(704×480,640×480,352×240)
- Third Stream[Panoramic channel]: no [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
- Audio
- Audio CompressionPCM/MP2L2/AAC-LC/G.711/G.722.1/G.726/MP3
- Audio Sampling Rate32kHz/48kHz/8kHz/16kHz
- Network
- Network StorageNAS (NFS, SMB/CIFS), ANR
- ProtocolsSMTP,SNMP,FTP,UPnP,IGMP,HTTP,RTSP,WebSockets,QoS,IPv6,SFTP,DNS,IPv4,HTTPS,NTP,DDNS,PPPoE,TCP/IP,802.1X,RTCP,SSL/TLS,DHCP,WebSocket,UDP,RTP,ICMP
- APIISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- ClientVMS-4200;Hik-Connect
- Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Day/Night SwitchDay, night, auto, scheduled-switch
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
- Defog[Panoramic channel]: no; [PTZ channel]: optical defog
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance),OIS
- Regional ExposureYes
- Regional FocusYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters SwitchYes
- Privacy MaskProgrammable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
- SNR≥ 52 dB
- Interface
- Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
- Fiber Optical1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Alarm7 alarm inputs, 2 alarm outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Event
- Smart EventLine crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
- Smart TrackingManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes
- Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Multi-Target-Type Detection[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
- People DensitySupports detecting the level of people density in the configured area
- Congestion AlarmYes
- General
- Power36 VDC±20%, max. 135 W (including max. 12 W for IR)
- Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
- WiperYes
- DemistYes
- MaterialADC12
- DimensionØ 478 mm x 430mm x 515mm (Ø18.8″ × 16.9″× 20.3″)
- Approx. 16.2kg
- Approval
- SafetyCB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017);
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
