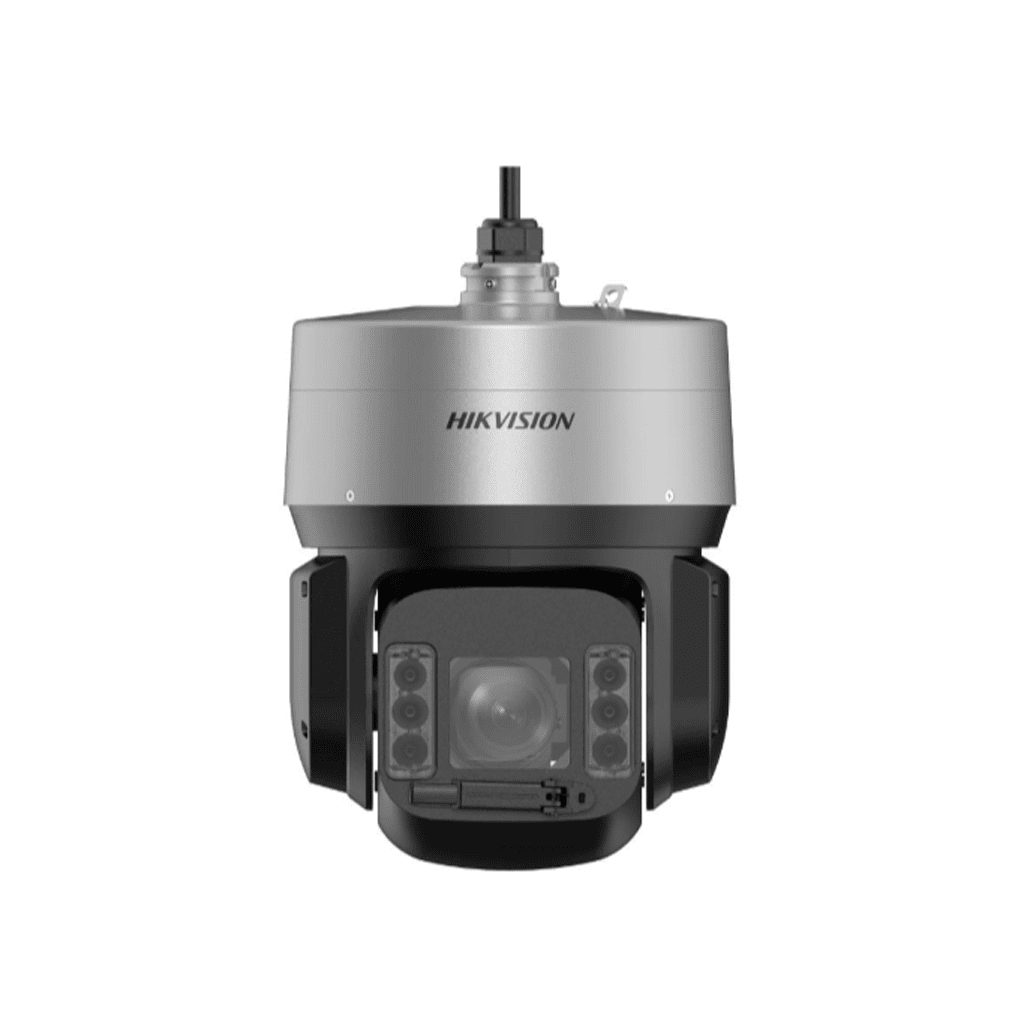

HIKVISION DS-2DV6C425MXG-ELW/4G
4G Vibration Resistant 6C Series 4MP 25X Darkfighter Network Speed Dome
Features
- 1/1.8″ Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- 25 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Excellent low-light performance via DarkFighter 2.0 technology
- Expansive night view with up to 50 m white light distance and 200 m IR distance
- Supports low latency, camera decoding with a delay as low as 100 ms
- Smart Pan-Tilt Correction
- Built-in gyroscope to ensure stable image output
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 1/1.8＂ progressive scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.5, AGC ON),B/W: 0.0001 Lux @ (F1.5, AGC ON),0 Lux with IR |
| Shutter Speed | 1/30 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | 25 × optical,16 × digital |
| Slow Shutter | yes |
| Image | |
| Day/Night Switch | day, night, auto, scheduled-switch |
| SNR | ≥52dB |
| Defog | Optical defog |
| Wide Dynamic Range (WDR) | 150 dB |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | yes |
| Regional Exposure | yes |
| General | |
| Power | 36 VDC± 25%, max. 60 W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class7, max. 60W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater) |
| Dimension | Ø214.9 mm × 288.3 mm (Ø8.5″ × 11.3″) |
| Weight | Approx. 6.1 kg (13.45 lb.) |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% |
| General Function | mirror, password protection, watermark, IP address filter |
