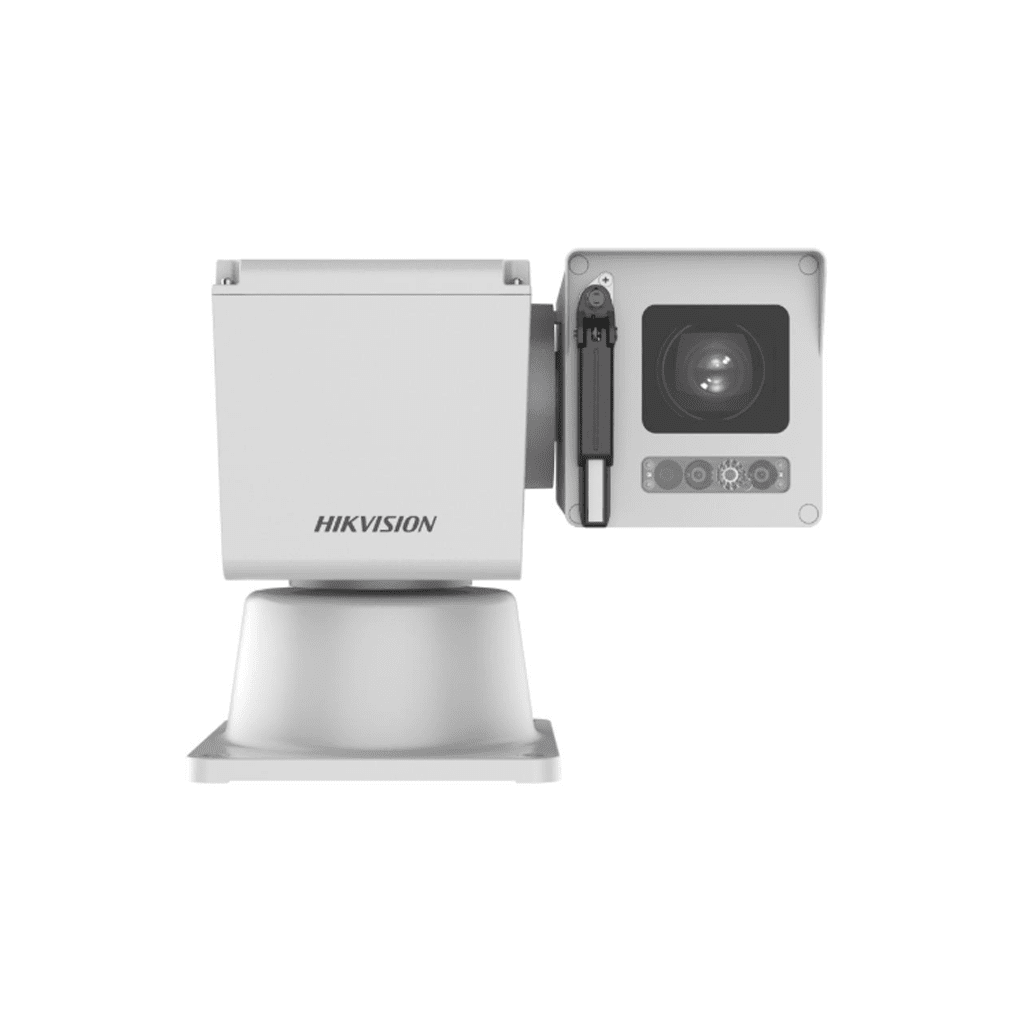

HIKVISION DS-2DY5A432MWG-ELW
4MP 32X Powered by DarkFighter IR Network Positioning System
Features
- 1/2.8″ progressive scan CMOS
- Up to 2560 × 1440 @ 30 fps resolution
- Min. illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
- 32 × optical zoom, 16 × digital zoom
- Low bit rate, True WDR, Defog, Smart IR
- Smart Pan-Tilt Correction
- Up to 100 m IR distance and 80 m white light
- Support Hi-PoE
Specifications
| Camera | |
| Image Sensor | 1/.2.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR |
| Shutter Speed | 1/1 s to 30,000 s |
| Day & Night | IR cut filter |
| Zoom | 32 × optical,16 × digital |
| Slow Shutter | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | True WDR |
| SNR | ≥52dB |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| General | |
| Power | 36 VDC (Max. 30 W, including max. 5 W for IR and max. 2 W for heater), PoE 802.3bt, type3, class6 (Max. 30 W, including max. 5 W for IR and max.2 W for heater) |
| Dimension | 262.6 mm × 155 mm × 245.8 mm (10.34″ × 6.10″ × 9.68″) |
| Weight | Approx. 4.8 kg (10.58 lb.) |
| Material | ADC12 |
| Operating Condition | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90% |
