描述
海康威視 DS-2DY7236IX-A(T5) 是 7 吋 2MP 36 倍光學變焦 DarkFighter 紅外定位系統（雲台），1/1.8 吋 CMOS，具 120 dB 寬動態，紅外最遠 150 米。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

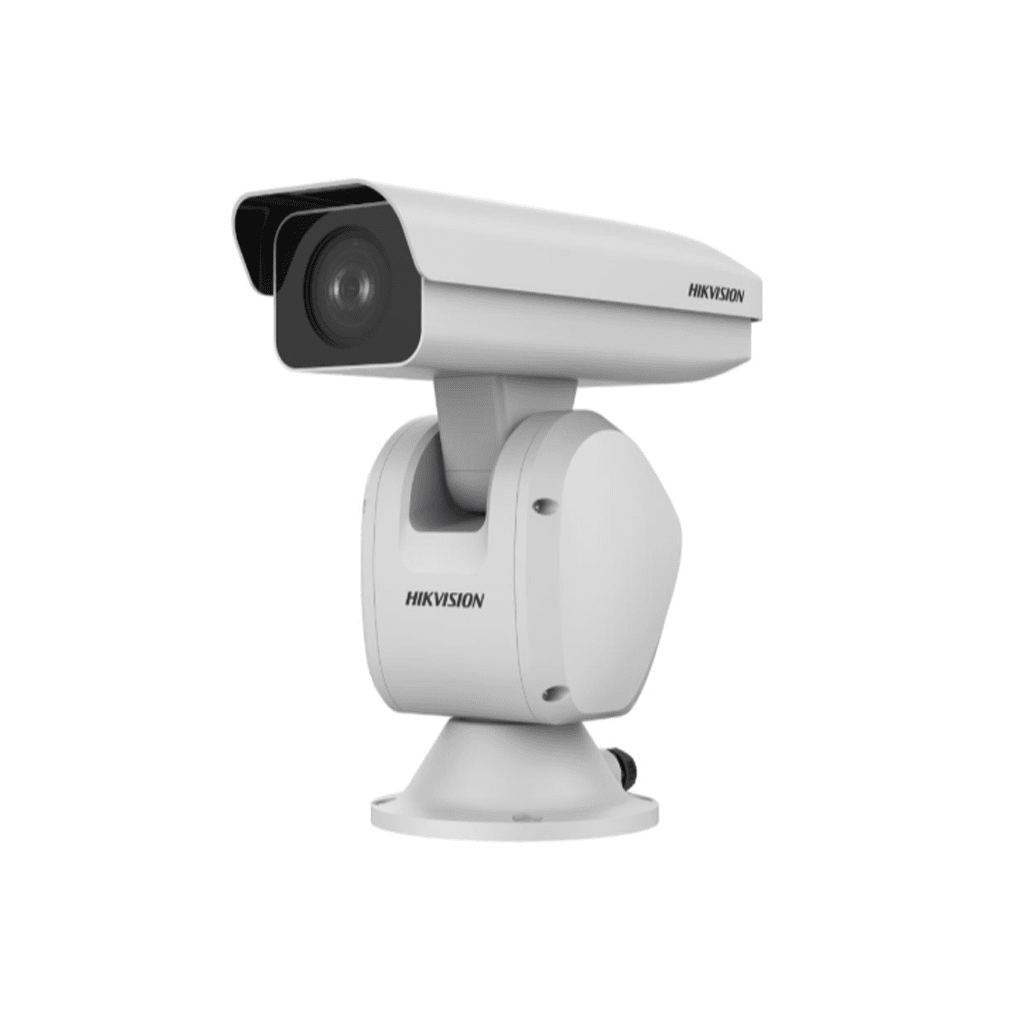

HIKVISION DS-2DY7236IX-A(T5)
7-inch 2 MP 36X DarkFighter IR Network Positioning System
Features
- 1/1.8″ progressive scan CMOS
- Up to 1920 × 1080 @ 30 fps resolution
- Min. illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
- 36 × optical zoom, 16 × digital zoom
- 120 dB WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus
- Up to 150 m IR distance
- Support H.265+/H.265 video compression
Specifications
| Camera | |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON)，0 Lux with IR |
| Shutter Speed | 1/1s~1/30000 s |
| Day & Night | Day, Night, Auto, Schedule |
| Zoom | 36 × optical, 16 × digital |
| Slow Shutter | yes |
| Image | |
| Image Parameters Switch | yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | auto |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ≥52dB |
| Defog | Digital Defog |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| General | |
| Power | 24 VAC (Max. 55 W) |
| Dimension | Φ181 mm × 396 mm × 377.5 mm (Φ 7.13″ × 15.59″ × 14.86″) |
| Weight | 7.6 kg (16.76 lb.) |
| Operating Condition | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F),Humidity: ≤ 90% |
| General Function | Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams |
