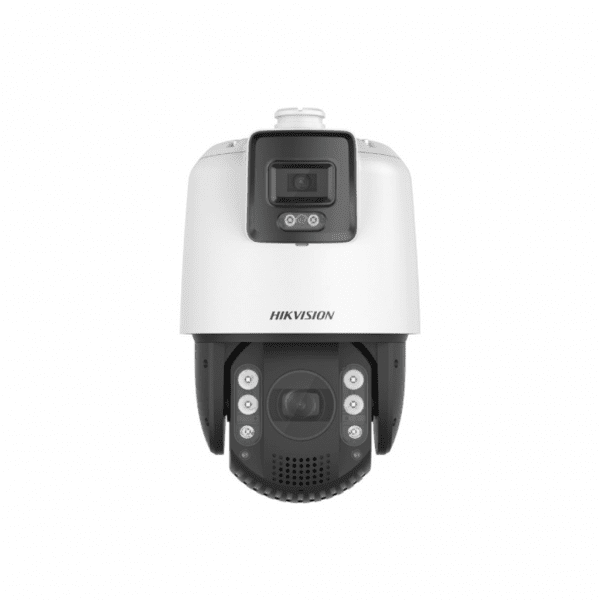

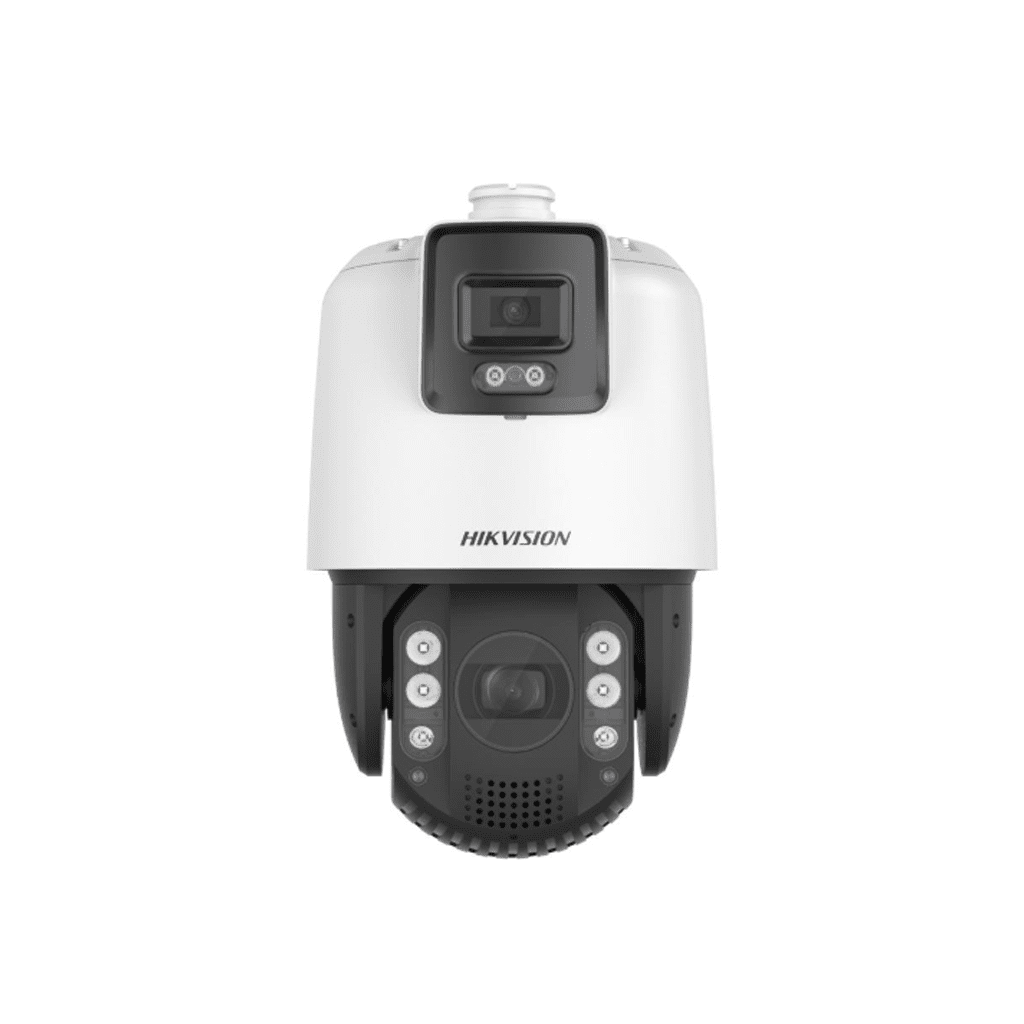

HIKVISION DS-2SE7C144IW-AE(32x/4)(S5)
TandemVu 7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome
Features
- 1/2.8″ Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 32× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
- Expansive night view with up to 200 m IR distance
- Supports 24 VAC & Hi-PoE
- Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable
Specifications
| Camera | |
| Image Sensor | [panoramic channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS |
| Max. Resolution | [panoramic channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440 |
| Min. Illumination | [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | 16x digital |
| Slow Shutter | yes |
| HLC | yes |
| 3D DNR | yes |
| Optical Zoom | 32x |
| Image | |
| Image Parameters Switch | [panoramic channel]: yes; [PTZ channel]: yes |
| Image Settings | saturation||brightness||contrast||sharpness |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ＞52dB |
| Defog | yes |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | polygon region ||mosaic mask ||mask color configurable||[panoramic channel] 8 masks, [PTZ channel] 24 masks |
| Regional Focus | yes |
| Regional Exposure | yes |
| General | |
| Power | 24 VAC, Hi-PoE |
| Dimension | Ø220 mm × 382.1 mm (Ø 8.7″ × 15.0″) Approx. 6 kg (13.23 lb.) |
| Material | ADC12 |
| Operating Condition | -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH |
| General Function | mirror, password protection, watermark, IP address filter |
| Demist | Demist by heating the glass |
| Power Consumption and Current | Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light |
