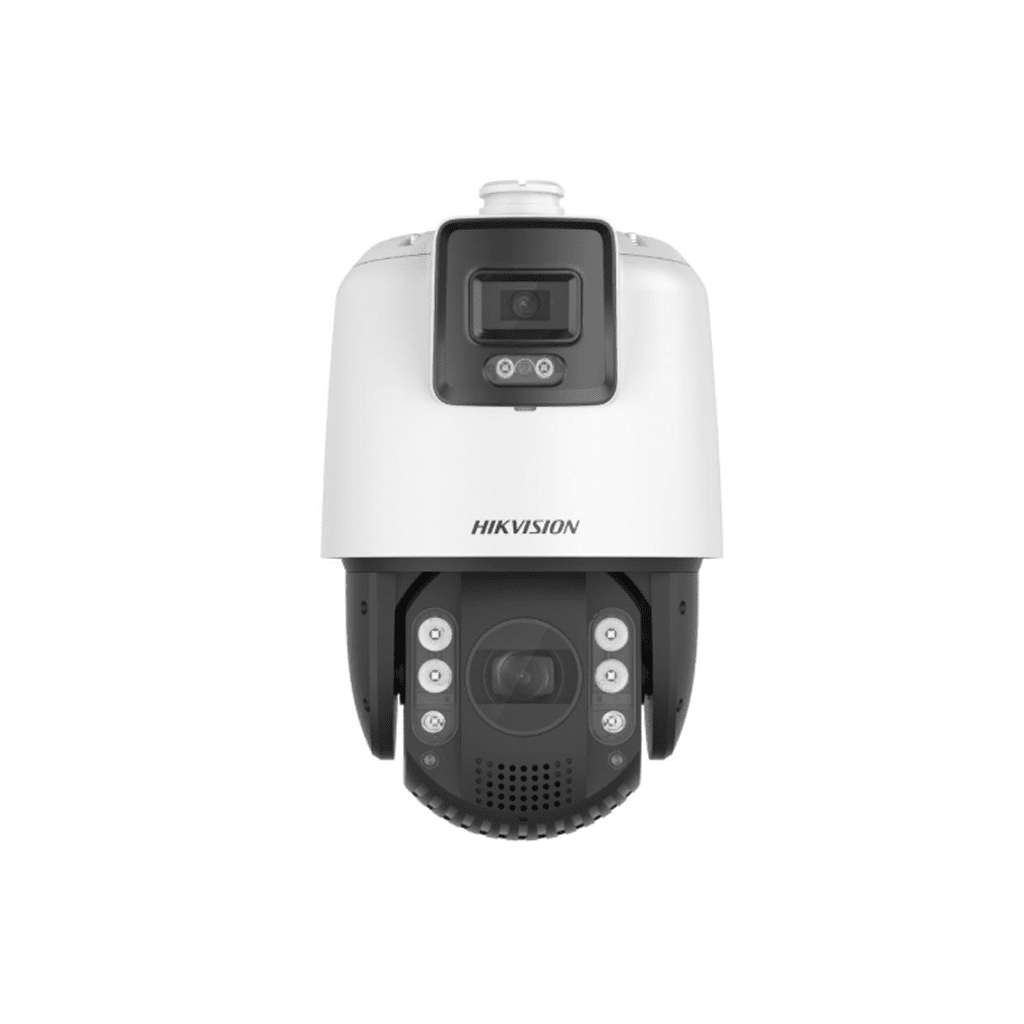

HIKVISION DS-2SE7C425MW-AEB(14F1)(P3)
TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome
Features
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 25× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 200 m IR distance
- Supports 24 VAC & Hi-PoE
- Active strobe light and audio alarm to warn intruders off
Specifications
| Camera | |
| Image Sensor | [Bullet channel]: 1/1.8″ Progressive Scan CMOS; [PTZ channel]: 1/1.8″ progressive scan CMOS |
| Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
| Min. Illumination | [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | [PTZ channel] 25 × optical, 16 × digital |
| Slow Shutter | yes |
| HLC | yes |
| 3D DNR | yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | saturation||brightness||contrast||sharpness |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ＞52dB |
| Defog | yes |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Regional Focus | yes |
| Regional Exposure | yes |
| General | |
| Power | 24 VAC, Hi-PoE |
| Dimension | Ø 220 mm × 382.1 mm (Ø 8.66″ × 15.04″) Approx. 6 kg (13.23 lb.) |
| Material | ADC12 |
| Operating Condition | -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH |
| General Function | mirror, password protection, watermark, IP address filter |
| Demist | Demist by heating the glass |
| Power Consumption and Current | Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light |
