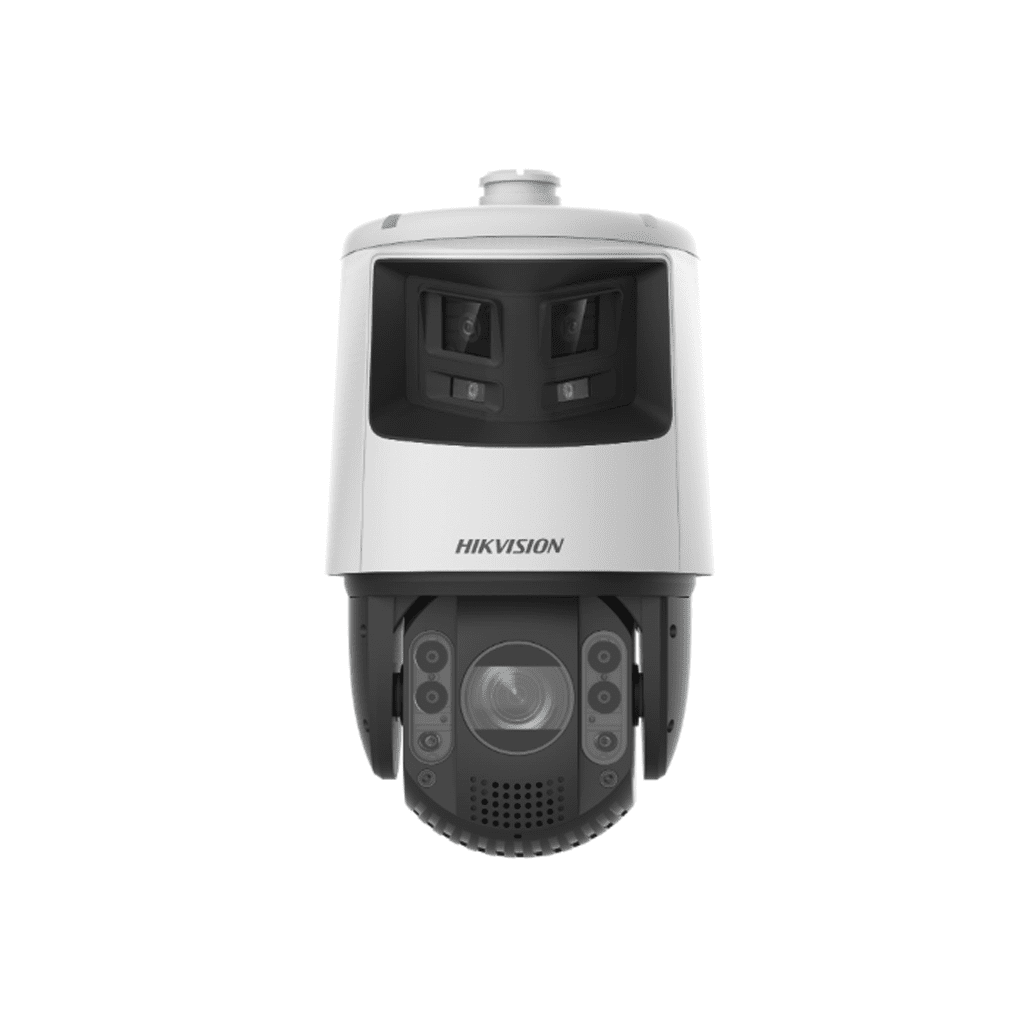

HIKVISION DS-2SE7C425MWG-EB/26(F0)

TandemVu 6+4 MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome

Panoramic channel supports image stitching, with 180° horizontal field of view
High quality imaging with 6 MP resolution in panoramicand channel and 4 MP resolution in PTZ channel
Secures an expansive area with 25× optical zoom and 16× digital zoom
AcuSense technology focuses on human and vehicle targets classification and supports face capture to detect, capture and select faces in motion
Expansive night view with up to 200 m IR distance in PTZ channel and 30 m white light in panoramic channel
Active strobe light and audio alarm to warn intruders off
Smart-linkage between panoramic channel and PTZ channel

Camera
Image Sensor	[Panoramic channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
Max. Resolution	[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
Min. Illumination	[PTZ channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed	1 s to 1/30,000 s
Day & Night	IR cut filter
Zoom	25 × optical,16 × digital
Slow Shutter	yes
HLC	yes
3D DNR	yes
Image Parameters Switch	Yes
Image Settings	saturation, brightness, contrast, sharpness
Day/Night Switch	Day,night,auto,schedule
Wide Dynamic Range (WDR)	[Panoramic channel] Digital WDR, [PTZ channel] 120 dB
SNR	＞52dB
Defog	yes
Image Stabilization	yes
Image Enhancement	BLC,HLC,3D DNR
Privacy Mask	24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus	yes
Regional Exposure	yes
General
Power	24 VAC, Max. 60 W, Hi-PoE
Dimension	Ø222.3 mm × 387.2 mm (Ø8.75″ × 15.2″) Approx. 6 kg (13.23 lb.)
Material	ADC12,Plastic,PC+10%GF
Operating Condition	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function	mirror,watermark,password protection,IP address filter
Demist	Yes
