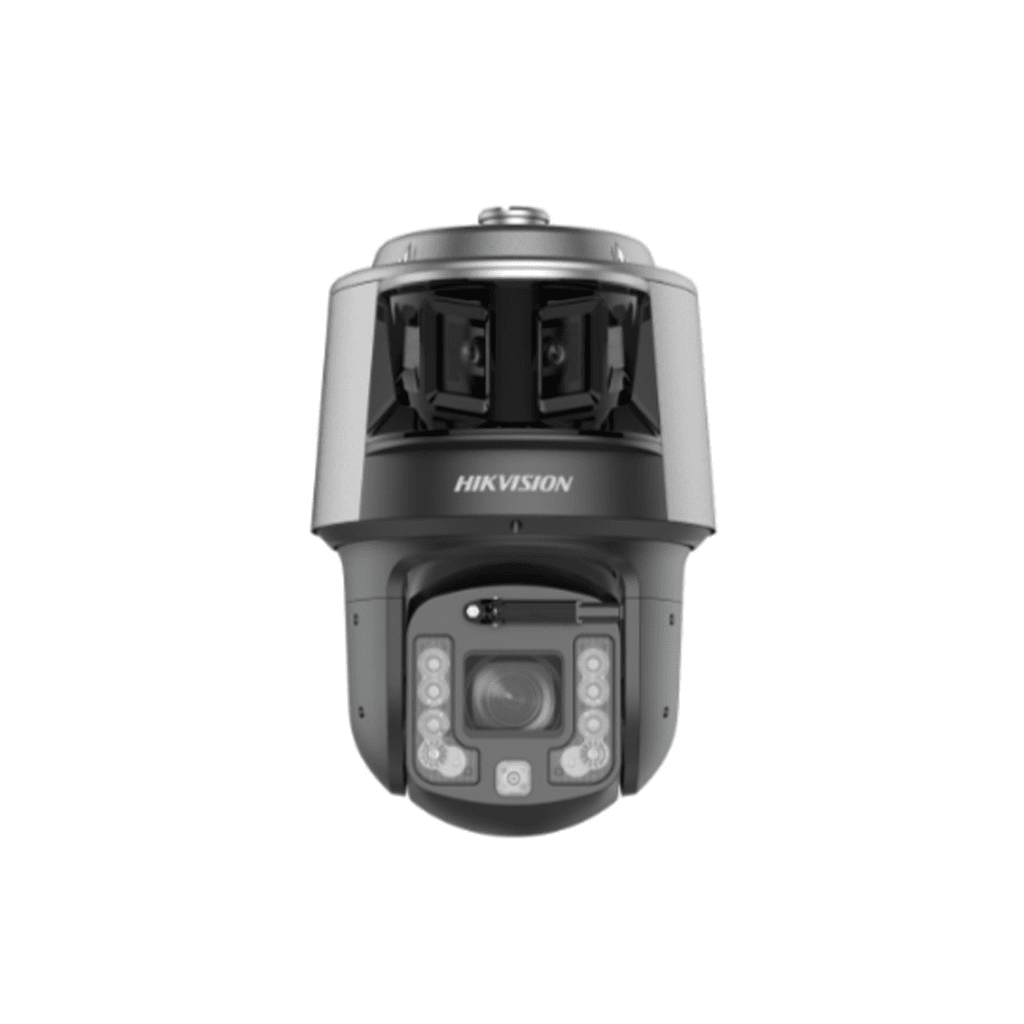

HIKVISION DS-2SF7C420MXG0-EL(W)(Y)/2C

TandemVu 7C Series Panoramic 4 MP 20X DarkFighter Network Speed Dome

Captures a large area and great details at the same time
High quality imaging with 12 MP resolution for bullet channel
24/7 colorful imaging and excellent low-light performance with DarkFighter technology
Bullet channel tilt adjustable from 12° to 24°
Secures an expansive area with 20 × optical zoom and 16 × digital zoom
Expansive night view with up to 30 m white light distance and 250 m IR distance
Supports deep learning functions
Water and dust resistant (IP67)

Camera
Image Sensor	[Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Min. Illumination	[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light, [PTZ channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 lux with IR
Shutter Speed	1/25 s to 1/30000 s
Slow Shutter	Yes
Day & Night	[Bullet channel] Color, [PTZ channel] IR cut filter
Max. Resolution	[Bullet channel] 5344 × 2256, [PTZ channel] 2688 × 1520
Day/Night Switch	Day,night,auto,schedule
Image Enhancement	HLC,3D DNR
Wide Dynamic Range (WDR)	[Bullet channel] No, [PTZ channel] 120 dB
Defog	Optical defog
Image Stabilization	EIS
Regional Exposure	Yes
Regional Focus	[Bullet channel] No, [PTZ channel] Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch	Yes
Privacy Mask	[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR	≥ 52 dB
General
General Function	mirror,password protection
Power	36 VDC ± 25%, max. 60 W
Operating Condition	-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper	Model with -W: Yes, Model without -W: No
Demist	Yes
Material	ADC12
Dimension	Ø260 mm × 382.69 mm (Ø10.24″ × 15.07″)
Weight	Approx. 7.1 kg (15.65 lb.)
