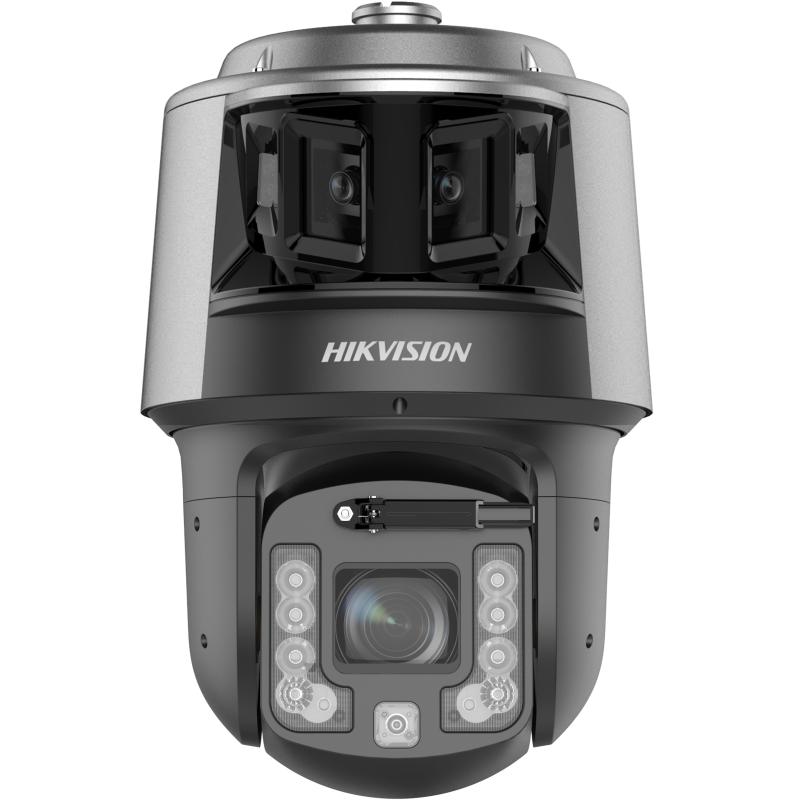

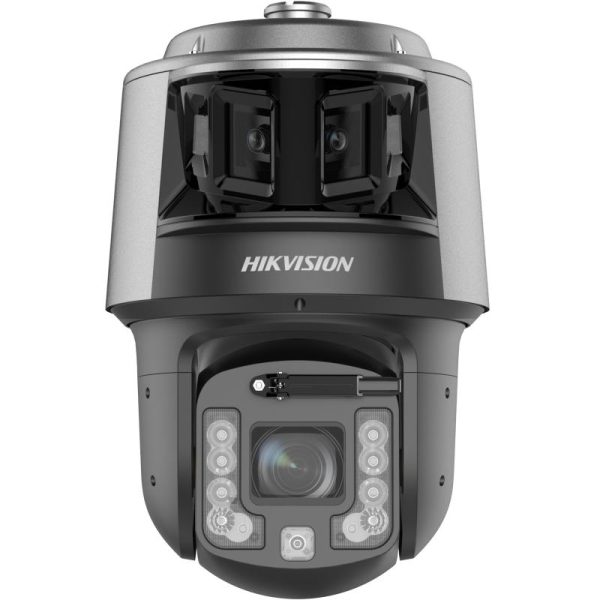

DS-2SF7C442MXG1-EL(W)(Y)/26
DeepinView TandemVu 7C Series Panoramic 4 MP 42X DarkFighter Network Speed Dome
DS-2SF7C442MXG1-EL(W)(Y)/26 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS |
|---|---|
| Min. Illumination | [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0002 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1/25 s to 1/30000 s |
| Slow Shutter | Yes |
| Day & Night | [Bullet channel] Color, [PTZ channel] IR cut filter |
| Zoom | [PTZ channel] 42 × optical, 16 × digital |
| Max. Resolution | [Bullet channel] 3680 × 1656, [PTZ channel] 2688 × 1520 |
Lens
| Focus | Auto,semi-auto,manual |
|---|---|
| Zoom Speed | [Bullet channel] No, [PTZ channel] approx. 5.6 s |
| Focal Length | [Bullet channel] 2.8 mm, [PTZ channel] 6 to 252 mm |
| FOV | [Bullet channel] horizontal field of view: 190° ± 10°, vertical field of view: 80° ±10°, diagonal field of view: 198° ± 10°, [PTZ channel] horizontal field of view: 59.1° to 2°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3° |
| Aperture | [Bullet channel] F1.0, [PTZ channel] F1.2 |
Illuminator
| Supplement Light Type | [Bullet channel] White Light and IR, [PTZ channel] IR |
|---|---|
| Supplement Light Range | [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m |
| Smart Supplement Light | Yes |
PTZ
| Movement Range (Pan) | [PTZ channel] 0° to 360° |
|---|---|
| Movement Range (Tilt) | [Bullet channel] 12° to 24°, [PTZ channel] -20° to 90° |
| Pan Speed | [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed | [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | [Bullet channel] No, [PTZ channel] Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
DORI
| O2DCPVS | [Panoramic channel] Wide: Overview: 48.3 m, Outline: 24.1 m, Discern: 12.1 m, Perceive: 7.7 m, Characterize: 3.9 m, Validate: 1.9 m, Scrutinize: 0.6 m ； [PTZ channel] Wide: Overview: 103.4 m, Outline: 51.7 m, Discern: 25.9 m, Perceive: 16.6 m, Characterize: 8.3 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 4344.8 m, Outline: 2172.4 m, Discern: 1086.2 m, Perceive: 695.2 m, Characterize: 347.6 m, Validate: 173.8 m, Scrutinize: 57.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces. |
|---|
Video
| Main Stream | [Bullet channel] 50 Hz: 25 fps (3632 ×1632，3680 ×1656) 60 Hz: 30 fps (3632 ×1632，3680 ×1656) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only. |
|---|---|
| Sub-Stream | [Bullet channel] 50 Hz: 25 fps (960 × 432,1200×536), 60 Hz: 25 fps (960 × 432,1200×536),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240) |
| Third Stream | [Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile,Main profile,High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
Audio
| Audio Compression | G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM |
|---|---|
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1) |
| Audio Sampling Rate | 8 kHz,16 kHz,32 kHz,48 kHz |
| Environment Noise Filtering | Yes |
Network
| Protocols | DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6 |
|---|---|
| API | ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP |
| Security | Password protection,complicated password,watermark,control timeout settings,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log,host authentication (MAC address),TLS 1.3,TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,HikCentral Pro,Hik-Connect |
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
AI Open Platform
| Model Specification | Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time. |
|---|---|
| Task Type | Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification. |
| Event Type | Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule |
| Rule Setting | Up to 16 rules. Supports moving target filtering and shield region setting. |
| Day/Night Switch | Day,night,auto,schedule |
|---|---|
| Image Enhancement | HLC,3D DNR |
| Wide Dynamic Range (WDR) | [Bullet channel] 120 dB, [PTZ channel] 150 dB |
| Defog | Digital defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Regional Exposure | Yes |
| Regional Focus | [Bullet channel] No, [PTZ channel] Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| SNR | ≥ 52 dB |
Supplement Detection
| Satellite Positioning | No |
|---|---|
| Gyroscope | Yes |
| Compass | No |
Interface
| Ethernet Interface | 1 RJ45 100M self-adaptive Ethernet port |
|---|---|
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB . |
| Alarm | 7 input(s), 2 output(s) |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
Event
| Basic Event | [PTZ channel & bullet channel] alarm input and output, exception,[PTZ channel] video tampering alarm |
|---|---|
| Smart Event | Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection,loitering detection,people gathering detection,fast moving detection,parking detection |
| Linkage | [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan), [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording |
Deep Learning Function
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
|---|---|
| Multi-Target-Type Detection | [PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle |
| Face Capture | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures |
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
| People Density | Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes |
| Intelligent Transportation System | Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. |
| Regional People Counting | Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B) |
Linkage and Tracking
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
|---|---|
| Smart Linkage | Manual tracking, auto tracking, tracking takeover, linked tracking capture |
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. |
General
| Power | 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater) |
|---|---|
| General Function | mirror,password protection |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Wiper | Yes |
| Demist | Yes |
| Material | ADC12 |
| Dimension | Ø260 mm × 382.9 mm (Ø10.24" × 15.07") |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Approval
| EMC | CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021) |
|---|---|
| Safety | CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014) |
| Environment | CE-RoHS (2011/65/EU and its amendment (EU)2015/863) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line |
| Anti-Corrosion Protection | Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No |
