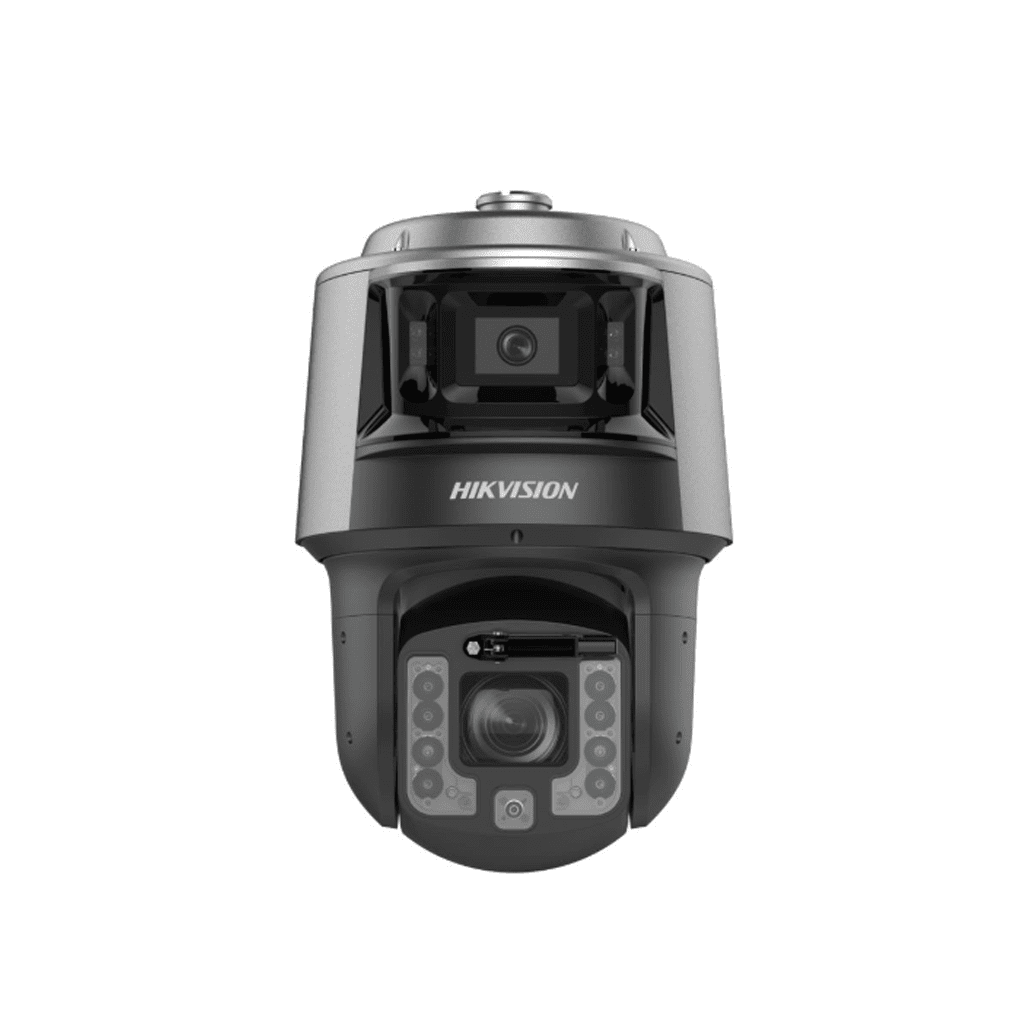

HIKVISION DS-2SF7C825MXG2/LM-EL(W)(Y)/14
DeepinViewX TandemVu 7C Series 8 MP 25X DarkFighter Network Speed
Features
- Dedicated large scale AI model for perimeter protection
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution for bullet channel and 8 MP resolution for PTZ channel
- 24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
- Bullet channel tilt adjustable from 7° to 17°
- Secures an expansive area with 25 × optical zoom and 16 × digital zoom
- Expansive night view with up to 80 m hybrid light distance and 400 m IR distance
- Supports deep learning functions
- Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
- Smart Pan-Tilt Correction
Specifications
| Camera | |
| Image Sensor | [Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON) |
| Shutter Speed | 1/25 s to 1/30000 s |
| Slow Shutter | Yes |
| Day & Night | [Bullet channel] Color, [PTZ channel] IR cut filter |
| Zoom | [PTZ channel] 25 × optical, 16 × digital |
| Max. Resolution | [Bullet channel] 2688 × 1520, [PTZ channel] 3840 × 2160 |
| Image | |
| Day/Night Switch | Day,night,auto,schedule |
| Wide Dynamic Range (WDR) | [Bullet channel] 120 dB, [PTZ channel] 140 dB |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Regional Exposure | Yes |
| Regional Focus | [Bullet channel] No, [PTZ channel] Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| SNR | ≥ 52 dB |
| General | |
| Power | 36 VDC± 25%, max. 90 W (Max. 65 W, including max. 15 W for IR and max. 8 W for heater), PoE 802.3bt, type4, class8, max. 90W (Max. 65W, including max. 15W for IR and max. 8 W for heater) |
| General Function | mirror,password protection |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Wiper | Yes |
| Demist | Yes |
| Material | ADC12 |
| Dimension | Ø260 mm × 382.9 mm (Ø10.24″ × 15.07″) |
| Weight | Approx. 7.8 kg (17.196 lb.) |
