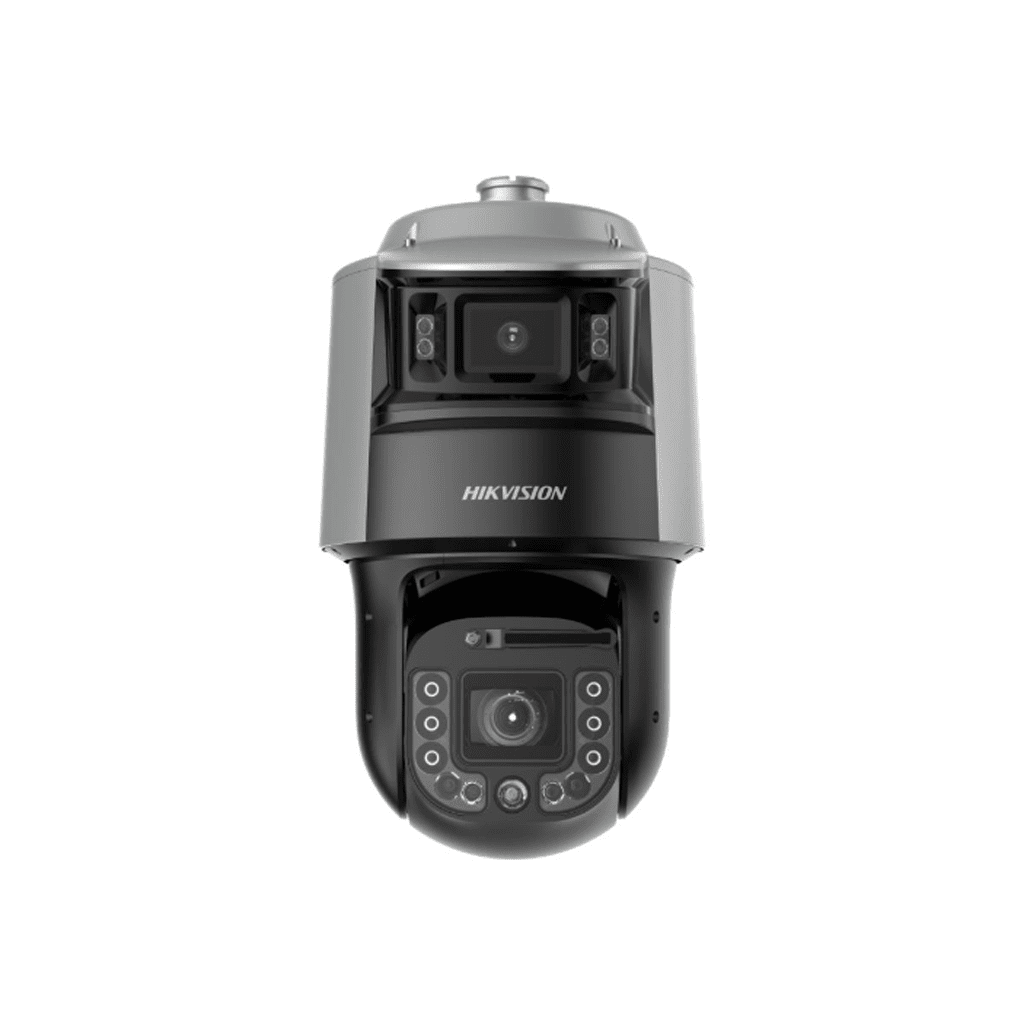

HIKVISION DS-2SF8C432MXG-WD/14(F1)
TandemVu 8C Series 4MP 32X Water-Level Detection Darkfighter Network Speed Dome
Features
- Built-in gauge reading algorithm to automatically get the readings of standard water level gauges
- Detects water level range from 0 to 40 m, within 80 m distance, with minimum scale of 1 cm and detection accuracy of ±2 cm
- Performance mode, power saving mode, and sleep mode are available, the minimum power consumption is whitin 5 W
- With high accuracy PT system, the moving hysteresis error is less than 0.08°
- The platform can wake up the device via remote command in sleep mode
- High quality imaging with max. resolution of 2560 × 1440 @30 fps
Specifications
| Camera | |
| Image Sensor | [Bullet channel] 1/1.8″” Progressive Scan CMOS, [PTZ channel] 1/1.8″” Progressive Scan CMOS |
| Min. Illumination | 2560 × 1440 |
| Shutter Speed | [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR |
| Slow Shutter | 1/1~1/30000 s |
| Day & Night | [Bullet channel] 24/7 color imaging, [PTZ channel] IR cut filter |
| Zoom | [PTZ channel] 32 × optical, 16 × digital |
| Max. Resolution | yes |
| Image | |
| Image Parameters Switch | yes |
| Image Settings | saturation, brightness, contrast, sharpness |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ≥52dB |
| Defog | Optical defog |
| Image Stabilization | yes |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Regional Focus | [Bullet channel] No, [PTZ channel] Yes |
| Regional Exposure | yes |
| General | |
| Power | 12 VDC/5 A max. 60 W (including 6 W for heater and 6 w for supplement light in panoramic channel, and 6 W for heater and 12 w for supplement light in PTZ channel) |
| Dimension | Ø243 mm × 424 mm (Ø9.57″ × 16.69″) |
| Weight | Approx. 9.845 kg (21.7 lb.) |
| Material | ADC12 |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 90% or less (non-condensing) Operationg temperature for the speaker: -30 ℃ to 55 ℃ (-22 °F to 131 °F) |
| General Function | mirror,password protection,watermark,IP address filter |
| Wiper | yes |
| Demist | yes |
