描述
海康威視 DS-2SF8C448MXG1-EL(W)(Y)/26 是 TandemVu 8C 系列全景加 4MP 48 倍光學變焦 DarkFighter 網絡快球，槍機通道 6MP，白光最遠 30 米、紅外最遠 500 米。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

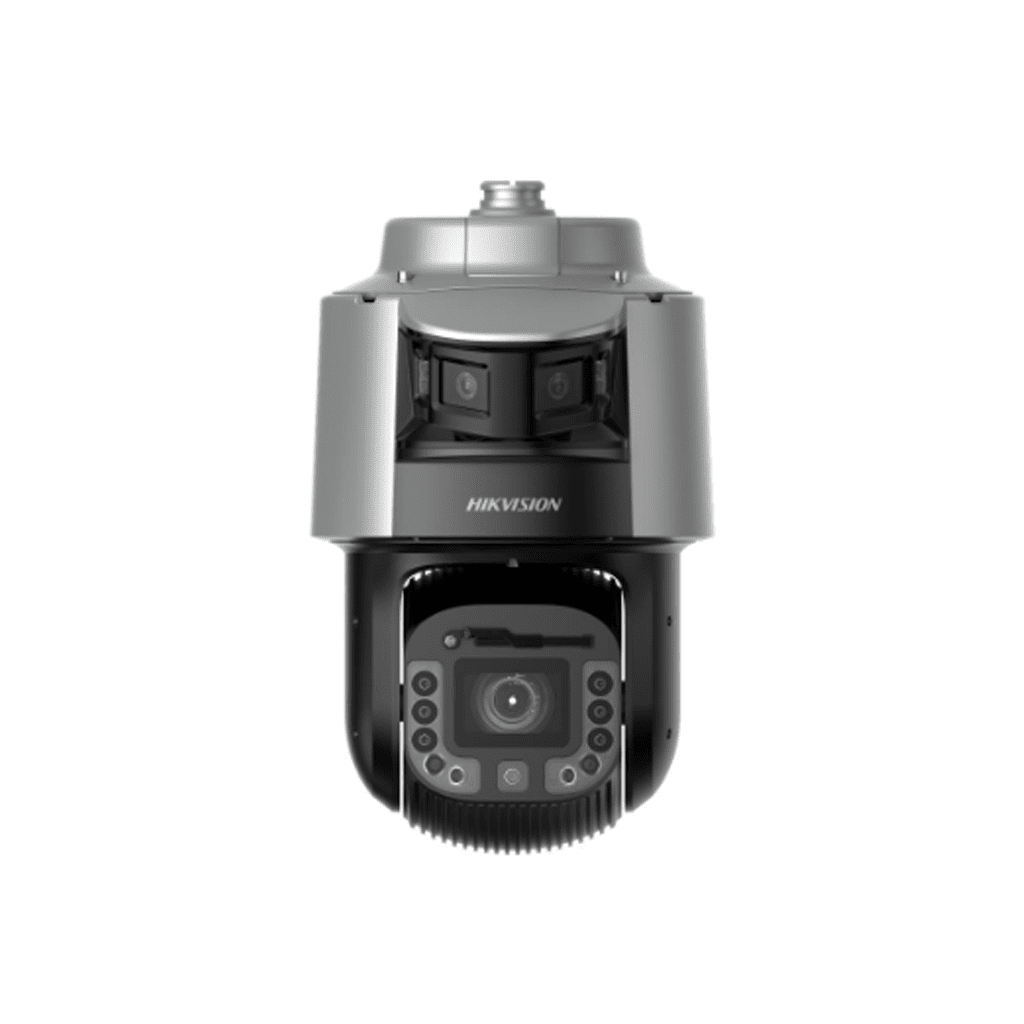

HIKVISION DS-2SF8C448MXG1-EL(W)(Y)/26
TandemVu 8C Series Panoramic 4 MP 48X DarkFighter Network Speed Dome
Features
- Captures a large area and great details at the same time
- High quality imaging with 6 MP resolution for bullet channel
- 24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
- Panoramic channel tilt adjustable from 12° to 24°
- Secures an expansive area with 48 × optical zoom and 16 × digital zoom
- Expansive night view with up to 30 m white light distance and 500 m IR distance
- Supports deep learning functions
- Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
- Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
Specifications
| Camera | |
| Image Sensor | [Bullet channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/1.2″ Progressive Scan CMOS |
| Min. Illumination | [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 lux with IR |
| Shutter Speed | 1 s to 1/30000 s |
| Slow Shutter | Yes |
| Day & Night | [Panoramic channel] Auto,Night,Schedule,Day, [PTZ channel] Auto,Night,Schedule,Day |
| Zoom | [PTZ channel] 48 × optical, 16 × digital |
| Max. Resolution | [Bullet channel] 3680 × 1656, [PTZ channel] 2688 × 1520 |
| Image | |
| Wide Dynamic Range (WDR) | [Bullet channel] 120 dB, [PTZ channel] 150 dB |
| Day/Night Switch | Day,night,auto,schedule |
| Image Enhancement | HLC,3D DNR |
| Defog | Optical defog |
| Image Stabilization | OIS |
| Regional Exposure | Yes |
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| SNR | ≥ 52 dB |
| General | |
| General Function | mirror,password protection |
| Power | 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F) |
| Wiper | Yes |
| Demist | Yes |
| Material | ADC12 |
| Dimension | Ø290 mm × 453.2 mm (Ø11.42″ × 17.84″) |
| Weight | Approx. 10.5 kg (23.15 lb.) |
