描述

海康威視 DS-2SF8C848MXG1-EL(W)(Y)/26 是 TandemVu 8C 系列全景 8MP 48 倍 DarkFighter 網絡快球，槍機通道 6MP、快球通道 8MP，可同時監察大範圍及細節。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：海康威視閉路電視安裝、閉路電視安裝。

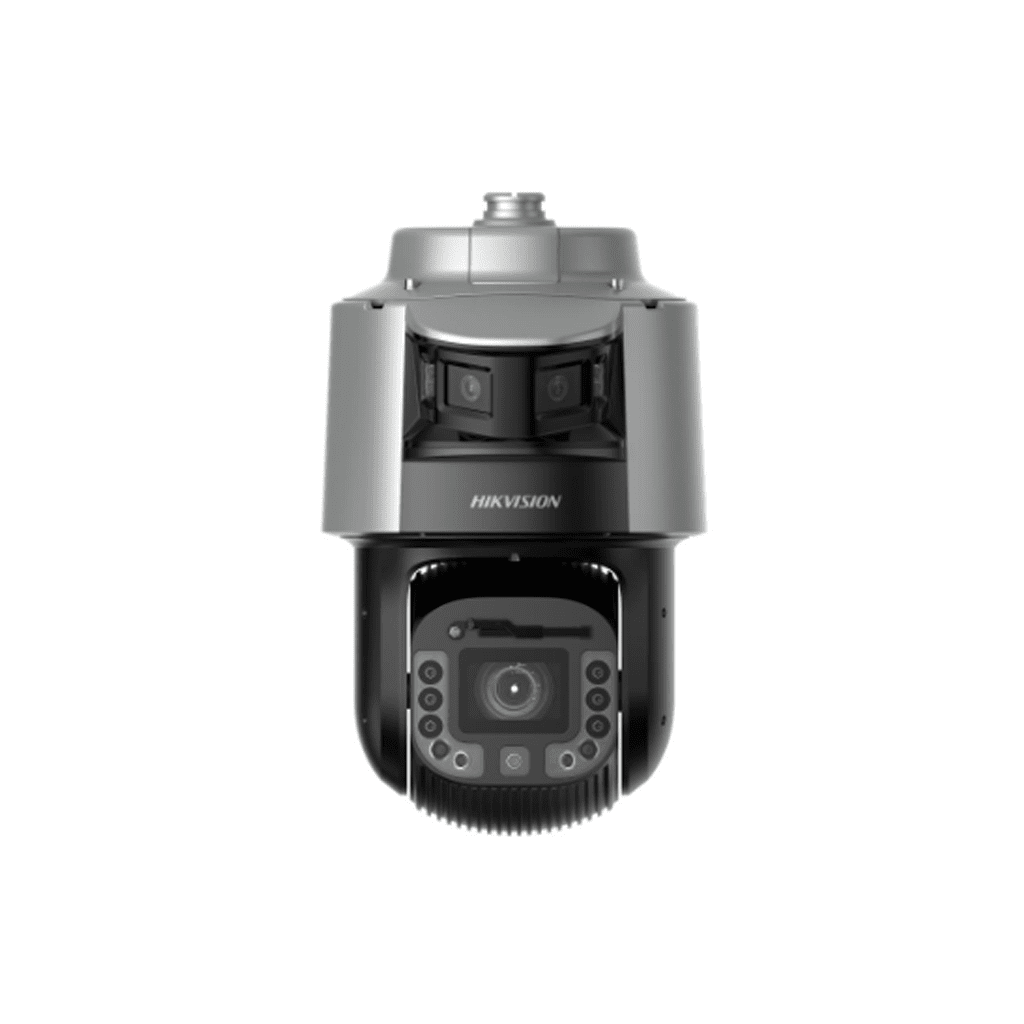

HIKVISION DS-2SF8C848MXG1-EL(W)(Y)/26

TandemVu 8C Series Panoramic 8 MP 48X DarkFighter Network Speed Dome

Features

Captures a large area and great details at the same time
High quality imaging with 6 MP resolution for bullet channel, 8MP for PTZ channel
24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
Panoramic channel tilt adjustable from 12° to 24°
Secures an expansive area with 48 × optical zoom and 16 × digital zoom
Expansive night view with up to 30 m white light distance and 500 m IR distance
Supports deep learning functions
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events

Specifications

Camera
Image Sensor	[Bullet channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/1.2″ Progressive Scan CMOS
Min. Illumination	[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 lux with IR
Shutter Speed	1 s to 1/30000 s
Slow Shutter	Yes
Day & Night	[Panoramic channel] Color, [PTZ channel] IR cut filter
Zoom	[PTZ channel] 48 × optical, 16 × digital
Max. Resolution	[Panoramic channel] 3680 × 1656, [PTZ channel] 3840 × 2160
Wide Dynamic Range (WDR)	[Bullet channel] 120 dB, [PTZ channel] 140 dB
Day/Night Switch	Day,night,auto,schedule
Image Enhancement	HLC,3D DNR
Defog	Optical defog
Image Stabilization	OIS
Regional Exposure	Yes
Regional Focus	[Panoramic channel] No, [PTZ channel] Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch	Yes
Privacy Mask	[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR	≥ 52 dB
General
General Function	mirror,password protection
Power	36 VDC± 25%, max. 90 W (Max. 62 W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 62 W, including max. 15 W for IR and max. 8 W for heater)
Operating Condition	-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper	Yes
Demist	Yes
Material	ADC12
Dimension	Ø290 mm × 453.2 mm (Ø11.42″ × 17.84″)
Weight	Approx. 10.5 kg ( 23.15 lb.)
