HIKVISION DS-2TD2608-2/QA/FP Thermal & Optical Bi-spectrum Network Bullet Camera 是海康威視熱成像網絡鏡頭，用於周界、廠區或車場。香港防盜為安裝商及經銷商。須現場測試機位、補光同網絡；規格以下方原廠資料為準。

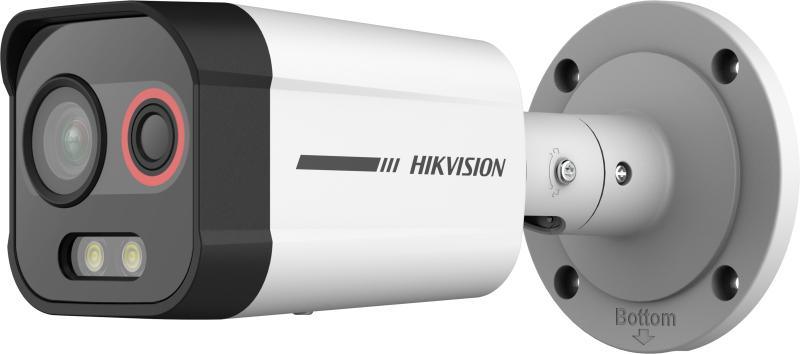

DS-2TD2608-2/QA/FP
Thermal & Optical Bi-spectrum Network Bullet Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution96 × 72
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 55 mK (25°C, F1.0)
- Focal Length2.6 mm
- IFOV4.62mrad
- Field of View25.0° × 18.75° (H × V)
- Min. Focusing Distance0.1 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/1.8″ Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0003 Lux @（F1.0，AGC ON）, 0 Lux with Light
- Shutter Speed1 s to 1/100,000 s
- Focal Length6 mm
- Field of View56.0° × 30° (H × V)
- Aperture (Range)F1.0
- WDR120 dB
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- Light SupplementWarm Light
- Light Supplement Distance30 m
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm Yes 1 preset voice alerts 6 importable user-defined voice alerts
- Smart Function
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 300°C (-4°F to 572°F)
- Temperature AccuracyMax (±4°C/7.2°F, ±4%), for ambient temperature 15°C to 35°C (59°F to 95°F) Max (±8°C/14.4°F, ±8%)，for other ambient temperature
- Fire DetectionSupport
- Smoking DetectionSupport
- Video and Audio
- Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288，320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-streamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
- Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+ Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
- Power Consumption12 VDC ± 25%: 0.7 A, Max.8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/HumidityTemperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less
- Protection LevelIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing
- Dimensions211.5 mm × 105 mm × 105 mm (8.32″ × 4.13″ × 4.13″)
- 869.2 g (1.92 lb)
