描述
HIKVISION DS-2TD4667T-25A4/W Bi-spectrum Mobile Thermal PTZ Camera 是海康威視熱成像網絡鏡頭，用於周界、廠區或車場。香港防盜為安裝商及經銷商。須現場測試機位、補光同網絡；規格以下方原廠資料為準。

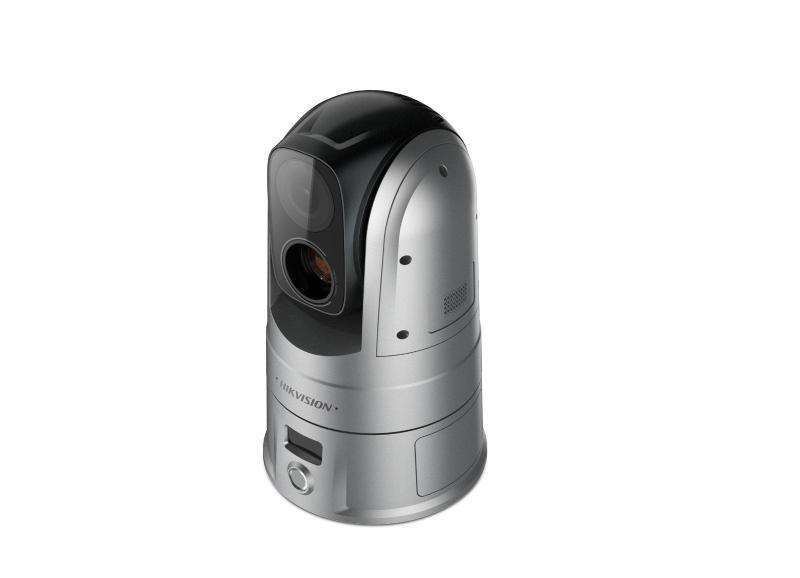

DS-2TD4667T-25A4/W
Bi-spectrum Mobile Thermal PTZ Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVOx Uncooled Focal Plane Arrays
- Resolution640 x 512
- Spectral Range8 μm to 14 μm
- Pixel Pitch17 μm
- Focal Length25 mm
- Focus ModeAthermalized
- IFOV0.68 mrad
- NETDLess than 35 mK (@25 °C,F#=1.0)
- Field of View24.6° × 19.8° (H × V)
- ApertureF1.0
- Digital Zoom×1, ×2, ×4, ×8
- Min. Focusing Distance5 m
- Optical Module
- Image Sensor1/2.8″ Progressive Scan CMOS
- Resolution2560 × 1440, 4 MP
- Field of View55°×33° (H × V)~2.4°×1.4° (H × V)
- Focal Length4.8 mm～120 mm，25X
- Min. IlluminationColor: 0.05 Lux @ (F1.3, AGC ON), B/W: 0.01 Lux @ (F1.3, AGC ON)
- Aperture (Range)F1.0-F1.6
- Focus ModeSemi-auto & Manual
- Digital Zoom×1, ×2, ×4, ×8，×16
- Day & Night ModeIR cut filter with auto switch
- Shutter Speed1/1 s to 1/30,000 s
- WDR120 dB
- Optical DefogNo, support defog by algorithm
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationSupported in white hot and black hot mode
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
- Pan SpeedConfigurable, From 0.2°/s to 200°/s
- Tilt SpeedConfigurable, From 0.2°/s to 100°/s
- Proportional ZoomYes
- Presets300 in total, 273 are configurable.
- Patrol Scan8; Up to 32 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- Illuminator
- IR DistanceUp to 100m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.
- Temperature Measurement3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 550°C (-4°F to 1022°F)
- Temperature AccuracyMax (± 2°C, ±2%)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable
- Video and Audio
- Main StreamOptical channel 50 Hz: 25 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 x 576, 352 x 288, 384 x 288)
- Sub-streamOptical channel 50 Hz: 25fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288)
- Video CompressionMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Video and Image
- Color Palettes15 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
- Mobile Communication
- SIM Card TypeMicroSIM
- FrequencyLTE FDD: B 1/3/5/7/8/20/28 LTE TDD: B 38/40/41 WCDMA: B 1/5/8
- StandardLTE FDD/LTE TDD/WCDMA
- Wi-FiWi-Fi standard: IEEE802.11b, 802.11g, 802.11n Frequency range: 2.4GHz~2.4835GHz Channel bandwidth: Support 20MHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Interface
- Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio InputBuilt-In 2 Mics
- Audio OutputBuilt-In Speaker
- Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply12VDC ± 20%, two-core terminal
- Power Consumption2A, max. 20 W
- Working Temperature/HumidityFrom -20°C to 60°C (-68°F to 140°F); Humidity: 90% or Less
- Protection LevelIP67 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- DimensionsØ176mm×299mm
- Approx. 4.5 kg (10.8 lb)
- MountMagnetic suction mounting
- Detection Range Table/Smart Function Range
- VCA Range for Humans175 m
- VCA Range for Vehicles525 m
- Battery
- Battery TypeLithium battery
- Battery Voltage10.9V
- Battery Capacity10.5 Ah
- Max. Charging Voltage12.6 V
