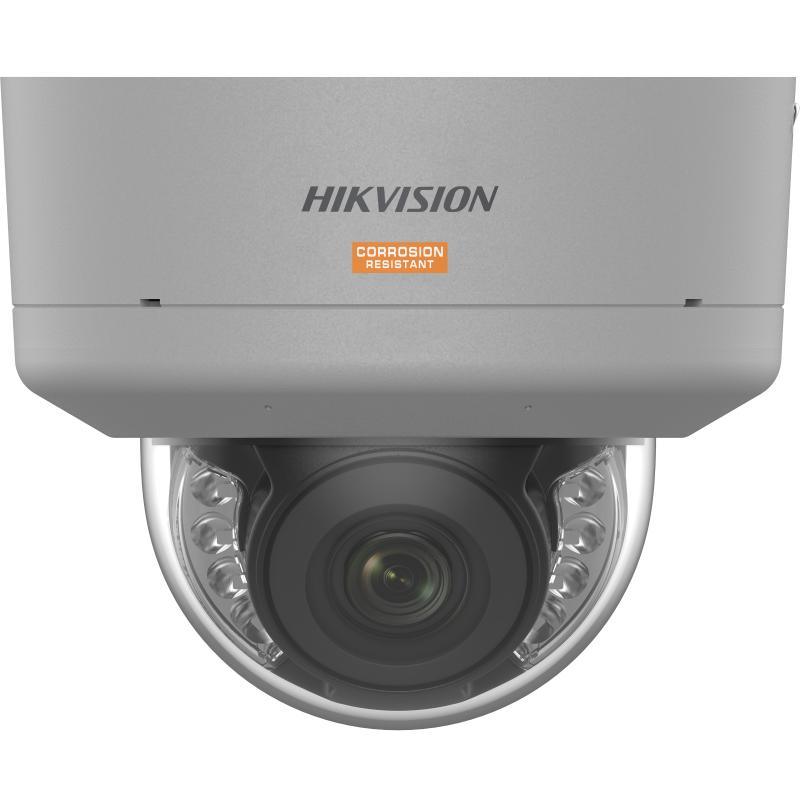

DS-2XC3186G0H-LI(S)(U) (PA)
Polymer 8MP Anti-Corrosion PTR Dome
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/1.8″ Progressive Scan CMOS
- Max. Resolution 3840 × 2160
- Min. Illumination Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Remote adjustment (Max. 1000 cycles) Pan: -175° to 175°,tilt: 0° to 85°,rotate: 0° to 350°
- Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.0
- Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
- DORI
- DORI 2.8 mm, D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm, D: 109 m, O: 43 m, R: 21 m, I: 10 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 40 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 20 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
- Target Cropping Yes
- Audio
- Audio Compression -S/-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate -S/-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate -S/-U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering -S/-U: Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
- Simultaneous Live View Up to 20 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Client iVMS-4200,Hik-Connect,Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 130 dB
- Image Enhancement BLC,HLC,3D DNR,Defog
- SNR ≥ 52 dB
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in Microphone -U: Yes, 2 built-in microphones
- Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm -S: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- RS-485 -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key Yes
- Power Output 12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection
- Linkage notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning
- Deep Learning Function
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power 12 VDC ± 25%, 1.33 A, max. 16 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 21 W
- Material Base: SMC+ 30%GF, Cover: SMC+ 30%GF
- Dimension Ø154.9 mm × 128.53 mm (Ø6.10″ × 5.06″)
- Package Dimension 206 mm × 206 mm × 230 mm (8.1″ × 8.1″ × 9.1″)
- Approx. 1280 g (2.8 lb.)
- With Package Weight Approx. 2120 g (4.7 lb.)
- General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IK10: IEC 62262:2002,IP68: IEC 60529-2013
- Anti-Corrosion Protection NEMA 4X (NEMA 250-2018),C5
