描述

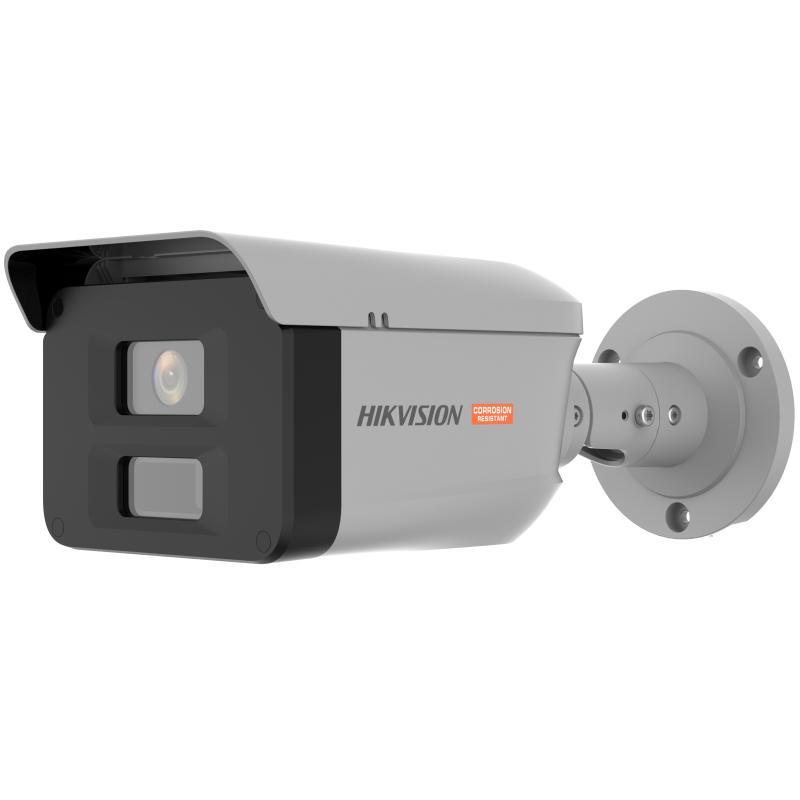

DS-2XC6047G0-L(S)(PA)
Polymer 4MP Anti-Corrosion Fixed Bullet
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/3″ Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light
- Shutter Time 1 s to 1/100,000 s
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Focal Length & FOV 2.8 mm, horizontal FOV 101.73°, vertical FOV 55.12°, diagonal FOV 120.84° 4 mm, horizontal FOV 75.79°, vertical FOV 40.84°, diagonal FOV 89.13° 6 mm, horizontal FOV 49.91°, vertical FOV 27.43°, diagonal FOV 57.82,
- Iris Type Fixed
- Aperture F1.0
- DORI
- DORI 2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m 4 mm: D: 82.0 m, O: 32.5 m, R: 16.4 m, I: 8.2 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
- Illuminator
- Supplement Light Type White Light
- Supplement Light Range Up to 40 m
- Smart Supplement Light Yes
- Video
- Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264 /H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.265 and H.264 encoding
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Target Cropping Yes
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Type Mono sound
- Network
- Simultaneous Live View Up to 20 channels
- API Open Network Video Interface, ISAPI, SDK, ISUP
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
- Wide Dynamic Range (WDR) 120 dB
- Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger (-S)
- Image Enhancement BLC,HLC,3D DNR,Defog
- Image Parameters Switch Yes
- SNR ≥ 50 dB
- Privacy Mask 8 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 100 M Ethernet port
- Audio -S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
- RS-485 -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing
- Deep Learning Function
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power DC: 9 to 36 V, 0.8 A, max. 7.2 W, PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W
- Material Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12
- Dimension 250.5 mm × 105.6 mm × 91.9 mm (9.86″ × 4.16″ × 3.62″)
- Package Dimension 315 mm × 137 mm × 141 mm (12.41″ × 5.40″ × 5.56″)
- Appox. 0.76 kg (1.68 lb.)
- With Package Weight Appox. 1.12 kg (2.47 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP68: IEC 60529-2013
- Anti-Corrosion Protection C5,NEMA 4X (NEMA 250-2018)
