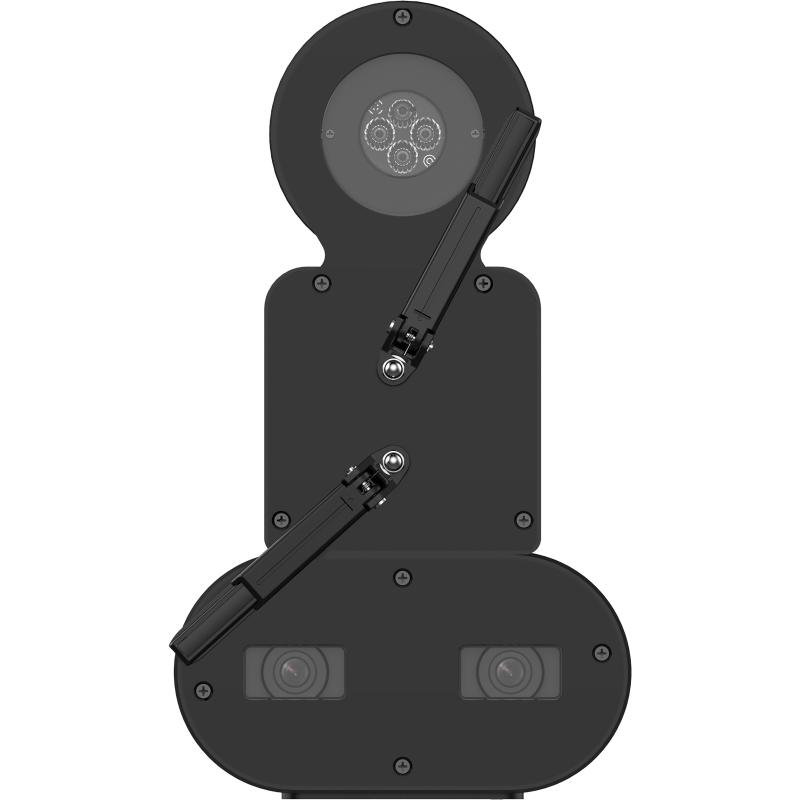

HIKVISION DS-2XC6244G1-LIR Stereo Vision 15m underwater camera

描述

DS-2XC6244G1-LIR

Stereo Vision 15m underwater camera

DS-2XC6244G1-LIR 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

規格

Camera

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.0028 Lux @ (F1.2, AGC ON),B/W: 0.0014 Lux @ (F1.2, AGC ON)
Shutter Time	1/25 s to 1/100,000 s

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 69°, vertical FOV 39°, diagonal FOV78.6°
Lens Mount	M16

Illuminator

Supplement Light Type	IR,White Light
Supplement Light Range	Turbidity (NTU) : 0 to 5, up to 2.5 m； Turbidity (NTU) : 5 to 15, up to 1.5 m； Turbidity (NTU) : ＞15, up to 0.5 m

HEOP

Open Resources	Memory: 150 MB, Smart RAM: 2700 MB, eMMC: 3200 MB
Computing Power	10 TOPS
Open Capability	HEOP 2.0 OpendevSDK Basic service, basic media capability, deep learning reasoning acceleration capability
Deep Learning Structure	Caffe,PyTorch,TensorFlow
Programming Language	C,C++

AI Open Platform

Model Specification	Supports 4 model packages. The device runs only 1 model at the same time.
Task Type	Algorithm orchestration package combining object detection and image instance segmentation. Supports image capture polling analysis.
Event Type	Region target number counting, area overlap ratio counting
Rule Setting	Up to 16 rules. The number of rules that can be added for detection is consistent with the number of detection algorithm objects. The number of rules that can be added for instance segmentation is consistent with the number of instance segmentation algorithm objects.

Video

Main Stream	50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 12.5 fps (3840 × 1080) 60 Hz: 10 fps (3840 × 1080)
Video Compression	Main stream: H.265/H.265+/H.264/H.264+, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR,VBR
Region of Interest (ROI)	8 fixed regions for main stream and sub-stream

Network

Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
API	ONVIF (Profile S, Profile G),ISAPI,SDK,Ehome
Simultaneous Live View	Up to 20 channels
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Image Stabilization	EIS
Image Enhancement	BLC,3D DNR,Defog
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
SNR	≥ 52 dB

Interface

Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm	2 inputs, 2 outputs (max. 12 VDC, 30 mA)
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key	Yes

Deep Learning Function

Fish Analytics	Support fish detection and counting with sample training

General

Power	36 VDC, 0.7 A, max. 25 W Power Supply: 15 to 36 VDC, reverse polarity protection PoE: IEEE 802.3at, Class 4
Material	PPS
Dimension	171.9 mm × 309.6 mm × 145.1 mm (6.77" × 12.19" × 5.71")
Package Dimension	1381 mm × 351 mm × 329 mm (54.37" × 13.82" × 12.95")
With Package Weight	Approx. 5430 g (11.97 lb.)
Startup and Operating Conditions	-20 °C to 40 °C (-4 °F to 104 °F)
Language	English
General Function	Heartbeat,password protection,flash log,pixel counter,anti-banding
Wiper	Yes

Approval

EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
Safety	CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11
Protection	IP68: IEC 60529-2013
