描述

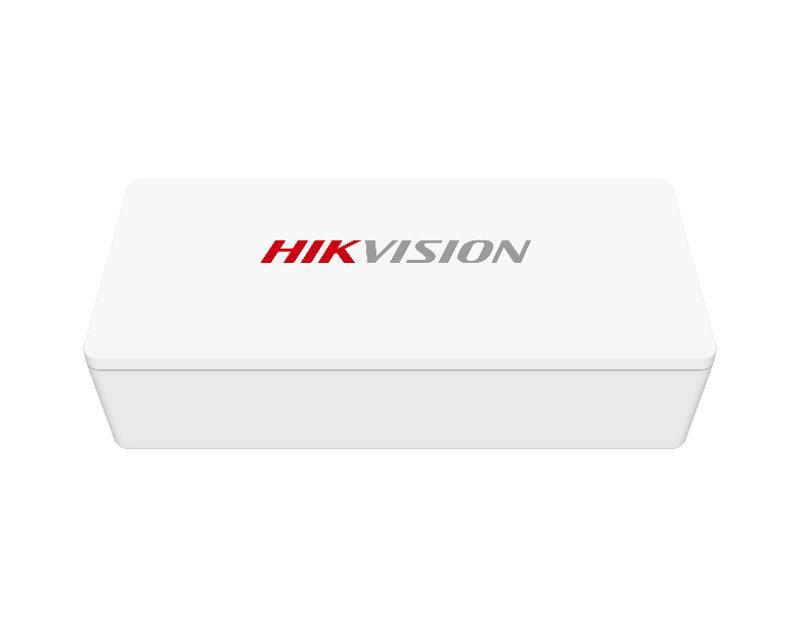

HIKVISION DS-3E0502P-E POE Injector 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。
DS-3E0502P-E
POE Injector
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- Net Weight0.26 kg (0.55 lb)
- Gross Weight0.74 kg (1.63 lb)
- Dimensions (W × H × D)132.3 mm × 33.0 mm × 60.0 mm (3.97” × 0.99” × 1.8”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Installation ModeDesk-Mounted,Wall-Mounted
- Network Parameters
- Ports1 × Gigabit PoE port,1 × Gigabit RJ45 port
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at
- PoE Power Budget30 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
