描述
HIKVISION DS-3E0505HP-E 4 Port Gigabit Unmanaged POE Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。

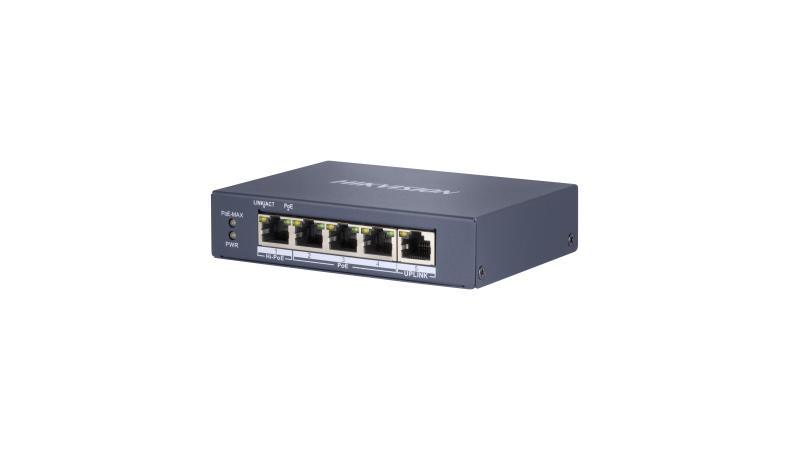

DS-3E0505HP-E
4 Port Gigabit Unmanaged POE Switch
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- ShellMetal material, fan-free design
- Net Weight0.27 kg (0.59 lb)
- Dimensions (W × H × D)121.0 mm × 88.1 mm × 27.6 mm (4.76” × 3.47” × 1.09”)
- Gross Weight0.43 kg (0.95 lb)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption in Idle5 W
- Installation ModeDesk-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports4 × Gigabit PoE port,1 × Gigabit RJ45 port
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- Dialing Function
- Long RangePorts 3 to 4: up to 300 m Long range performance may vary depend on camera model or cable condition.
- Port IsolationPorts 1 to 4: port isolation mode to improve network security.
- PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortHi-PoE: Port 1 PoE: Ports 2 to 4
- Max. Port PowerPort 1: 60 W Ports 2 to 4: 30 W
- PoE Power Budget60 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
