HIKVISION DS-3T0306HP 4 Port Fast Ethernet Unmanaged Industrial Hi-POE Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。
DS-3T0306HP

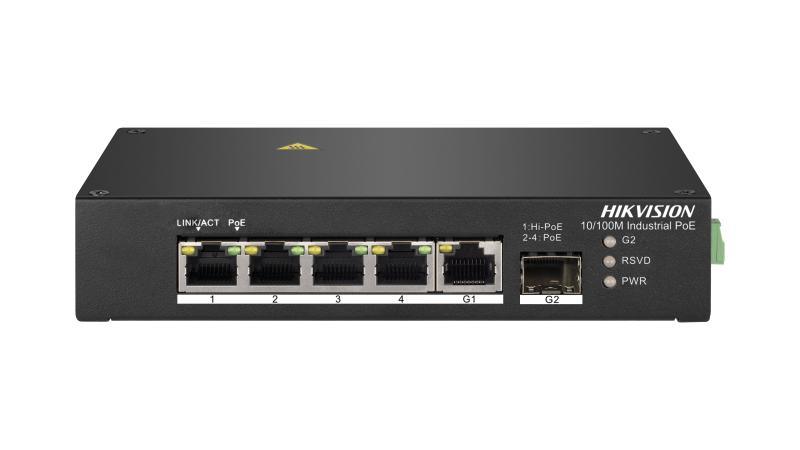

4 Port Fast Ethernet Unmanaged Industrial Hi-POE Switch
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- ShellMetal material, fan-free design
- Net Weight0.35 kg (0.77 lb)
- Gross Weight0.915 kg (2.02 lb)
- Dimensions (W × H × D)158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)
- Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48-57VDC, 2.5A
- Max. Power Consumption120 W
- Power Consumption in Idle10 W
- Installation ModeRail,Desk-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity4.8 Gbps
- Packet Forwarding Rate3.57 Mpps
- Internal Cache1 Mbits
- Dialing Function
- Long RangePorts 3 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.
- Port IsolationPorts 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortHi-PoE: Ports 1 to 1,PoE: Ports 2 to 4
- Max. Port PowerPorts 1: 90 W Ports 2 to 4: 30 W
- PoE Power Budget110 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
