描述

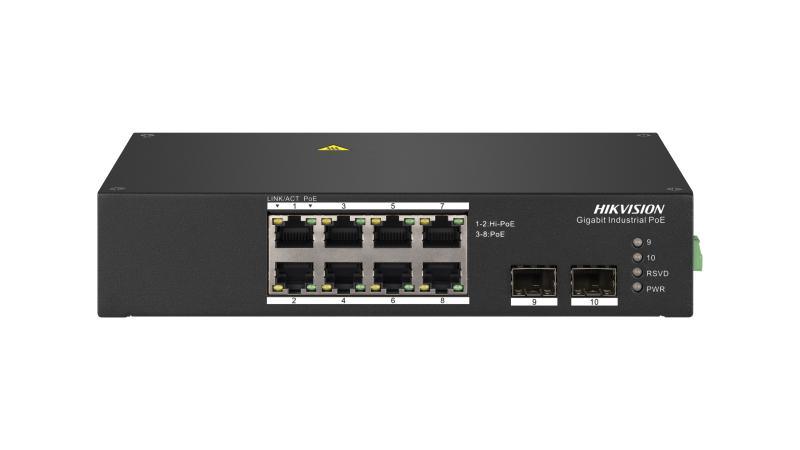

HIKVISION DS-3T0510HP 8 Port Gigabit Unmanaged Industrial Hi-POE Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。
DS-3T0510HP
8 Port Gigabit Unmanaged Industrial Hi-POE Switch
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- ShellMetal material, fan-free design
- Net Weight0.585 kg (1.29 lb)
- Gross Weight1.11 kg (2.45 lb)
- Dimensions (W × H × D)197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
- Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48-57VDC, 2.5A
- Max. Power Consumption120 W
- Power Consumption in Idle10 W
- Installation ModeDesk-Mounted,Rail
- Surge Protection6 KV
- Network Parameters
- Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Internal Cache1.5 Mbits
- Packet Forwarding Rate14.88 Mpps
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(-), 7/8(+)
- PoE PortHi-PoE: Ports 1 to 2,PoE: Ports 3 to 8
- Max. Port PowerPorts 1 to 2: 90 W Ports 3 to 8: 30 W
- PoE Power Budget110 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
