描述

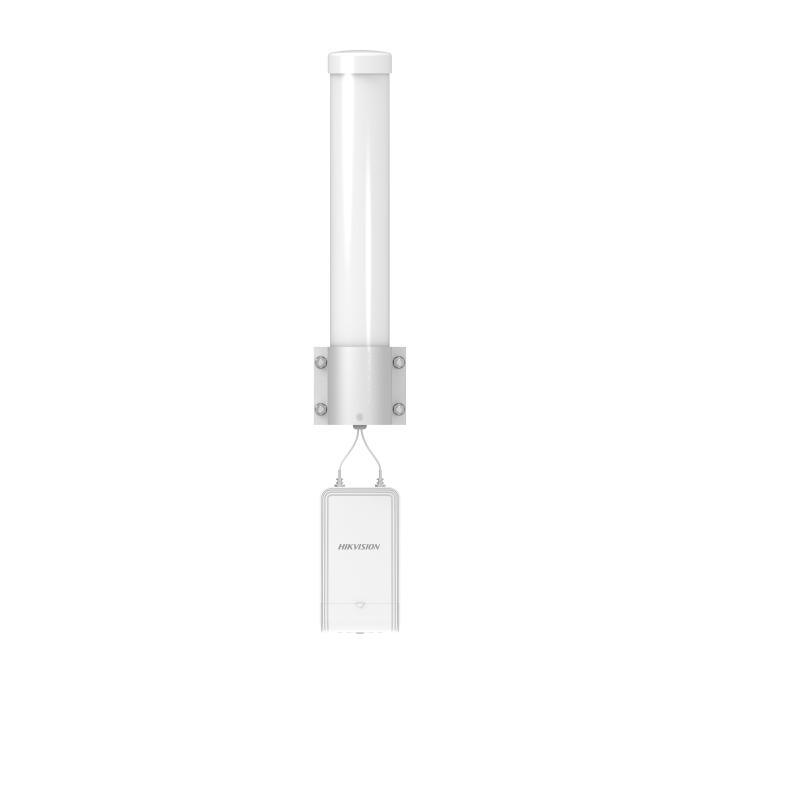

HIKVISION DS-3WF0FA-5AC/O 5Ghz 867Mbps 1KM 360° Wireless AP Bridge 是海康威視無線傳輸設備（路由器、AP、延伸器或 USB 適配器）。香港防盜為安裝商及經銷商。覆蓋以現場測試為準。
DS-3WF0FA-5AC/O
5Ghz 867Mbps 1KM 360° Wireless AP Bridge
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- Product Dimensions (W × H × D)103.6 mm × 58.3 mm × 198.4 mm (4.1” × 2.3” × 7.8”)
- Package Dimensions (W × H × D)550 mm × 238 mm × 167 mm (21.6″ × 9.3″ × 6.5″)
- Net Weight0.3 kg (0.66 lb)
- Gross Weight3.5 kg (7.71 lb)
- Packing ListWireless Bridge × 1,Power Supply Adaptor × 1,Power Cord × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Binding Tape × 2,Antenna ×1
- Packing MethodSingle unit packing
- Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
- Storage Humidity5% to 95% (no condensation)
- Installation ModePole Mounting
- Ingress ProtectionIP55
- Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
- Wireless Parameter
- Max. Transmission Rate of Air Interface≤ 867 Mbps
- Wireless StandardIEEE 802.11/a/n/ac
- Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
- Antenna Gain10 dBi
- Antenna Angle(H) Beamwidth [3 dB] 360°, (V) Beamwidth [3 dB] 8°
- Transmitting Power22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
- Receiving Sensitivity-84±2dBm@AC80-MCS0
- Throughput RatePTP: 160 Mbps/0.5 KM(AC80),160 Mbps/1 KM(AC80),PTMP(1 to 8): 110 Mbps/1 KM(AC80)
- Hardware Parameter
- Network Interface2 × 1000 Mbps RJ45 ports
- LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
- ResetHardware resetting button
- Power Supply48V PoE or PoE(802.3af) 36～57V 0.13A
- Software Function
- Application FunctionTDMA,DFS,TPC,IFM,IPM
- Channel Width20/40/80 MHz
- Channel SelectionAuto/manual selection
- Security ModeWPA2-PSK
- Security MechanismWireless network name hidden
- Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
- Management MethodHCP,Web,iVMS-4200,HPP
- System LogSyslog,Control center information
- UpgradeWeb,iVMS-4200,HCP,HPP
- HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning
- PoE Power Supply
- PoE PortLAN1 802.3af PoE IN
- PoE Distance100m
- Approval
- EMCCE-EMC(EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3)
- SafetyCB (IEC 62368-1),CE-LVD (EN 62368-1)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- RadioEN 301 893,EN 300 440,EN 301 489-3,EN 301 489-17,EN 301 489-1, EN IEC 62311
