描述
HIKVISION DS-3WR12GC-E AC1200 Gigabit Wireless Router 是海康威視無線傳輸設備（路由器、AP、延伸器或 USB 適配器）。香港防盜為安裝商及經銷商。覆蓋以現場測試為準。

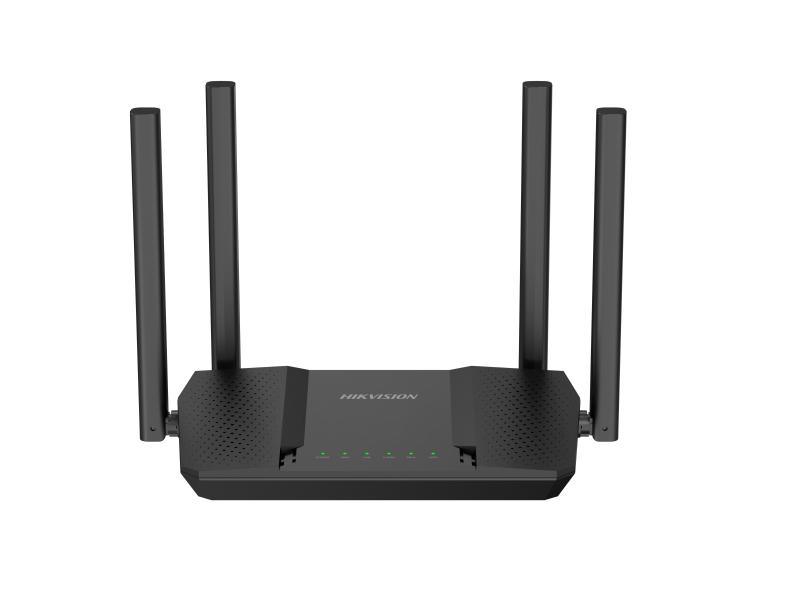

DS-3WR12GC-E
AC1200 Gigabit Wireless Router
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- Product Dimensions (W × H × D)228.5mm×128.8mm×170.8mm(With antenna size）
- Package Dimensions (W × H × D)247mm×225mm×55mm
- Net Weight0.237kg
- Gross Weight0.526kg
- Packing List1200Mbps Wi-Fi5 Router x 1 Power Supply Adaptor × 1 CAT5e Network Cable × 1 Quick Start Guide × 1 Regulatory Compliance and Safety Information ×1 Product Flyer×1
- Packing MethodSingle pack
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH non-condensing
- Storage Humidity5% to 95% RH non-condensing
- Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Installation ModeDesktop installation
- Wireless Parameter
- Max. Transmission Rate of Air Interface≤ 1200 Mbps 5GHz: 866Mbps 2.4GHz: 300Mbps
- Wireless StandardIEEE 802.11a/n/ac @5GHz IEEE 802.11b/g/n @2.4GHz
- Working Frequency Band2.4 GHz，5 GHz
- Wireless RangeUp to1080 ft²/100 m² （Recommend coverage for home use, actual Wi-Fi range varies depending on the layout and wall materials）
- Max. Connections128
- Recommended Connections40
- Transmitting PowerCE： ＜20 dBm(2.4GHz) ＜23 dBm(5GHz)
- Wireless FeaturesDual Band Supported
- Antenna Gain5 dBi
- Receiving Sensitivity5GHz: -88dBm@11AC80-MCS0 -63dBm@11AC80-MCS9 2.4GHz: -90dBm@HT40-MCS0 -71dBm@HT40-MCS7
- Antenna4 high gain antennas
- Hardware Parameter
- Network Interface1 × 10/100/1000 Mbps WAN Port 3× 10/100/1000 Mbps LAN Ports
- LED IndicatorPower WAN LAN 2.4 GHz Wi-Fi 5 GHz Wi-Fi WPS
- ButtonReset button, WPS Button
- RAM128MB DDR2
- ROM128MB ( 1G ) NAND
- Power Supply MethodPower Supply Adapter
- Power SpecificationsDC 12 V, 1 A
- Max. Power Consumption≤10 W
- Software Function
- Operating ModeRouter Mode Wireless Extender Mode Access Point Mode
- WAN ModeDHCP Static IP PPPOE
- DHCPDHCP Client List DHCP Server
- IP VersionIPv4 IPv6
- Parental ControlSpeed Limit,Custom Profiles,Filter URL,Internet Access Period,Parental Control
- FirewallForbid TCP SYNC flood attack,Forbid ICMP flood attack
- DDNSOray, No-IP,DynDNS
- NAT ForwardingPort Mapping DMZ UPnP
- OthersVLAN/IPTV,IGMP,Quick Diagnosis,WIFI Optimization,Ping/Tracert
- Security ModeWPA2-PSK,WPA/WPA2-PSK supported
- Management MethodWeb Control: PC, mobile App Control: HPP, HC TR069(TR098/TR181)
- Security MechanismSupport fast and secure WPS connection Support hiding wireless network name Support controlling terminal network connection Support firewalls Login Authentication VPN Client Port Mapping DMZ UPNP
- UpgradeWeb Upgarde App Cloud Upgrade Auto Upgrade
- System LogSystem log
- VPNPPTP Server,L2TP Server,L2TP Client,PPTP Client,OpenVPN Server,OpenVPN Client
- Roaming802.11k/v
