描述

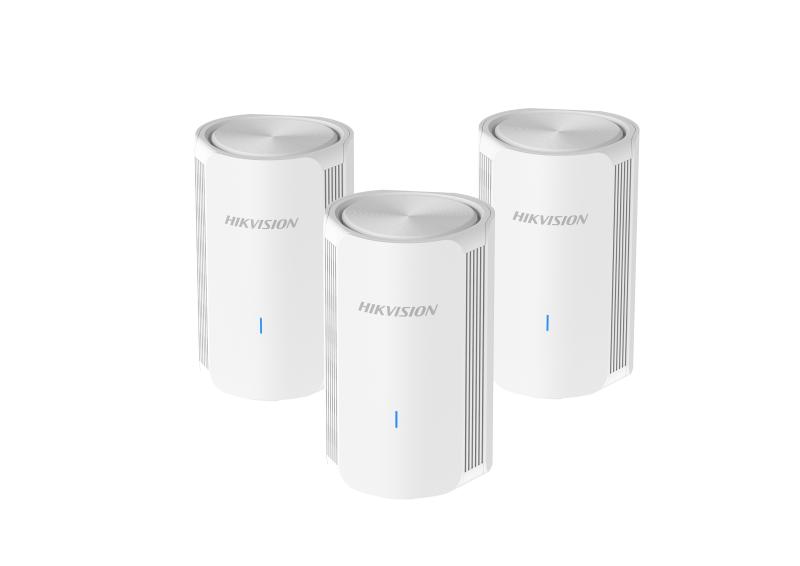

DS-3WRM12GC/3
AC1200 Gigabit Mesh Wi-Fi System
DS-3WRM12GC/3 屬海康威視網絡傳輸產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
規格
General
| Product Dimensions (W × H × D) | 97.58mmx96.26mmx155.19mm |
|---|---|
| Package Dimensions (W × H × D) | 438mm×128mm×169mm |
| Net Weight | 1.14kg |
| Gross Weight | 1.84kg |
| Packing List | 1200Mbps Wi-Fi5 Router x 3 Power Supply Adaptor × 3 CAT5e Network Cable × 3 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1 Product Flyer×1 |
| Packing Method | 3 pack |
| Working Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 95% RH non-condensing |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Installation Mode | Desk-Mounted |
Wireless Parameter
| Wireless Standard | IEEE 802.11a/n/ac @5GHz IEEE 802.11b/g/n @2.4GHz |
|---|---|
| Working Frequency Band | 2.4 GHz，5 GHz |
| Wireless Range | up to 3400 ft²/310㎡（Recommend coverage for home use, actual Wi-Fi range varies depending on the layout and wall materials） |
| Max. Connections | 384 |
| Recommended Connections | 1 pack：40 2 pack：80 3 pack：120 |
| Transmitting Power | CE： ＜20 dBm(2.4GHz) ＜23 dBm(5GHz) |
| Wireless Features | Dual Band Supported |
| Antenna | 4 high gain antennas |
| Antenna Gain | 5 dBi |
| Receiving Sensitivity | 5GHz: -88dBm@11AC80-MCS0 -64dBm@11AC80-MCS9 2.4GHz: -89.5dBm@HT40-MCS0 -70.5dBm@HT40-MCS7 |
| Max. Wi-Fi Speed | ≤ 1200 Mbps 5GHz: 866Mbps 2.4GHz: 300Mbps |
Hardware Parameter
| Network Interface | 1 × 10/100/1000 Mbps WAN Port 2× 10/100/1000 Mbps LAN Ports |
|---|---|
| LED Indicator | Red/blue /yellow for different working states, flashing mode |
| Button | Reset button, WPS/MESH Button |
| RAM | 128MB DDR2 |
| ROM | 128MB NAND |
| Power Supply Method | Power Supply Adapter |
| Power Specifications | DC 12 V, 1 A |
| Max. Power Consumption | ≤12 W |
Software Function
| Operating Mode | Router Mode Wireless Extender Mode Access Point Mode |
|---|---|
| WAN Mode | DHCP Static IP PPPOE |
| DHCP | DHCP Client List DHCP Server |
| IP Version | IPv4 IPv6 |
| Parental Control | Speed Limit,Internet Access Period,Filter URL,Parental Control,Custom Profiles |
| Firewall | Forbid TCP SYNC flood attack Forbid ICMP flood attack |
| DDNS | Oray, No-IP,DynDNS |
| VPN | PPTP Server,L2TP Server,PPTP Client,L2TP Client,OpenVPN Server,OpenVPN Client |
| NAT Forwarding | Port Mapping DMZ UPnP |
| Others | VLAN/IPTV,IGMP,Quick Diagnosis,WIFI Optimization,Ping/Tracert |
| MESH | Hikvision Mesh |
| Security Mode | WPA2-PSK,WPA/WPA2-PSK supported |
| Security Mechanism | Support fast and secure WPS connection Support hiding wireless network name Support controlling terminal network connection Support firewalls Login Authentication |
| Management Method | Web Control: PC, mobile App Control: HPP, HC TR069(TR098/TR181) |
| Upgrade | Web Upgarde App Cloud Upgrade Auto Upgrade |
| System Log | System log |
| Roaming | 802.11k/v |
