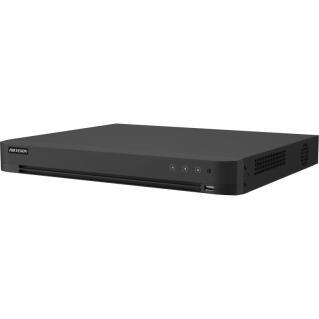

HIKVISION DS-7232HQHI-S2/XT 32-ch HQ 1U H.265 PowerX DVR

查詢價錢

32-ch HQ 1U H.265 PowerX DVR

32-ch Analog video inputs, Encoding ability up to 3K/5MP Lite@12fps
32-ch Guanlan AI Encoding for saving recording storage effectively
Support 4-ch Facial Recognition or 16-ch Perimeter Protection based on Deep Learning algorithm
Support 32-ch AcuSearch, helping users quickly find target in recordings
Support All channels Motion Detection Technology
Up to 40 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
Support 32-ch HDTVI Two-Way Audio via BNC

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

描述

DS-7232HQHI-S2/XT

32-ch HQ 1U H.265 PowerX DVR

HDTVI Input3K(3328 x 1504)@20 fps, 3K(2960 x 1664)@25/20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 2K(2304 x 1296)@20 fps, 1080P@25/30 fps, 720P@25/30 fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps HDCVI Input 3K(2880 × 1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps CVBS Input PAL/NT
Audio Output1-ch RCA
Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ) ; 16-ch coaxial audio via BNC
Two-Way Audio32-ch two-way audio via BNC , Support two-way audio from DVR local, web and Hik -Connect to analog camera; Use the first RCA audio input if the two -way audio from DVR local to analog camera Synchronous Playback Up to 16-ch Video Output 1-ch HDMI, 4K (3840 × 2160)/30Hz , 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz; 1-ch VGA, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×

Video CompressionAI Encoding/H.265/H.264 Video Bitrate 32 Kbps to 6 Mbps Dual -Stream Support main stream or sub stream
Stream TypeVideo, Video & Audio
Audio CompressionG.711u Audio Bitrate 64 Kbps

Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP API ONVIF (profile S/G), SDK, ISAPI ，ISUP Compatible Browser IE, Chrome, Firefox, Safari, Edge Ports

SATA2 SATA interface, up to 12 TB capacity for each disk Serial Interface 1 RS-485 (half -duplex)
CapacityMain stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 5 MP stream access: 5 MP lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 2K stream access: 2K@10 fps; 1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 4 MP stream access: 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/OutN/A (optional to support) HDMI 1-ch VGA 1-ch Audio In 1-ch (up to 16-ch is optional) RCA (2.0 Vp-p, 1 KΩ) ； 16-ch via coaxial cable Audio Out 1-ch, RCA (Linear, 1 KΩ) Network Port 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity10% to 90% Installation Desktop Net
Weight< 3.0 kg Gross Weight < 4.5 kg Product Dimensions 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch) Packaging Dimensions 435 × 387 × 129 mm (17.1 × 15.2 × 5.0 inch) Packaging Method A pack of four Packing List DVR *1 Quick Start Guide *1 Adapter and Power cable*1 Mouse *1 SATA Power cable *1 SATA Data cable *2 Power cable*1 Several Screws

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。官方規格書 PDF
