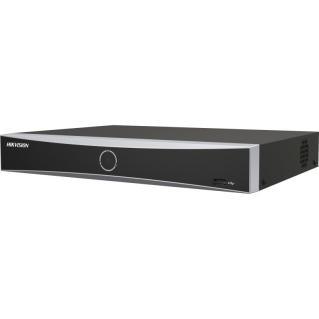

HIKVISION DS-7604NXI-K1 4-ch 1U K Series AcuSense 4K NVR

Video And Audio

• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI1/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4-ch
• Decoding CapabilityAI on: 1-ch@8 MP (30 fps)/2-ch@4 MP (30 fps)/4-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/OutN/A (4/1 is optional) General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, C roatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazili

General

• Power Supply12 VDC, 1.5 A
• Consumption≤ 10 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
• Weight≤1 kg (without HDD, 2.2 lb.)

Certification

• Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS *Note: *Alarm in/out can be optional for certain models. If you select a device model with “/Alarm4+1”, then the device will have 4 alarm inputs and 1 alarm outputs.  Function Smart Function 1-ch video analysis for human and vehicle recognition to reduce false alarm Smart search for the selected area in the video, and smart playback
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017
