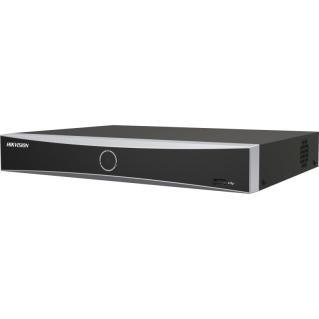

HIKVISION DS-7604NXI-K1/4P(D) 4-ch PoE 1U K Series AcuSense 4K NVR

Video And Audio

• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• Video Output ModeHDMI/VGA independent output
• HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• CVBS OutputN/A
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4-ch
• Decoding CapabilityAI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• PoE Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3af/at
• PoE Budget≤ 50 W

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 16 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/OutGUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

General

• Power Supply48 VDC, 1.35 A
• Consumption≤ 10 W (without HDD and PoE off)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
• Weight≤ 1 kg (without HDD, 2.2 lb.)

Certification

• Obtained CertificationCE KC WEEE REACH ROHS BIS CB RCM IC LOA UKCA *Note: *Alarm in/out can be optional for certain models. If you select a device model with “/Alarm4+1”, then the device will have 4 alarm inputs and 1 alarm outputs.
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
